Description

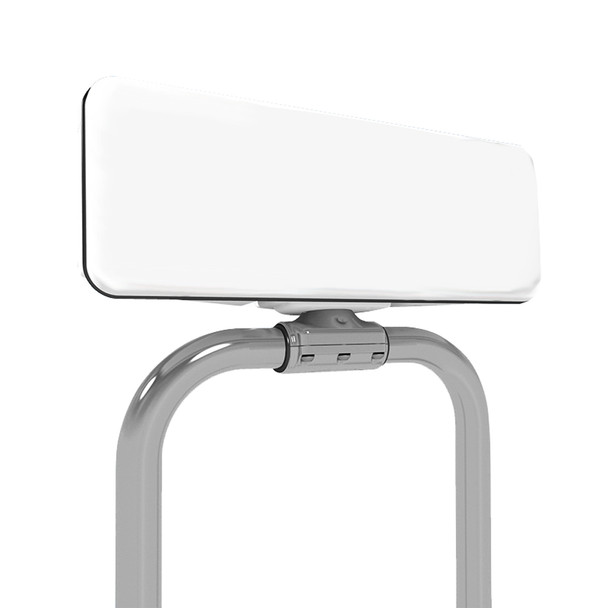

SP5S1 - Uncut Rail Pod
Max Useable Face: (14.75" x 5")
Max Cut Out Area: (13.875" x 4.125")
Seaview offers a solution to the age old problem of figuring out where to mount all your instruments on your sailboat. The Seaview Rail Pod allows you to mount smaller displays and instruments directly to the rail. Allowing you to postion the instrument where it is most optimal for you. Fits onto 1", 1-1/8" or 1-1/4" rails. A single high polished 316 stainless steel clamp is used. Cables are routed internally through the clamp and into the rail. The Rail Pod housing is made from UV protected ABS plastic housing, and sealed with a water tight rubber gasket. Tamper resistant screws are used to hold the housing together. A reinforced base made from King Starboard is added for increased strength and stability (on certain models).
Stainless Steel Clamp
A single high polished stainless steel clamp is used to secure your Rail POD onto 1", 1.125" and 1.25" (25mm to 32mm) rails. Seaview Rail Pods fit standard 9.5", 12" and non standard guard rails.
Security screws are used to hold the Rail Pod together. A water tight gasket is used to prevent water from entering inside the pod, while a GORE-TEX ventilation vent lets hot air to escape without letting water in.
Optional Accessory Pod
One of the unique abilities with this SPOD is the ability to add optional side pods. Currently no other sailboat pod on the market has this feature. Depending on the pod box size you choose you are able to mount either one to four of these accessory pods. This gives the customer lots of flexible solutions to optimize their setup. The SP1BOX is made of UV resistant white ABS plastic and held together with tamper resistant screws and sealed with a rubber gasket.
The Seaview SP5S1 Rail Pod offers a versatile mounting solution for small displays and instruments on sailboats. Designed to attach securely to 1-inch, 1-1/8-inch, or 1-1/4-inch rails, this product provides an optimal positioning for your navigation and instrumentation equipment. The uncut face measures approximately 14.75 inches by 5 inches, accommodating a variety of devices, with a maximum cutout area of about 13.875 inches by 4.125 inches. Crafted from UV-protected ABS plastic and sealed with a water-tight gasket, the housing ensures durability and protection against harsh marine conditions. The high-polished 316 stainless steel clamp not only secures the pod firmly to the rail but also routes cables internally for a clean installation. Tamper-resistant screws enhance security, preventing unauthorized access. The reinforced base made from King Starboard adds stability and strength, making this pod suitable for demanding environments. The inclusion of a GORE-TEX ventilation vent allows hot air to escape while preventing water ingress, maintaining internal device integrity. The SP5S1 Rail Pod also features an innovative design that supports optional side accessory pods, enabling users to customize their setup with up to four additional pods, which are made from UV-resistant ABS plastic and sealed with rubber gaskets. This flexibility makes the Seaview Rail Pod an excellent choice for sailors seeking a reliable, adaptable instrument mounting solution that maximizes space and ensures secure, protected device placement on their vessel.
Features:
- Compatible with 1", 1-1/8", and 1-1/4" rails for versatile installation
- UV-protected ABS plastic housing with water-tight gasket for durability
- High-polished stainless steel clamp with internal cable routing for clean setup
- Tamper-resistant screws enhance security and theft prevention
- Reinforced base made from King Starboard provides increased strength and stability
- GORE-TEX vent prevents water entry while allowing hot air escape
- Supports optional side accessory pods for customizable configurations
- Designed to fit standard 9.5", 12", and non-standard guard rails
