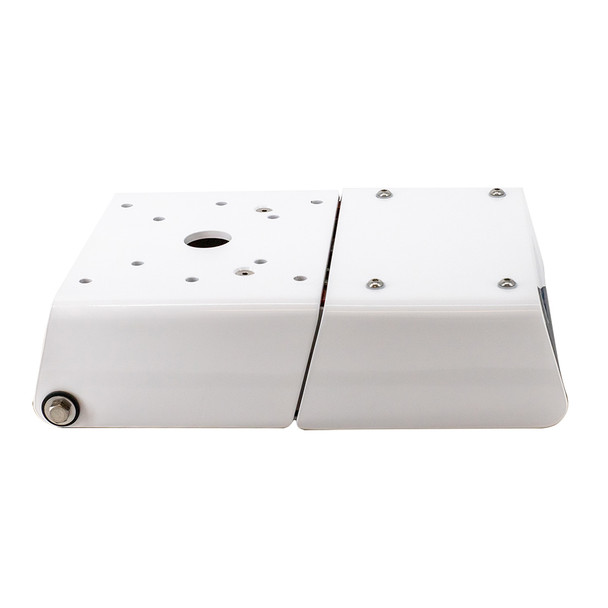

Seaview SVEHB1 Electrically Actuated Hinge for Marine Electronics Mounts

Electrically Actuated Hinge 24V Fits Seaview Mounts Ending in M1 M2

The Seaview SVEHB1 electrically actuated hinge will fit all Seaview mounts with 7"x7" and 10"x10" mounting base plates. Some electronics can also be mounted directly to the hinge plates when needed (contact Seaview to direct mount electronics). Professionally designed to raise and lower marine electronics with the push of a button. This single electrically actuated hinge will accommodate single small Seaview mounts up to large dual mounts fully loaded with marine electronics. This hinge is 5-9/16" tall x 13" wide x 20-1/2" long. This will hinge approximately 93 degrees leaving the hinge plate vertical off the mounting surface about 11-7/16".

This Seaview hinge is marine grade aluminum expertly fabricated for consistently superior welds. The actuator used is 24V however, 12V is an option with a conversion kit. The 24V actuator has a current draw of 10.4 amps on startup and when it is fully loaded with 2248 pound-force. The hinge has a very durable finish unlike anything else in the industry. This is first chem treated (for corrosion resistance), then an epoxy polyester primer coat is applied and finished with a polyester powder coat for a superior gloss white finish. There are two waterproof cable glands inside the hinge for water proof cable routing. This also has a removable lid to conveniently service the inside of the hinge if needed.

This actuated hinge has been used for many applications. Some examples, but not limited to are: Princess 66, Navetta 48, Sunseeker 52 66, Absolute 58, Sabre 45, Jupiter 27 and HCB Yacht 65CC.

Features:

• Electrically Actuated Hinge


• Volt: 24V


• Fits Seaview Mounts ending M1 and M2

The Seaview SVEHB1 electrically actuated hinge is designed for seamless elevation control of marine electronics mounts. Compatible with all Seaview mounts featuring 7"x7" and 10"x10" base plates, this hinge offers reliable operation with a simple push of a button, providing smooth raising and lowering of your electronics. Its robust construction supports single small mounts up to large dual setups fully loaded with marine electronics, making it a versatile choice for various vessel configurations. The hinge measures approximately 5-9/16" tall, 13" wide, and 20-1/2" long, with a rotation of about 93 degrees, leaving the hinge plate vertically aligned about 11-7/16" off the mounting surface. The design ensures the electronics can be easily accessed or concealed as needed, enhancing both functionality and aesthetics onboard.

Features:

• Electrically actuated hinge for precise control of marine electronics mounts

• Operates on 24V DC with an optional 12V conversion kit available

• Universal fit for Seaview mounts ending in M1 and M2, accommodating various sizes and configurations
