Shockwave Seats S5-AL Suspension Base - White for Marine and Recreational Boats

S5-AL Suspension Base - White

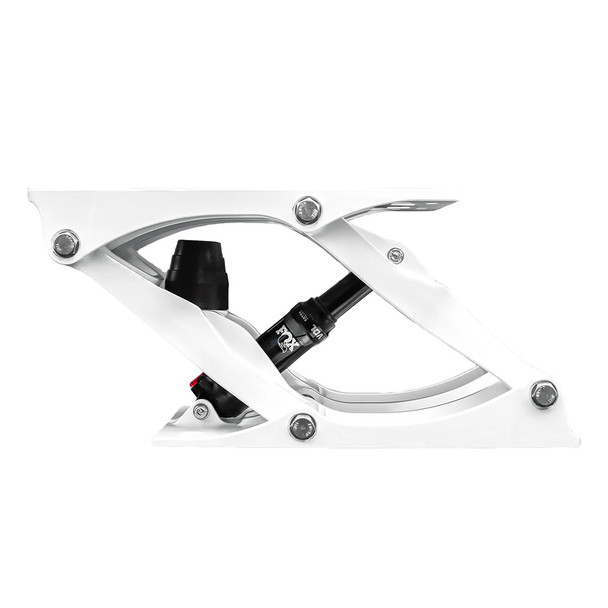

The Shockwave S5-AL suspension base (formerly the S5 Sentinel) provides comfort and safety to boaters, offering them an experience theyve never had before. It offers a smoother, safer, and more comfortable ride, protecting occupants from the shock of wave impact. Recreational boaters can stay out longer and travel farther with less fatigue. Made from anodized A360 cast aluminum that has been powder-coated and fitted with 316 stainless steel hardware, the S5-AL suspension base utilizes a four-link forward action suspension design.

Fitted with a FOX Rhythm air-sprung shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact.

A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada


• Custom-tuned and valved marine FOX Rhythm air spring and shock with adjustable rebound


• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts


• 4-Link Forward Action


• Anodized A360 Cast Aluminum, 316 SS Hardware, Powder Coated


• Minimal parts count and simple construction


• Easy to mount and adapt to the current seating

Vessel Application:

The S5-AL suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-AL can be fitted to almost any boat and any seat.

The Shockwave Seats S5-AL suspension base (Part Number: SW-07823-W) delivers enhanced comfort and safety for boaters on various vessels. Crafted from durable anodized A360 cast aluminum and finished with a powder coating, this suspension base features 316 stainless steel hardware for corrosion resistance. Its four-link forward action suspension design effectively absorbs wave impacts, providing a smoother and more comfortable ride. Equipped with a FOX Rhythm air-sprung shock with adjustable rebound, it offers 4-inch vertical and 1.5-inch forward suspension travel, reducing deceleration impacts from waves. This design allows boaters to extend their trips with less fatigue and increased safety, making it ideal for fishing boats, coastal cruisers, ski/wake boats, guide boats, and yacht tenders. The suspension base is straightforward to install and compatible with most existing seating configurations, thanks to its minimal parts count and simple construction. A shock pump with a pressure gauge is included at no extra cost, enabling easy adjustments for personalized comfort and performance. Whether for recreational or professional use, the Shockwave S5-AL suspension base is engineered to improve ride quality and occupant safety in a variety of marine environments.

Features:

• Designed and manufactured in Canada

• Custom-tuned and valved marine FOX Rhythm air spring and shock with adjustable rebound

• Surge protection with 4-inch vertical and 1.5-inch forward suspension travel to mitigate wave impact deceleration

• Four-link forward action suspension design

• Constructed from anodized A360 cast aluminum with 316 stainless steel hardware and powder-coated finish

• Minimal parts count for simple installation and maintenance

• Easy to mount and adaptable to most boat seats
