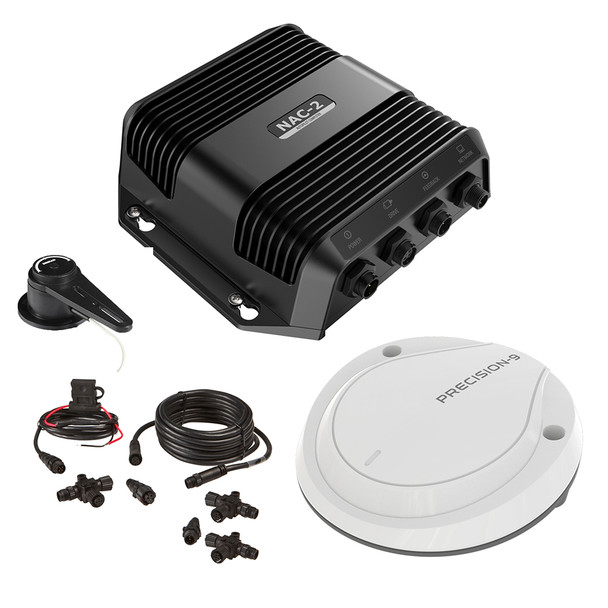

Simrad NAC-2 Autopilot Core Pack with RF25N and NMEA 2000 Starter Kit

NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N network.

RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Specifications:

• Operating temperature: -25C to +55C (13F to 131F)




• Protection: Splashproof, IPx5




• Weight: 0.6 kg (1.3 lbs)




• Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm




• Power supply: 9-31.2 V DC




• Load: 140 mA + drive unit load




• Performance: Drive: 8 A cont., 16A for 1s




• Network: 1xMicroC (NMEA2000)




• Feedback: Variable voltage/resistive 0-5V




• Drive output: To PUMP-1 or HELM-1




• Power supply: 9-31.2 V DC




• Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA




• Clutch: 12/24V DC, min 10mA, max 3A

The Simrad NAC-2 Autopilot Core Pack is an advanced navigation solution designed for reliable and precise vessel control. This comprehensive package includes the NAC-2 autopilot controller, the RF25N Rudder Feedback Unit with a 16.5-foot NMEA 2000 Micro-C cable, and a complete NMEA 2000 Micro-C network starter kit. Engineered for durability, the components feature splashproof protection (IPx5) and operate effectively across a wide temperature range, making it suitable for diverse marine environments. The NAC-2 core pack offers robust performance with a drive capacity of up to 8 amps continuously and 16 amps for brief surges, ensuring responsive steering and navigation control. The system supports power supply voltages from 9 to 31.2 volts DC, providing flexibility for different vessel power configurations. The feedback mechanism utilizes variable voltage or resistive signals within a 0-5V range, allowing seamless integration with your existing marine electronics. The drive outputs connect directly to your boat’s pumps or helm systems, streamlining installation and operation. The RF25N Rudder Feedback Unit transmits vital rudder position data via the NMEA 2000 network, ensuring precise autopilot responses and enhanced navigational accuracy. The starter kit includes all necessary cables, T-connectors, and network terminators, simplifying setup and ensuring a reliable network backbone. Whether upgrading an existing system or installing a new autopilot, this package combines quality components with easy-to-follow installation options. For comprehensive installation instructions and detailed specifications, refer to the official owner’s manual available online. Designed for enduring marine conditions, the Simrad NAC-2 Autopilot Core Pack ensures dependable vessel control and navigation capability in a compact and versatile package.

Features:

• Includes NAC-2 autopilot controller and RF25N Rudder Feedback Unit with 16.5-foot NMEA 2000 Micro-C cable

• NMEA 2000 Micro-C Starter Kit with network power cable, 4.5-meter N2K cable, T-connectors, and network terminators

• Splashproof design with IPx5 protection for marine environments

• Operates across a wide temperature range from -25°C to +55°C (-13°F to 131°F)

• Supports power supply voltages from 9 to 31.2V DC for flexible installation

• High drive capacity with 8A continuous and 16A surge performance for reliable steering control

• Feedback input range of 0-5V for accurate rudder position sensing

• Drive outputs compatible with PUMP-1 or HELM-1 systems for versatile control options

• Compact dimensions suitable for space-constrained installations

• Easy-to-install network components facilitate quick setup and reliable communication
