Description

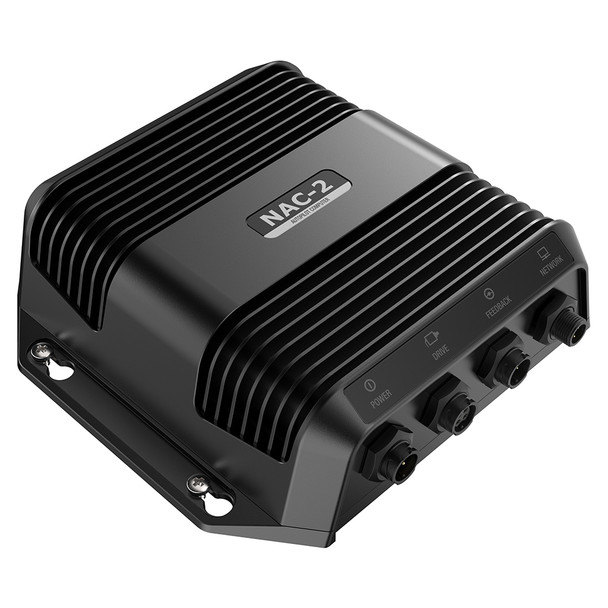

NAC-2 Low Current Course Computer
The NAC-2 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (8 Amps continuous/16 Amps peak).
Features:
- Reliable autopilot performance based on Simrad Continuum steering technology
- Recommended for boats up to 10M (33') in length
- Output of 8 Amps continuous, 16 Amps peak
- Clutch output (3 Amps maximum)
- Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
- Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
- Supports Simrad RF25 rudder feedback units
- Plug-and-play connectors for easy installation
- NMEA 2000 connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
The Simrad NAC-2 Low Current Course Computer is a vital component designed to enhance your boat's autopilot capabilities. Built for vessels up to 33 feet in length, it provides reliable control for hydraulic steering pumps, mechanical drives, and solenoid valves with low current requirements. The unit features advanced Simrad Continuum steering technology that ensures smooth and precise autopilot performance, making it suitable for a variety of small to medium-sized boats. Its output capacity includes 8 amps continuous current with peaks up to 16 amps, accommodating most low-current drive systems with ease. The NAC-2 also offers a clutch output for engaging or disengaging the autopilot, with a maximum of 3 amps, providing flexible control options for your steering setup.
Features:
- Reliable autopilot performance based on Simrad Continuum steering technology
- Designed for boats up to 33 feet in length
- Output capacity of 8 amps continuous, 16 amps peak
- Clutch output with a maximum of 3 amps
- Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
- Virtual rudder feedback for simplified installation on outboard and sterndrive boats
- Supports Simrad RF25 rudder feedback units
- Plug-and-play connectors for straightforward installation
- NMEA 2000 connectivity for heading sensors, rudder feedbacks, autopilot controllers, and multifunction displays
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/62230OM.pdf |
