Description

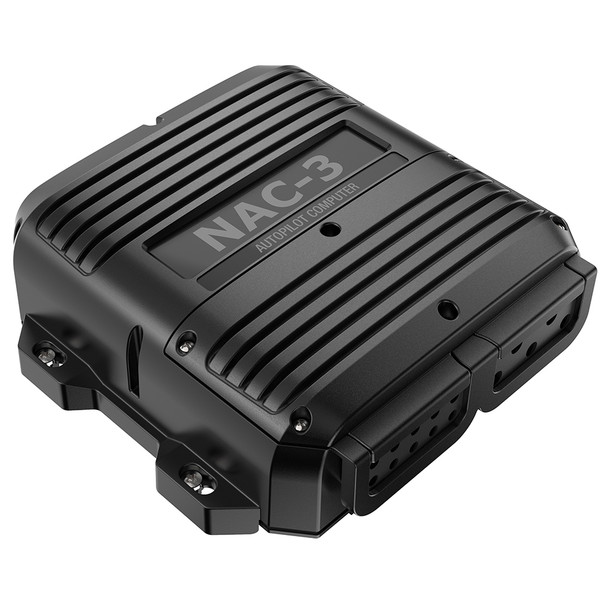

NAC-3 High Current Course Computer
The NAC-3 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 Amps continuous/50 Amps peak).
Features:
- Reliable autopilot performance based on Simrad Continuum steering technology
- Recommended for boats above 10M (33') in length
- High-current output of 30 Amps continuous, 50 Amps peak
- Clutch output (3 Amps maximum)
- Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
- Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
- Supports Simrad RF25 and RF300 rudder feedback units
- NMEA 2000 connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
- NMEA 0183 input
The Simrad NAC-3 High Current Course Computer is a vital component for advanced autopilot functionality on boats measuring 33 feet (10 meters) or longer. Designed to handle high-current loads, it provides reliable control for hydraulic steering pumps, mechanical drive units, and solenoid valves, delivering continuous output of up to 30 Amps and peak currents of 50 Amps. Its robust electronics ensure precise navigation and steering, integrating seamlessly with other system components for optimal performance. The NAC-3 is suitable for both inboard and outboard configurations, simplifying installation with virtual rudder feedback options compatible with RF25 and RF300 feedback units. Its NMEA 2000 and NMEA 0183 interfaces facilitate connectivity with heading sensors, rudder feedback devices, autopilot controllers, and multifunction displays, making it an ideal choice for large vessel autopilot systems. This high-current course computer supports reliable, consistent autopilot operation crucial for safe and efficient marine navigation. Designed to meet the demands of sizable boats, the NAC-3 enhances your vessel's steering precision with proven Simrad technology, ensuring smooth and responsive autopilot control in various marine environments.
Features:
- Reliable autopilot performance based on Simrad Continuum steering technology
- Recommended for boats above 10 meters (33 feet) in length
- High-current output: 30 Amps continuous, 50 Amps peak
- Clutch output: 3 Amps maximum
- Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
- Virtual rudder feedback for simplified installation on outboard and sterndrive boats
- Supports Simrad RF25 and RF300 rudder feedback units
- NMEA 2000 connectivity to heading sensors, rudder feedback units, autopilot controllers, and multifunction displays
- NMEA 0183 input for additional system integration
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/62231OM.pdf |
