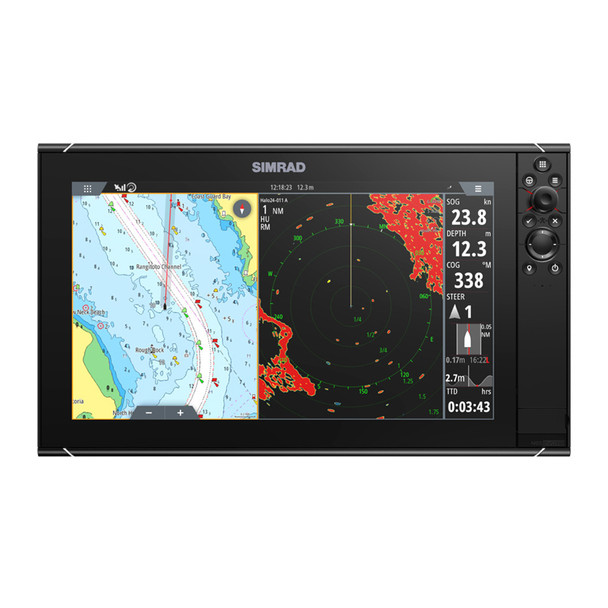

Simrad NSS16 evo3S Multi-Function Chartplotter and Fishfinder MFD with Advanced Sonar and Connectivity

NSS16 evo3S Multi-Function Chartplotter/Fishfinder

Improved Charting experience with the iMX8 processor

With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP Reveal layer of the ocean floor in Florida.

In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics, CMOR and Florida Marine Tracks.

Enhanced Sonar with superior on-water performance

1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.

Better-than-ever processing power ensures Active Imaging delivers picture-like views of fish-holding structure, and crystal clear views of the bottom ahead using ForwardScan sonar.

SolarMAX IPS displays for high-definition views

Clear views under any lighting condition with SolarMAX IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.

These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.

UI improvements

• A dark-themed wallpaper for less light pollution from a dash of multiple screens.


• The Audio side bar can now expand into a full page view.


• The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.


• The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page

Wireless connectivity for smartphones and tablets

Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.

The Simrad App can also be downloaded for added benefits from device registration and manual downloads, to saving waypoints and your favorite fishing spots accessible both on and off the water.

Radar Options

HALO Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls and even locate flocks of feeding birds in order to locate fishing spots.

FLIR IP Camera Support

Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360 degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from a NSSevo3S.

WM-4 Receiver

Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species and more, when you complete your boats system with a WM-4 Receiver and a SiriusXM Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM radio channels at a discount.

Fast Simple Networkingand Connectivity

Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems and much more.

Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deep water S5100, Active Imaging 3-in-1 or TotalScan, increased situational awareness with legendary HALO Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.

In The Box:

• Display Unit


• Bezel Trim


• Documentation pack


• Power cable kit


• Panel mounting kit

Connections:

• Ethernet - 2x Ethernet network


• Power - power, power control, and external alarm


• Video- composite video and NMEA0183


• NMEA 2000 - NMEA 2000 data


• Sonar CH1


• Sonar CH2


• HDMI - HDMI video output


• USB connector - mouse, keyboard or mass storage

The Simrad NSS16 evo3S is a versatile multi-function display designed for serious anglers and boaters seeking superior navigation and fishfinding capabilities. Powered by the latest iMX8 processor, this unit offers twice the speed for quicker page loads and seamless switching between split-screen views, including 3D and navigation perspectives. It comes preloaded with a high-resolution US chart featuring inland and coastal coverage, along with a C-MAP Reveal layer that displays the ocean floor around Florida. Moreover, the NSS16 evo3S supports a variety of charting providers such as C-MAP, Navionics, CMOR, and Florida Marine Tracks, ensuring broad compatibility for customized navigation needs.

Equipped with a 1kW CHIRP-enabled sonar, this system delivers exceptional bottom-tracking and fish-finding performance, capable of detecting fish and structures with remarkable clarity. Dual transducer ports allow users to connect multiple transducers for versatile on-water applications. Active Imaging technology provides detailed, picture-like views of fish-holding structures and the bottom structure ahead using ForwardScan sonar, greatly enhancing on-water situational awareness. The SolarMAX IPS display technology ensures high-definition visuals with wide viewing angles regardless of lighting conditions, including direct sunlight, and features an optical bonding process to prevent fogging and condensation.

User interface enhancements include a customizable dark-themed wallpaper to reduce light pollution, an expandable audio sidebar for quick access to sound controls, and a chart orientation button for instant switching between North up, Heading up, and Course up modes. Additionally, a Tide Graph is integrated into the instrument bar, allowing users to monitor tidal changes without leaving their current screen. Wireless connectivity features enable mirroring displays to compatible iOS and Android devices, providing remote access to charts, radar, sonar, and engine data. Firmware updates and software features can be accessed via internet hotspots, with the Simrad App offering additional functionalities like waypoint saving and device registration.

Optional accessories such as HALO pulse compression radar systems and FLIR M232 thermal imaging cameras can be integrated to expand the system’s capabilities. The radar assists in navigating crowded areas, poor visibility conditions, and weather monitoring, while the thermal camera enhances day and night situational awareness with pan-and-tilt control and Ethernet video distribution. The WM-4 Weather Receiver, coupled with a SiriusXM Marine Satellite Weather subscription, delivers real-time weather forecasts, radar, storm warnings, and sea surface data, boosting safety and decision-making on the water.

Designed for easy networking, the NSS16 evo3S supports industry-standard connections for multi-display setups, engine monitoring, and onboard systems integration. Included in the package are the display unit, bezel trim, mounting kit, power cable, and documentation. Connection options encompass Ethernet, NMEA 2000, HDMI, composite video, USB, and sonar ports, offering extensive compatibility with various marine electronics and accessories. Whether for fishing, cruising, or navigating challenging waters, the Simrad NSS16 evo3S ensures a comprehensive, high-performance onboard experience.

Features:

• Powerful iMX8 processor for fast page loading and seamless multitasking

• Preloaded US chart with inland and coastal coverage plus C-MAP Reveal ocean floor layer

• Supports multiple chart providers including C-MAP, Navionics, CMOR, and Florida Marine Tracks

• 1kW CHIRP sonar with exceptional bottom-tracking and fish detection

• Dual transducer ports for versatile sonar configurations

• Active Imaging with ForwardScan sonar for detailed underwater views

• SolarMAX IPS high-definition display with ultra-wide viewing angles and optical bonding

• User interface enhancements including dark-themed wallpaper and chart orientation controls

• Integrated Tide Graph for real-time tidal monitoring

• Wireless mirroring to iOS and Android devices for remote data access

• Firmware updates via internet hotspots with the Simrad App for additional features

• Optional HALO pulse compression radar for navigation and weather monitoring

• FLIR M232 thermal imaging camera support with 360-degree pan-and-tilt capability

• WM-4 Weather Receiver with SiriusXM Marine Satellite Weather subscription for detailed forecasts

• Industry-standard networking for multi-display and onboard electronics integration

• Includes display unit, bezel trim, mounting kit, power cable, and documentation

• Multiple connection ports including Ethernet, NMEA 2000, HDMI, composite video, and USB
