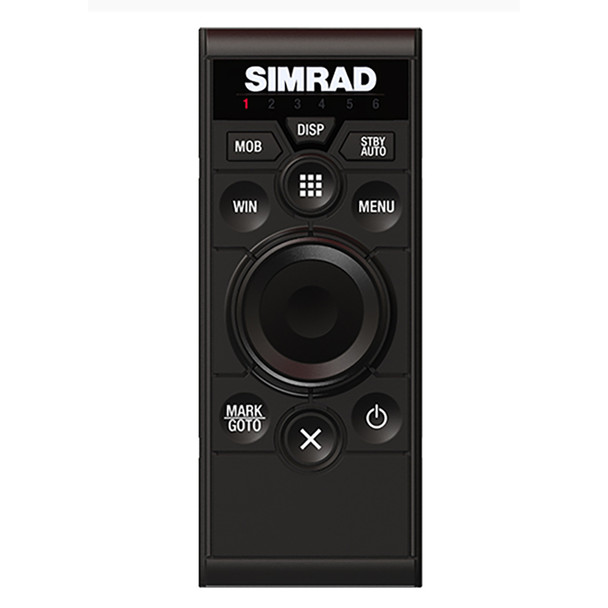

Simrad OP50 Wired Remote Control - Portrait Mount for NSS evo2 and NSO evo2 Displays

OP50 Wired Remote Control - Portrait Mount

Perfectly designed for mounting in a helm chair arm, between monitors, or in other locations suiting a portrait orientation, the Simrad OP50 Remote Controller provides intuitive keypad and rotary-dial command of up to six NSS evo2 or NSO evo2 multifunction displays.

Features:

• Control up to six NSS evo2 or NSO evo2 multifunction displays




• High-quality aluminium control dial with built-in cursor functions




• Portrait orientation (landscape version also available)




• Narrow design perfect for helm chair arm mounting




• Dash mount with low 8mm profile




• Zero-profile flush mount with optional bracket




• Integrated high-decibel speaker for critical alarms




• Quickly switch displays with dedicated button and LED indicators




• Single NMEA 2000 connection

Manage Multiple Displays
Networked with a single NMEA 2000 connection for both power and control, one OP50 Remote Controller can operate up to six networked multifunction displays. Integrated LED indicator lights clearly show the selected display number, while a dedicated button cycles quickly through the available displays.

Controls Optimized for NSS evo2 and NSO evo2
The OP50 Remote Controller features a keypad specifically designed to operate the latest NSS evo2 and NSO evo2 multifunction displays efficiently and reliably in all conditions. The controller's high-quality aluminium dial features a knurled edge for precise rotary control, and built-in cursor functions for easy on-screen navigation.

Easy Mounting in Vertical or Portrait Orientation
The portrait OP50 is perfectly suited to mounting in the arm of a helm chair, with its narrow design and cable positioned specially to fit such installations. This orientation is also ideal for use in narrow consoles and beside Simrad MO-series touchscreen or pilothouse monitors. Dash mounting provides a slim 8mm profile, while an optional bracket allows total flush-mount installation.

Specifications:

• NMEA 2000 Certified: Yes




• Operating Temperature: -15C to +55C/5F to 131F




• Waterproof Standard/Rating: IPX6 (from front when dash mounted with gasket) IPX2 (from back)




• Product Width: 60mm/2.36"




• Product Depth: 44.5mm/1.75"




• Product Height: 150mm/5.9"




• Product Weight: 0.3kg/0.66lb




• Power Consumption: <100mA@13.5V




• NMEA 2000 Load Equivalency Number: 2 network loads (100mA)

The Simrad OP50 Wired Remote Control is a versatile and compact solution designed for seamless control of up to six NSS evo2 or NSO evo2 multifunction displays. Its portrait orientation and narrow profile make it ideal for mounting in helm chair arms, narrow consoles, or alongside touchscreen monitors, providing intuitive operation in tight spaces. The device features a high-quality aluminium rotary dial with a knurled edge for precise navigation, along with dedicated keypad controls that facilitate quick switching between displays. Its low-profile dash mount with an 8mm thickness ensures a sleek, flush appearance, and an optional bracket allows for complete flush-mount installation. The OP50 includes an integrated high-decibel speaker for critical alarms, ensuring vital alerts are heard clearly in noisy environments. Connecting via a single NMEA 2000 network, this remote simplifies wiring and reduces clutter, while LED indicators clearly display the active display, streamlining multi-display management. This remote is engineered for reliable operation across a wide temperature range and is rated IPX6 for front waterproofing, making it suitable for demanding marine environments. Its compact dimensions and lightweight design facilitate flexible installation options, whether in a helm chair arm, narrow console, or beside touchscreen displays. The OP50's dedicated controls and robust construction make it an essential accessory for enhancing navigation efficiency and safety on marine vessels, whether used in commercial or recreational settings.

Features:

• Control up to six NSS evo2 or NSO evo2 multifunction displays

• High-quality aluminium control dial with built-in cursor functions

• Portrait orientation with optional landscape version

• Narrow design perfect for helm chair arm mounting

• Dash mount with low 8mm profile

• Zero-profile flush mount with optional bracket

• Integrated high-decibel speaker for critical alarms

• Quick display switching with dedicated button and LED indicators

• Single NMEA 2000 connection for power and control
