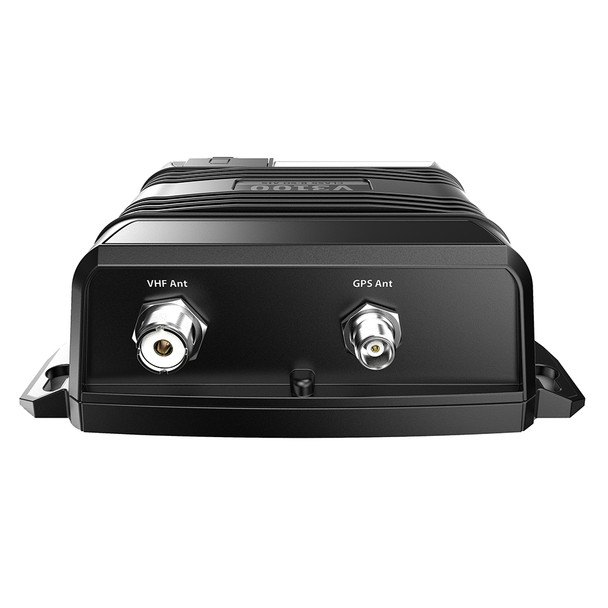

Simrad V3100 Class B AIS with SOTDMA Technology and 5-Watt Transmission Power

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

V3100 Class B AIS

The V3100 Class B AIS incorporates SOTDMA technology and increased transmission power to enhance transmission frequency, reliability, and range compared to standard Class B AIS. This black-box solution integrates with Simrad displays, and features industry-standard connectivity.

Increased Transmission Frequency and Reliability

The V3100 Class B AIS incorporates the same SOTDMA technology found in Class A solutions. This self-organizing transmission technology allows the system to negotiate a regular transmission timeslot with other AIS units in range, facilitating more frequent and reliable position updates in high-traffic areas. The V3100 transmits updates, based on vessel speed, up to once every five seconds; this provides up to six times the reporting frequency of standard Class B AIS.

Increased Transmission Range

The V3100 features a maximum transmission power of 5 Watts, 2.5 times the transmission power of standard Class B AIS solutions. This allows vessels equipped with the V3100 to be detected over AIS at a greater range and provides more reliable transmission to satellite-based AIS receivers.

Integrated Black-Box Solution

This black box AIS solution is designed to work with Simrad multifunction displays, and other NMEA 2000 or NMEA 0183 connected marine electronics. Output to a standard PC is also supported via USB connectivity. The V3100 is contained in a compact IP67 water-resistant housing and includes a built-in SD card slot for standalone AIS data logging.

Features:

• Enhanced performance compared to standard Class B AIS


• Transmit over greater distances with 5-watt output power


• Transmit more frequent position updates with SOTDMA


• Greater transmission reliability in high-traffic areas


• Integrated black-box solution

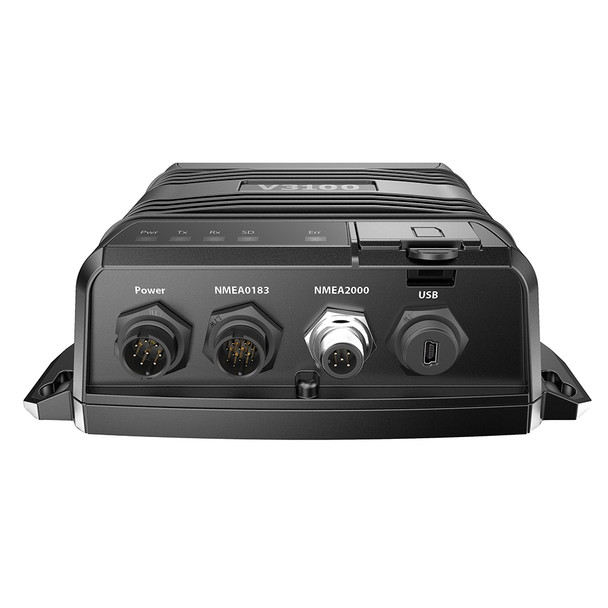

• NMEA 2000, dual NMEA 0183, and USB connectivity


• IP67 water-resistant housing


• Built-in SD card slot for AIS data logging

The Simrad V3100 Class B AIS is a high-performance marine safety device designed to enhance vessel tracking and collision avoidance. Incorporating advanced SOTDMA technology, this AIS transponder offers more frequent and reliable position updates by negotiating transmission timeslots with nearby vessels. With the ability to transmit updates up to once every five seconds, it significantly outperforms standard Class B AIS units, making it ideal for high-traffic marine environments. The increased transmission power of 5 Watts extends the detection range, ensuring your vessel remains visible over greater distances and improving communication with satellite-based AIS receivers. The V3100 is built in a compact, IP67-rated water-resistant housing, suitable for tough marine conditions. It features multiple connectivity options including NMEA 2000, dual NMEA 0183, and USB, allowing seamless integration with Simrad multifunction displays and other marine electronics. The device also includes a built-in SD card slot for standalone AIS data logging, providing valuable navigation data storage. To comply with FCC regulations, all units must be programmed by a qualified technician, and a completed programming form along with MMSI registration or FCC Ship Station License is required at the time of purchase. The V3100's industry-standard connectivity ensures compatibility across various marine systems, making it a versatile choice for commercial and recreational vessels. This black-box solution simplifies installation and operation while delivering enhanced performance for vessel safety and situational awareness.

Features:

• Enhanced performance compared to standard Class B AIS

• Transmit over greater distances with 5-watt output power

• Transmit more frequent position updates with SOTDMA technology

• Greater transmission reliability in high-traffic areas

• Integrated black-box solution for data logging

• Supports NMEA 2000, dual NMEA 0183, and USB connectivity

• IP67 water-resistant housing suitable for harsh marine environments

• Built-in SD card slot for standalone AIS data logging
