Description

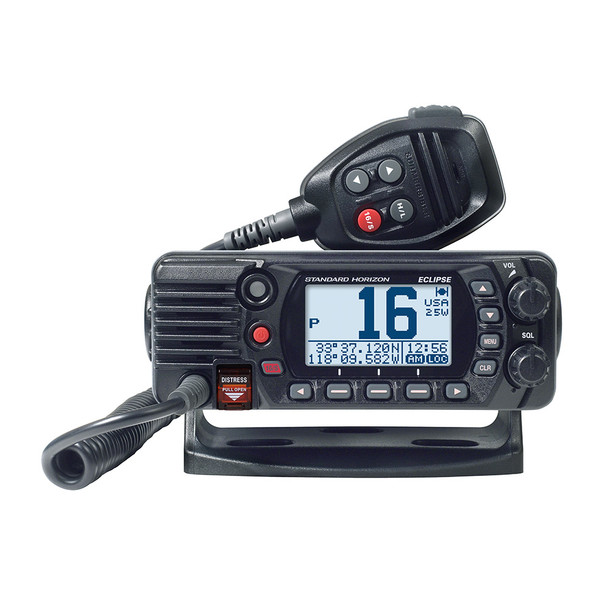

GX1410GB Eclipse Series 25W Fixed Mount VHF/GPS - Black
ITU-R M493-16 Class D Digital Selective Calling
The GX1410 Eclipse Series is an ITU-R M493-16 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.
When activated, the DSC DISTRESS function transmits a digital MAYDAY, including vessel identification, Latitude / Longitude, and time, to facilitate prompt response. Additional calls that can be made are Individual, Urgent, Safety, Position Report, and Send.
High-Resolution Dot Matrix Display
The high-resolution dot matrix display makes navigating the radios many features smooth and easy. The adjustable ultra-bright backlight makes daytime and nighttime viewing a breeze.
E2O Easy-to-Operate Menu System
Keeping the everyday boat operator in mind, the Easy to Operate menu system is more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming have never been easier.
Easy DSC Installation!
The GX1410G makes DSC easy. With an internal 66 Channel GPS built into the front panel, there is no need to hassle wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling and position sharing can both be performed with just a few simple steps.
Features:
- Built-in 66 Channel WAAS GPS receiver
- Affordable Ultra Compact Class D Fixed Mount VHF Radio
- Meets ITU-R M493-16 Class D DSC (Digital Selective Calling)
- Replaces older Eclipse+ and Eclipse DSC Models
- Radio controls on the Microphone
- E2O Easy to Operate Icon/Menu System
- Oversized Full dot matrix display (31 mm x 55 mm)
- Built-in Separate Receiver for CH70 (Receiving DSC Calls)
- DSC test call and Auto DSC channel change selection
- GPS position and Time Shown on a Full-dot Matrix Display
- NMEA In and Output Connections to a Compatible GPS Chart Plotter
- Programmable soft keys
- Automatically poll the GPS position of up to 6 ships using DSC
- Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
- All USA/International and Canadian Marine Channels
- Preset key used to recall up to 10 favorite channels
- NOAA weather channel selection with Weather Alert
- Programmable Scan, Priority Scan, and Dual Watch
The Standard Horizon GX1410GB Eclipse Series is a compact, high-performance 25-watt fixed mount VHF radio designed for reliable marine communication. Featuring a built-in 66-channel WAAS GPS receiver, this radio simplifies installation by eliminating the need for external GPS connections, enabling quick setup and seamless DSC functionality. The integrated separate receiver for Channel 70 ensures that DSC calls, including distress signals, can be received even while listening to other communications, enhancing safety at sea. The DSC DISTRESS function transmits a digital MAYDAY with vessel identification, position coordinates, and time, facilitating rapid rescue responses. Additional call options include Individual, Urgent, Safety, Position Report, and Send, providing versatile communication capabilities.
The high-resolution dot matrix display, measuring approximately 1.2 inches by 2.2 inches, offers clear and easy navigation of the radio’s features. Its adjustable ultra-bright backlight ensures optimal visibility during day or night operations. The intuitive E2O menu system allows boat operators to access all functions with minimal effort, making DSC calling and programming straightforward. Controls on the microphone further simplify operation, allowing quick access to essential features without needing to navigate complex menus.
Designed with durability in mind, the GX1410GB features an IPX8 waterproof rating, making it fully submersible up to 4.92 feet for 30 minutes. It supports all US, international, and Canadian marine channels, including NOAA weather channels with alert functionality, enhancing safety and situational awareness. Programmable soft keys and preset channels streamline user customization, while features like programmable scan, priority scan, and dual watch modes ensure comprehensive monitoring of communication channels. The radio also supports NMEA input/output for integration with compatible GPS chart plotters, enabling real-time position sharing of up to six vessels. Overall, the Standard Horizon GX1410GB offers a reliable, user-friendly, and feature-rich solution for marine communication needs.
Features:
- Built-in 66 Channel WAAS GPS receiver for accurate positioning
- Compact and affordable design suitable for various vessels
- Meets ITU-R M493-16 Class D DSC standards for digital selective calling
- Replaces older Eclipse+ and Eclipse DSC models with updated features
- Control functions accessible via microphone for ease of use
- Intuitive E2O menu system for quick operation
- Oversized high-resolution dot matrix display for visibility
- Separate receiver dedicated to DSC Channel 70 for reliable call reception
- Supports DSC test call and automatic channel switching
- Displays GPS position and time directly on the screen
- NMEA input/output connectivity for integration with GPS/chart plotters
- Programmable soft keys for user customization
- Automatically polls GPS positions of up to six vessels via DSC
- IPX8 waterproof rating for durability in harsh marine environments
- Supports all US, international, and Canadian marine channels
- Preset key for quick access to up to 10 favorite channels
- Includes NOAA weather channels with Alert feature
- Programmable scan modes, priority scan, and dual watch for comprehensive monitoring
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/108196OM.pdf |
