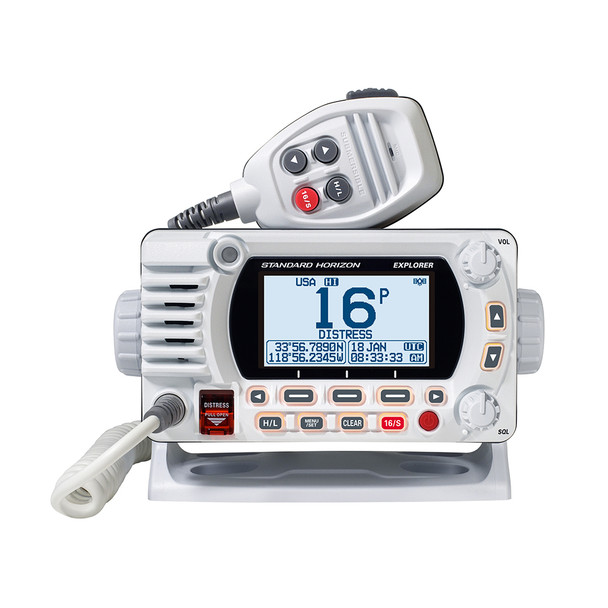

Standard Horizon GX1800G Fixed Mount VHF Marine Radio with Built-In GPS and Second Station Compatibility

GX1800G Fixed Mount VHF with GPS - White

Easy DSC Installation!

The GX1800G makes DSC easy. With an internal 66 Channel GPS built into the front panel, there is no need to hassle with wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling, position sharing, waypoint navigation, navigation to DSC distress calls can all be performed with just a few simple steps.

Second Station RAM4 compatibility

Now compatible with Standard Horizon's latest second station microphone RAM4, model SSM-70. All functions on the main radio can now be controlled on the Second Station RAM4, this includes all radio functions, DSC functions, and intercom features between the radio and the Second Station.

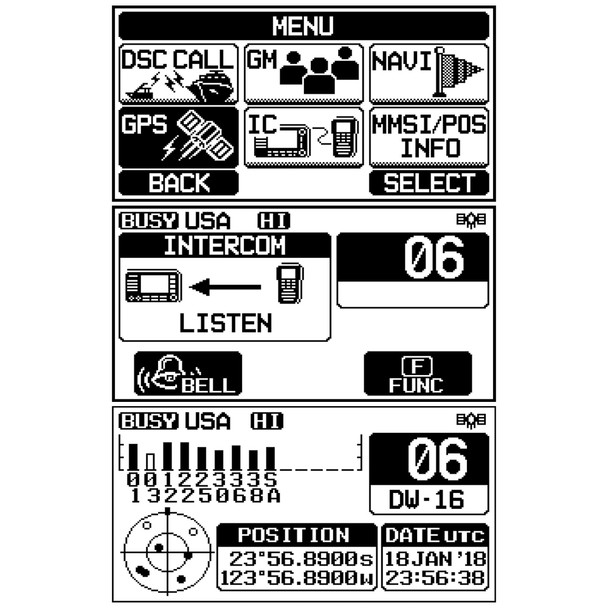

E2O Easy to Operate Menu System

Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.

Ultra Compact Easy Installation

Mounting a VHF radio has never been easier. The Explorer Series VHF's have an ultra thin, compact rear case, only 3.3 in depth or half the depth of comparable VHF radios on the market. The rear case design also gives flexibility when flush mounting the radio in tight areas or bracket mounting the radio by taking up less dash space, and allowing more mounting options.

Features:

• Built-in 66 Channel WAAS GPS receiver


• Separate Receiver for CH70 (Receiving DSC Calls)


• Ultra-slim and compact Rear case design (Depth 3.3", 82mm)


• NMEA 0183 Connectivity


• E2O (Easy to Operate) Icon Menu System


• Preset key stores up to 10 favorite channels


• Second Station Remote Microphone (Optional RAM4 SSM-70H)


• Intercom Feature between the Radio and an Optional Second Station


• Programmable Scan, Priority Scan, and Multi Watch


• Automatic DSC polling of up to 6 ships GPS positions


• GPS Compass, Waypoint and GPS status pages (when connected to a GPS)


• Enter, Save, and Navigate to a waypoint using the Compass page (when connected to a GPS)


• Navigation (LAT/LON, SOG, and COG) information shown on display (when connected to a GPS)


• GM (Group Monitor) Using DSC Group position Calling


• MOB (Man over Board) Operation


• Selectable Night Mode Display


• Noise canceling microphone with channel change selection, 16/S and H/L keys


• NOAA Weather channels with weather Alert


• Flush-Mount Dimensions 5.4"W 2.8"H 3.4"D

The Standard Horizon GX1800G is a versatile fixed mount VHF radio designed for easy installation and reliable communication at sea. Featuring a built-in 66-channel WAAS GPS receiver, this radio simplifies DSC calling, position sharing, waypoint navigation, and distress call operations without the need for external GPS wiring. Its intuitive E2O (Easy to Operate) menu system allows quick access to all functions, making it ideal for both seasoned mariners and casual boaters. The compact rear case, measuring only 3.3 inches in depth, facilitates seamless flush mounting in tight spaces or bracket installation, saving valuable dash space and providing flexible mounting options.

The GX1800G supports NMEA 0183 connectivity and includes a dedicated receiver for DSC calls on CH70, ensuring clear and reliable communication. It is compatible with Standard Horizon's second station microphone, the RAM4 (model SSM-70), allowing remote control of all main radio functions, DSC features, and intercom capabilities between the radio and second station. This feature enhances communication flexibility onboard, especially in larger vessels where multiple operators are present. Additional features include programmable preset keys for quick channel access, NOAA weather channels with alerts, and a noise-canceling microphone with channel change controls, all contributing to an enhanced user experience.

Navigation and positioning features are integrated into the GX1800G, providing GPS compass, waypoint, and status pages when connected to compatible GPS devices. The radio supports entering, saving, and navigating to waypoints directly from the display, and offers advanced DSC group calling (GM) and man-overboard (MOB) functions for safety. Its night mode display, programmable scan options, priority scan, and multi-watch features ensure comprehensive monitoring and situational awareness. Designed for durability and ease of use, the GX1800G is an excellent choice for serious boaters seeking a compact, feature-rich VHF radio with integrated GPS and flexible installation options.

Features:

• Built-in 66 Channel WAAS GPS receiver for seamless navigation and DSC operations

• Separate receiver for CH70 DSC calls to ensure clear communication

• Ultra-slim, compact rear case design measuring only 3.3 inches deep for flexible installation

• NMEA 0183 connectivity for integration with marine navigation systems

• E2O (Easy to Operate) icon-based menu system for intuitive operation

• Preset key capable of storing up to 10 favorite channels for quick access

• Second Station Remote Microphone compatible with Standard Horizon RAM4 (model SSM-70)

• Intercom feature enabling communication between main radio and second station

• Programmable scan, priority scan, and multi-watch modes for comprehensive monitoring

• Automatic DSC polling of up to six ships' GPS positions for situational awareness

• GPS compass, waypoint, and status pages when connected to compatible GPS devices

• Navigation features including entering, saving, and navigating to waypoints via the display

• Supports DSC group calls (GM) and man-overboard (MOB) operations for safety

• Selectable night mode display for low-light conditions

• Noise-canceling microphone with channel change controls for clear audio communication

• Access to NOAA weather channels with weather alert notifications

• Durable flush-mount dimensions measuring 5.4 inches wide, 2.8 inches high, and 3.4 inches deep
