Description

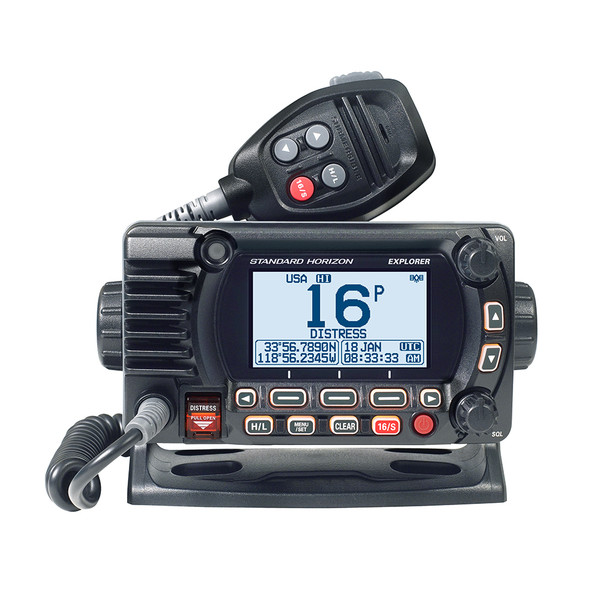

GX1850 Fixed Mount VHF - NMEA 2000 - Black
NMEA2000 Compatible
Easy plug and play connectivity to the NMEA bus. A single plug in interface allows connectivity of GPS data, and DSC calling between compatible devices.
Second Station RAM4 compatibility
Now compatible with Standard Horizon's latest second station microphone RAM4, model SSM-70. All functions on the main radio can now be controlled on the Second Station RAM4, this includes all radio functions, DSC functions, and intercom features between the radio and the Second Station.
E2O Easy to Operate Menu System
Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.
Ultra Compact Easy Installation
Mounting a VHF radio has never been easier. The Explorer Series VHF's have an ultra thin, compact rear case, only 3.3 in depth or half the depth of comparable VHF radios on the market. The rear case design also gives flexibility when flush mounting the radio in tight areas or bracket mounting the radio by taking up less dash space, and allowing more mounting options.
3-Year Waterproof Warranty
If your Explorer Series radio fails for any reason (including water damage) during normal use for the first 3 years of ownership, STANDARD HORIZON will repair or replace it free, without hassles or charges. If it fails for anytime thereafter in normal use, for as long as the original purchaser owns the radio, STANDARD Horizon's Lifetime Flat Rate and Customer Loyalty Service Programs will cover it.
- Meets ITU-R M.493-13 Class D DSC (Digital Selective Calling)
- Separate Receiver for CH70 (Receiving DSC Calls)
- Ultra-slim and compact Rear case design (Depth 3.3", 82mm)
- NMEA2000 Compatible (GX1850GPS/GX1850)
- NMEA 0183 Connectivity
- E2O (Easy to Operate) Icon Menu System
- Preset key stores up to 10 favorite channels
- Second Station Remote Microphone (Optional RAM4 SSM-70H)
- Intercom Feature between the Radio and an Optional Second Station
- Programmable Scan, Priority Scan, and Multi Watch
- Automatic DSC polling of up to 6 ships GPS positions
- GPS Compass, Waypoint and GPS status pages (when connected to a GPS)
- Enter, Save, and Navigate to a waypoint using the Compass page (when connected to a GPS)
- Navigation (LAT/LON, SOG, and COG) information shown on display (when connected to a GPS)
- GM (Group Monitor) Using DSC Group position Calling
- MOB (Man over Board) Operation
- Selectable Night Mode Display
- Noise canceling microphone with channel change selection, 16/S and H/L keys
- NOAA Weather channels with weather Alert
- Flush-Mount Dimenstions 5.4"W 2.8"H 3.4"D
The Standard Horizon GX1850 Fixed Mount VHF Marine Radio offers reliable communication with advanced features designed for ease of use and seamless integration. Equipped with NMEA 2000 compatibility, this radio allows straightforward plug-and-play connectivity to your vessel’s GPS and navigation systems. A single interface facilitates quick data sharing for GPS positioning, DSC calling, and other essential functions, streamlining your onboard communication and navigation experience. The GX1850 also supports connection to the latest Second Station RAM4 microphone, model SSM-70, enabling full control of all radio functions, DSC features, and intercom capabilities from a secondary station, providing flexibility and convenience during navigation and emergencies. The intuitive E2O (Easy to Operate) menu system makes accessing settings, DSC programming, and calling functions straightforward, even for new users, reducing operational complexity. Its redesigned interface ensures that essential functions are just a few steps away, enhancing safety and efficiency during marine operations. The ultra-compact rear case, measuring only 3.3 inches in depth, simplifies installation, especially in tight spaces. Its slim profile allows flush mounting or bracket installation without sacrificing dash space, making it suitable for a variety of vessel layouts. The rugged construction is backed by a 3-year waterproof warranty, covering repairs or replacements in the event of water damage or other malfunctions during normal use. The radio’s features extend to NOAA weather channels with alerts, programmable scan and priority scanning, and multi-watch functions for comprehensive monitoring. Integrated GPS capabilities include waypoint navigation, group monitoring, and MOB (man overboard) operations, which can be accessed when connected to compatible GPS units. Additional features include noise-canceling microphone, night mode display, and preset channel memory. Designed to meet ITU-R M.493-13 Class D DSC standards, the GX1850 ensures compliance with digital selective calling protocols, making it a dependable choice for safe and effective marine communication.
Features:
- NMEA2000 compatible for easy integration with navigation systems
- Plug-and-play connectivity for GPS data and DSC calling
- Supports Standard Horizon's Second Station RAM4 microphone for remote control
- Intuitive E2O (Easy to Operate) menu system for quick access to functions
- Ultra-compact rear case design for flexible installation options
- Waterproof construction with a 3-year warranty for durability and peace of mind
- Supports NOAA weather channels with alert function
- Programmable scan, priority scan, and multi-watch features
- Automatic DSC polling of up to 6 ships' GPS positions
- GPS navigation features including waypoint entry, saving, and navigation
- Supports DSC group calling and MOB (Man Overboard) operations
- Night mode display for low-light conditions
- Noise-canceling microphone with channel control buttons
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/75193OM.pdf |
