Description
25W Commercial Grade Fixed Mount VHF with NMEA 2000 Integrated AIS Receiver
NMEA 2000
Plug and play NMEA 2000 interface. The integrated NMEA 2000 supports all PGN's for Navigation, GPS, AIS and DSC function. Simply plug the NMEA 2000 into your existing network to complement your system with full VHF and DSC features.
Wireless Second Station RAM4W capability
Wirelessly control all radio functions of the GX6000 with the interface of the RAM4W wireless Remote Access Microphone. Using the SCU-30 Wireless Access Point plugged into the back of the radio, you have the capability of syncing up to 4 RAM4W units. With an operating range of up to 65 feet, the RAM4W allows you to control all Radio functions including DSC Calling, Position Polling, Group Calling and more, or use the RAM4W to intercom between the main station or between other wireless RAM4W units.
Built In AIS Receiver

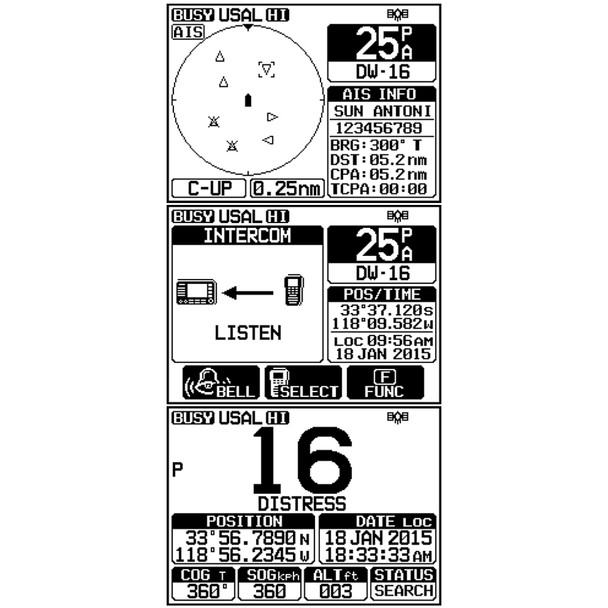

The Quantum GX6000 displays AIS target information (MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG) on the large front panel display. Having this information allows you to contact an AIS Ship directly using DSC, shows your vessels position in relation to AIS targets and alerts you when an AIS ship may be approaching too close to your location via the Closest Point of Approach (CPA) Alarm.
Integrated 25W PA/Loud Hailer
The Quantum GX6000 includes a 25W Loud Hailer with Fog signals; Bells and Whistles with listen back. For added benefit, the last selected VHF channel can be heard when in the PA or Fog modes and the AIS Display may be accessed and used.
In addition, the Quantum GX6000 allows you to start a fog horn and then view the AIS page simultaneously.
Integrated Voice Scrambler
Loaded with an internal 32 code voice scrambler for private communications. the 32 code scrambler is compatible with all Standard Horizon 4 code scramblers already in use. Simply select a channel to be scrambled then select a common code between the transmitting and receiving radios and your communications are secure.
Features:
- Integrated AIS Receiver**
- Built-in Speaker in microphone handset
- AIS / AIS SART target display: MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG
- NMEA2000 and NMEA0183 compatible
- Programmable CPA and TCPA collision avoidance alarms
- Dual Zone 25W PA / Loud Hailer with preprogrammed fog signals and listen back

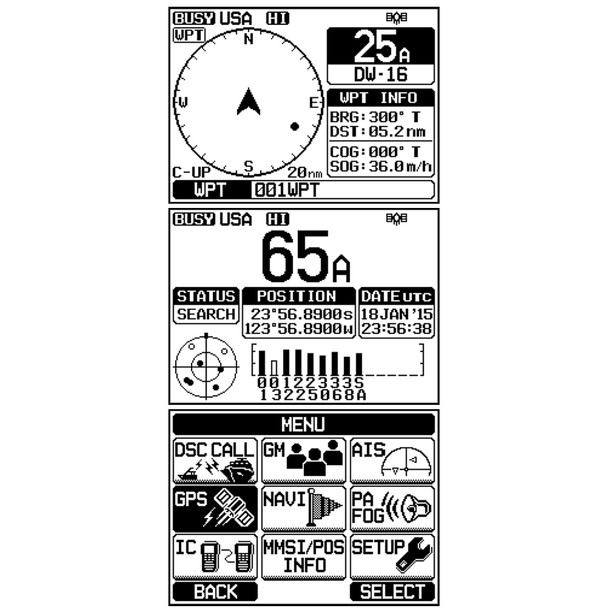

- GPS Compass, Waypoint and GPS status pages
- E2O Easy to Operate menu system
- Oversized rotary channel knob with push to enter
- Front panel microphone can be connected to rear panel and extended 20 feet using MEK-4 mic extension kit
- Capable of connecting two optional RAM4 or four Wireless RAM4W
- Integrated Voice Recorder to play back up to two minutes of RX receive audio
- Advanced 80dB Commercial Grade receiver with Local / Distance Attenuator
- Integrated 32 Code (FVP-42) and 4 Code (CVS2500A) Voice Scramblers
- Overall Dimensions 6.9"W x 4.3"H
- Flush-Mount Dimensions 6.2"W 3.7"H 6.2"D
- 3 Year Waterproof Warranty
**Requires a separate dedicated AIS antenna

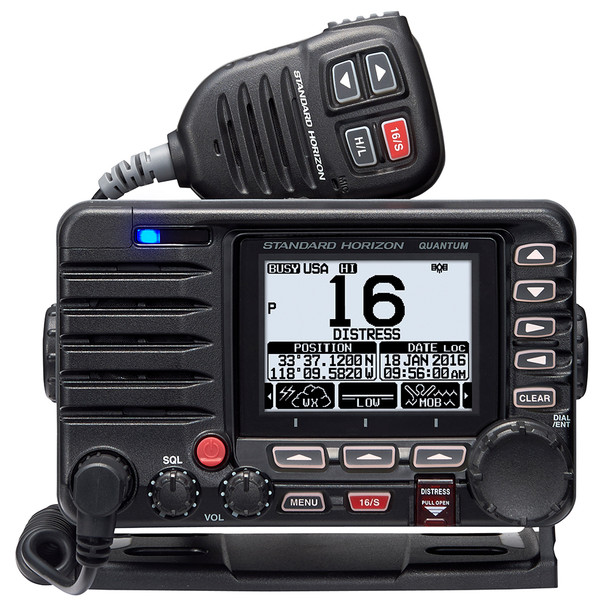

The Standard Horizon Quantum GX6000 is a high-performance 25-watt fixed mount VHF radio designed for commercial mariners seeking reliable communication and advanced navigation features. Its integrated NMEA 2000 interface enables seamless connection with existing marine systems, supporting all PGNs for navigation, GPS, AIS, and DSC functions. This plug-and-play compatibility simplifies system upgrades and ensures your vessel maintains comprehensive situational awareness. The GX6000’s robust design includes a built-in AIS receiver that displays critical target information such as MMSI, Ship Name, Call Sign, Bearing, Distance, Speed Over Ground, and Course Over Ground directly on the large front panel display, facilitating quick decision-making and collision avoidance. Alerts like the Closest Point of Approach (CPA) further enhance safety by warning of nearby AIS targets that may pose a risk.
Control versatility is expanded with the wireless RAM4W remote microphone capability. Using the SCU-30 Wireless Access Point, you can sync up to four RAM4W units within a 65-foot range, allowing you to operate all radio functions—including DSC Calling, Position Polling, and Group Calling—from multiple locations onboard. This wireless feature provides flexibility for crew members to communicate efficiently without being tethered to the main unit. The GX6000 also includes a high-powered 25W loudhailer with fog signals, bells, and whistles, enabling effective public address and signaling, even while monitoring AIS or controlling the radio. The integrated voice scrambler ensures secure communication with a 32-code encryption compatible with existing systems, providing private channels for sensitive operations.
Additional features include a built-in microphone with a speaker, programmable collision avoidance alarms based on CPA and TCPA, and an intuitive E2O menu system for straightforward operation. The radio offers a 2-minute voice recorder to capture and playback received audio, aiding in record-keeping or incident review. Its design incorporates a large rotary channel knob with push-to-enter functionality, and the front panel microphone can be extended up to 20 feet using an optional extension kit. The GX6000 is built for demanding marine environments, offering a waterproof warranty for three years and durable construction that ensures long-term reliability. Whether for commercial or recreational vessels, the Standard Horizon GX6000 provides comprehensive communication, navigation, and safety features in one integrated package.
Features:
- Integrated AIS Receiver for real-time target display including MMSI, ship name, and navigational data
- Built-in speaker in microphone handset for clear audio communication
- Supports NMEA2000 and NMEA0183 protocols for seamless system integration
- Programmable CPA and TCPA collision avoidance alarms for enhanced safety
- Dual zone 25W PA / Loud Hailer with preprogrammed fog signals and listen-back feature
- Includes GPS compass, waypoint, and GPS status pages for navigation assistance
- Easy-to-operate E2O menu system with oversized rotary channel knob
- Front panel microphone can be extended up to 20 feet with optional MEK-4 extension kit
- Capable of connecting up to four wireless RAM4W units for flexible communication control
- Integrated 32-code voice scrambler for secure communication
- Built-in voice recorder with two-minute playback capability
- Advanced 80dB commercial-grade receiver with local and distance attenuation
- Supports up to two optional RAM4 or four Wireless RAM4W units
- Waterproof design with a three-year warranty for durability in marine environments
