TACO Marine 13-1/8 inch x 36 inch Electric Seat Slide with 5 inch Travel for Boat Seats

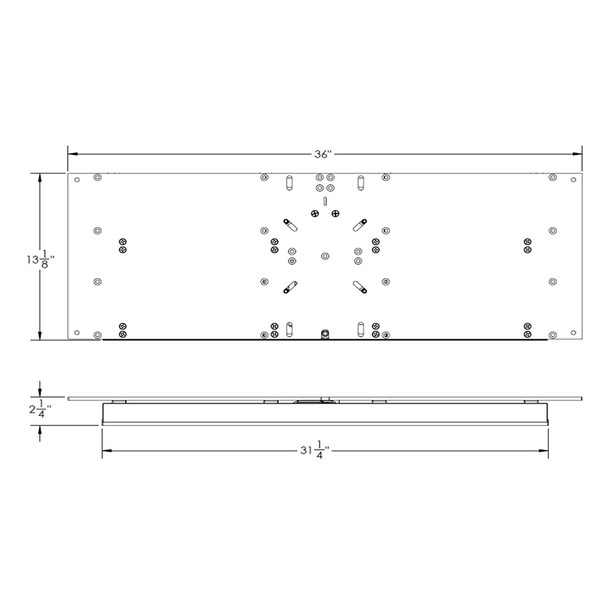

13-1/8" x 36" Electric Seat Slide

Perfect for seats 41" to 54" wide, this 13-1/8" X 36" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions. Contact your TACO Sales or Customer Service Representative for more information.

Features:

• Ideal for seats 41" to 54"


• Features 5" of travel distance (stroke length)


• Meets H31 testing standards for seat applications


• Precision-machined 6000-series aluminum chassis


• Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight, and shock resistant


• Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications


• Quite an operation 58dB


• Electric actuator


• Self-locking at any given position (at rated loads)


• No racking in any direction due to precision tolerances in the track/glide system


• All electric seat slides and components are acid-etched clear anodized


• Made in the USA


• 3-year limited warranty

Specifications:

• 12V DC 9 AMP Max current


• Max load 3500N


• Push and pull force of 1500N


• IP66 Rated


• Speed 13.5 mm/Sec @ 1500N

The TACO Marine M20-3613E electric seat slide is designed to provide smooth and precise adjustments for boat seats ranging from 41 to 54 inches in width. Crafted with a precision-machined 6000-series aluminum chassis, this slide offers durability, corrosion resistance, and lightweight performance essential for marine environments. Its self-lubricating linear glide system ensures quiet operation, dirt resistance, and shock absorption, making it suitable for demanding conditions on the water. The slide features a low profile with a universal mounting bolt pattern, allowing secure attachment to both pedestal and box applications. Its electric actuator delivers up to 5 inches of travel, allowing users to position their seats comfortably at any point between fully extended and retracted. The self-locking mechanism ensures safety and stability at any position under rated loads, while the quiet operation at 58dB enhances user experience. Built to meet H31 testing standards for seat applications and rated IP66 for water and dust resistance, this slide is reliable in various marine conditions. The electric seat slide is finished with acid-etched clear anodizing for added corrosion protection and boasts a 3-year limited warranty for peace of mind. Designed for easy integration and secure fit, it operates on a 12V DC power supply with a maximum current of 9 amps, supporting a load capacity of 3500N and a push/pull force of 1500N. The speed of operation is approximately 13.5 mm/sec at 1500N, providing quick and efficient seat adjustments. Whether upgrading existing seating or installing new setups, the TACO Marine 13-1/8
