TACO Marine Command Ratchet Hinge - 18-1/2 inch Polished 316 Stainless Steel with Hard Stop

Command Ratchet Hinge - 18-1/2 - 316 Stainless Steel Polished with Hard Stop

Building upon the popularity of the H25-0023 heavy-duty Command Ratchet Hinge, this 18-1/2 hinge features a hard stop at 105 and is ideal for longer seat backs up to 22. This extended specialty hinge features one locking position at 62.5 and is perfect for sun pads, bolsters, and lounge backrests.

Features Benefits:

• Single- or double-seat capacity


• Can be used for seat backs up to 22 long


• Compatible with cushions up to 4 thick


• Mounts above the deck


• One locking position at 62.5


• Hard stop at 105


• Polished Type-304 stainless steel


• Meets ABYC H-31 standards class B* application, 500 ft-lb. of torque load for a pair


• 500-hour salt fog test


• Sold in pairs

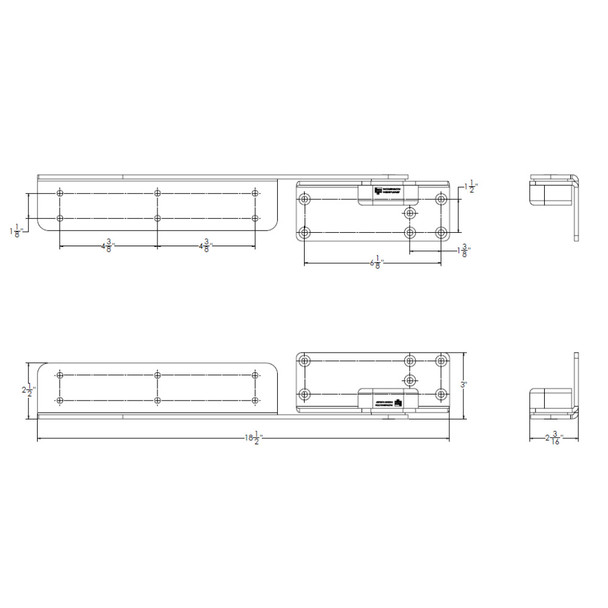

Specifications:

• Length: 18-1/2


• Width: 3


• 5-year limited warranty

The TACO Marine Command Ratchet Hinge, part number H25-0048, offers a durable and versatile solution for marine seating applications. Crafted from polished Type-316 stainless steel, this hinge combines corrosion resistance with a sleek finish suitable for saltwater environments. Its 18-1/2 inch length makes it ideal for longer seat backs, up to 22 inches, providing reliable support and adjustability.

This hinge features an integrated hard stop at 105 degrees, ensuring consistent positioning and preventing overextension. Additionally, it includes a locking position at 62.5 degrees, offering flexibility for various seating arrangements such as sun pads, bolsters, and lounge backrests. Mounting above the deck allows for clean installation and seamless integration into your boat's design. The hinge is compatible with cushions up to 4 inches thick, making it suitable for a wide range of seating configurations.

Designed to meet ABYC H-31 standards for class B applications, the Command Ratchet Hinge can withstand a torque load of 500 ft-lb for a pair, ensuring durability during extended use. It has also undergone a 500-hour salt fog test, demonstrating its resilience against harsh marine environments. Sold in pairs, this hinge provides a reliable and long-lasting solution for boat builders and repair professionals seeking quality marine hardware.

Backed by a 5-year limited warranty, the TACO Marine Command Ratchet Hinge combines robust construction with ease of use, making it an excellent choice for marine seating projects. Its polished stainless steel finish not only enhances aesthetic appeal but also ensures maintenance-free performance over time.

Features:

• Polished Type-316 stainless steel construction for corrosion resistance

• Extended 18-1/2 inch length suitable for seats up to 22 inches long

• Hard stop at 105 degrees for safety and positioning control

• Locking position at 62.5 degrees for adjustable support

• Mounts above the deck for easy installation and clean look

• Compatible with cushions up to 4 inches thick

• Meets ABYC H-31 standards with 500 ft-lb torque load for a pair

• Salt fog resistant with 500-hour testing for durability

• Sold in pairs for comprehensive seating solutions

• Five-year limited warranty for peace of mind
