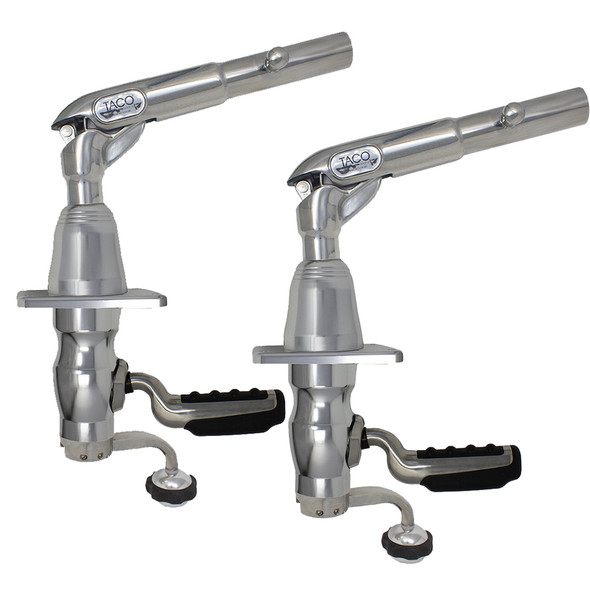

TACO Marine Grand Slam 300XL Outrigger Mount for 1-1/2-Inch Outriggers

Grand Slam 300XL Outrigger Mount for 1-1/2 Outrigger

Single-Handle Operation, Now for Larger Hardtops! The Grand Slam 300XL a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount designed for hardtops up to 4.5. Delivering enhanced safety and performance, the GS-300XL offers smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles with the ergonomic crank handle, which locks flush into the base for a sleek, secure fit. Built with an all-metal designno plastic componentsthe 300XL provides a superior water seal and increased protection from the elements. The GS-300XL pairs seamlessly with TACOs award-winning Open Water Internal Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22, featuring an underside pin-locking connection that eliminates the need for port and starboard designations.

Features Benefits:

PIN-LOCKING ARM:

• No port or starboard designation


• Underside locking pin connection


• Arm lifts to 46.5 from the horizontal position for kite fishing and dock clearance


• Pairs with 1-1/2 DIA Outrigger Poles up to 22


• Can be used with Outrigger Base Reducer for 1-1/8 DIA poles

HANDLE:

• Stainless-steel, ergonomic, single-hand crank handle with ball bearing


• Enables the lift and rotation of outrigger poles from the safety of the deck


• Unique, locking flip handle


• Keeps the handle knob on the bottom when lifting or rotating the outrigger


• Provides full torque control and safety of deployment at all times


• Robust, dual-detented lifting crank handle locks flush into base

MOUNT:

• Made for hardtops up to 4-1/2 thick


• Ideal for boats 25 to 40


• Constructed from cast stainless-steel and machined aluminum for a stronger, lighter base


• Each mount weighs 15 pounds (30 pounds per pair)


• Safety detents prevent uncontrolled rotation when deploying outrigger poles


• Allows a controlled 180 rotation, if needed


• Locking head eliminates the downward creep of outrigger poles


• Equipped to handle the torque and whip generated by poles up to 22


• Includes mounting hardware for easy installation


• Base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems


• Backing plates (BP-0300) sold separately


• 3-year limited warranty

The TACO Marine Grand Slam 300XL Outrigger Mount is engineered for serious anglers who demand durability and ease of use. Crafted from stainless steel and anodized aluminum, this mount is designed to withstand harsh marine environments while providing a sleek, all-metal construction that eliminates plastic components for enhanced water sealing and protection from the elements. Suitable for boats with hardtops up to 4.5 inches thick, the 300XL offers a robust platform capable of supporting outrigger poles up to 22 feet long, including TACOs award-winning Open Water Internal Collapsible Carbon Fiber Outrigger Poles, as well as aluminum or carbon fiber tele-outrigger poles. The mount's universal base pattern ensures compatibility with various top-mount outrigger systems, making installation straightforward and versatile.

The 300XL features a single-handle operation with an ergonomic, stainless-steel crank handle that allows for smooth, one-handed lifting and rotation from the deck. The handle's unique flip lock design keeps it securely in place when not in use, providing full torque control and safe deployment at all times. The pin-locking arm lifts up to 46.5 inches from the horizontal position, facilitating kite fishing and dock clearance. Its underside locking pin connection eliminates the need for port or starboard designation, simplifying installation and adjustment. Safety detents prevent uncontrolled rotation, while the controlled 180-degree rotation capability ensures precise positioning of outriggers for optimal fishing coverage.

The mounting base is constructed from cast stainless steel and machined aluminum, making it lightweight yet strong enough to handle the torque and whip generated by long outrigger poles. The base weighs approximately 15 pounds per unit, with hardware included for easy installation. The design incorporates safety features such as locking heads to prevent downward creep of the poles, ensuring secure and stable deployment. The mount is compatible with various pole diameters and can be used with a reducer for 1-1/8 inch poles, providing versatility for different setup configurations. Backed by a three-year limited warranty, the TACO Grand Slam 300XL Outrigger Mount is an essential component for anglers seeking reliable performance and seamless integration on their boats.

Features:

• PIN-LOCKING ARM: No port or starboard designation, underside locking pin, lifts up to 46.5 inches, supports poles up to 22 feet, compatible with 1-1/2 inch diameter outrigger poles

• HANDLE: Stainless-steel ergonomic crank with ball bearing, enables lift and rotation from deck, features a locking flip handle for secure operation, provides full torque control

• MOUNT: Designed for hardtops up to 4.5 inches thick, constructed from cast stainless steel and machined aluminum, lightweight at approximately 15 pounds each, safety detents prevent uncontrolled rotation, allows controlled 180-degree rotation, includes mounting hardware for easy installation
