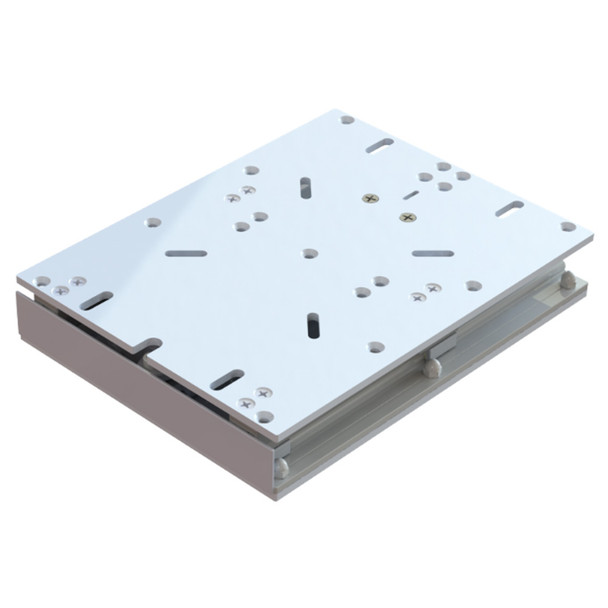

TACO Marine M20-1013E Electric Seat Slide for Boats and Vehicles

13-1/8" x 10" Electric Seat Slide

Perfect for seats 23" to 28" wide, this 13-1/8" X 10" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions.

Features:

• Ideal for seats 23" to 28"


• Features 5" of travel distance (stroke length)


• Water-resistant IP66 rating


• Meets H31 testing standards for seat applications


• Precision-machined 6000-series aluminum chassis


• Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight and shock resistant


• Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications


• Quite an operation 58dB


• Electric actuator


• Self-locking at any given position (at rated loads)


• No racking in any direction due to precision tolerances in the track/glide system


• All electric seat slides and components are acid-etched clear anodized


• Made in the USA


• 3-year limited warranty

Specifications:

• 12V DC 9 AMP Max current


• Max load 3500N


• Push and pull force of 1500N


• IP66 Rated


• Speed 13.5 mm/Sec @ 1500N

The TACO Marine M20-1013E electric seat slide offers a reliable and precise solution for adjustable seating in boats, RVs, and specialty vehicles. Designed to accommodate seats ranging from 23 to 28 inches wide, this 13-1/8 inch by 10 inch slide provides up to 5 inches of smooth, controlled travel. Its electric actuator allows for effortless adjustments, ensuring comfort and convenience in various applications. Constructed with a precision-machined 6000-series aluminum chassis, it delivers durability, corrosion resistance, and lightweight performance. The self-lubricating, dirt-resistant linear glide system ensures quiet operation and longevity, even in demanding environments. The slide features a low profile with a universal mounting bolt pattern, making installation versatile across different pedestal and box configurations. Its IP66 water resistance rating guarantees protection against dust and water ingress, suitable for outdoor and marine use. The TACO Marine electric seat slide operates quietly at approximately 58 decibels and includes self-locking functionality at any position under rated loads, providing safety and stability during adjustments. All components are acid-etched and clear anodized for enhanced corrosion resistance. This product meets H31 testing standards for seat applications and is made in the USA, backed by a three-year limited warranty. With a maximum load capacity of 3500N and a push-pull force of 1500N, it ensures reliable performance for heavy-duty applications. The slide operates at a speed of 13.5 millimeters per second under rated conditions, with a maximum current draw of 9 amps at 12 volts DC, making it suitable for systems requiring robust power. Whether for customizing seating arrangements or upgrading existing systems, this electric seat slide offers a durable, efficient, and high-quality solution for demanding environments.

Features:

• Ideal for seats 23" to 28" wide

• Provides 5" of travel distance (stroke length)

• Water-resistant IP66 rating for outdoor and marine environments

• Meets H31 testing standards for seat applications

• Constructed with precision-machined 6000-series aluminum chassis for durability

• Self-lubricating, dirt-resistant, quiet, corrosion-free linear glide system

• Low profile design with universal mounting bolt pattern for versatile installation

• Operates quietly at approximately 58dB

• Electric actuator for effortless adjustments

• Self-locking at any position under rated load conditions

• Maintains precise alignment with no racking due to high-precision tolerances

• All components are acid-etched and clear anodized for corrosion resistance

• Made in the USA with a reliable three-year limited warranty

• Maximum load capacity of 3500N with a push/pull force of 1500N

• Operates at 13.5 mm/sec at 1500N under 12V DC power
