Description

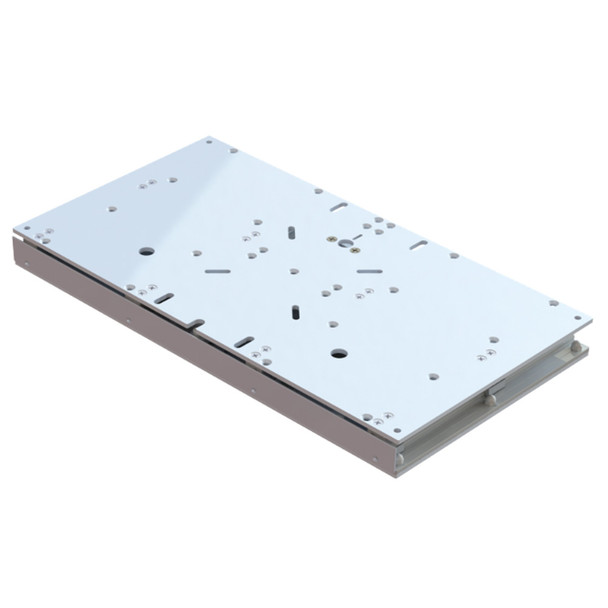

13-1/8" x 24" Electric Seat Slide
Perfect for seats and benches 29" to 40" wide, this 13-1/8" X 24" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions. Contact your TACO Sales or Customer Service Representative for more information.
Features:
- Ideal for seats 29" to 40"
- Features 5" of travel distance (stroke length)
- Water-resistant IP66 rating
- Meets H31 testing standards for seat applications
- Precision-machined 6000-series aluminum chassis
- Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight, and shock resistant
- Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
- Quite an operation 58dB
- Electric actuator
- Self-locking at any given position (at rated loads)
- No racking in any direction due to precision tolerances in the track/glide system
- All electric seat slides and components are acid-etched clear anodized
- Made in the USA
- 3-year limited warranty
Specifications:
- 12V DC 9 AMP Max current
- Max load 3500N
- Push and pull force of 1500N
- IP66 Rated
- Speed 13.5 mm/Sec @ 1500N
The TACO Marine M20-2413E electric seat slide is designed for seamless seat and bench positioning in marine and recreational vehicles. With a compact 13-1/8" x 24" footprint, this slide accommodates seats ranging from 29" to 40" wide, providing up to 5" of smooth, precise travel for optimal comfort and functionality. Its electric actuator ensures effortless operation, allowing users to stop the slide at any position between fully retracted and extended. The slide's quiet operation at approximately 58dB makes it suitable for environments where noise reduction is valued. Crafted with a precision-machined 6000-series aluminum chassis, this slide offers durability and resistance to corrosion, dirt, and shocks, thanks to its self-lubricating linear glide system.
The TACO Marine electric slide features a low-profile design with a universal mounting bolt pattern compatible with both pedestal and box applications, simplifying installation. Its IP66 water resistance rating guarantees protection against dust and water ingress, making it suitable for marine settings and outdoor use. The self-locking mechanism ensures the slide remains securely in place at any position under rated loads, preventing unwanted movement during transit or when stationary. All components are acid-etched and clear anodized for added corrosion resistance, and the product is proudly manufactured in the USA with a comprehensive 3-year limited warranty.
Ideal for applications requiring reliable and adjustable seat positioning, the M20-2413E is rated for a maximum load of 3500N and operates on a 12V DC power supply with a maximum current draw of 9 amps. The slide offers a push and pull force of 1500N and a travel speed of approximately 13.5 mm/sec at 1500N. Whether upgrading existing seating or installing new configurations, this electric seat slide provides both convenience and durability for demanding environments.
Features:
- Suitable for seats 29" to 40" wide with 5" travel distance
- Water-resistant IP66 rating for outdoor and marine applications
- Meets H31 testing standards for seat applications
- Constructed with a precision-machined 6000-series aluminum chassis for durability
- Self-lubricating, dirt-resistant, quiet, and corrosion-free linear glide system
- Low profile design with universal mounting bolt pattern for easy installation
- Operates quietly at approximately 58dB
- Electric actuator for effortless, adjustable positioning
- Self-locking at any position under rated loads for safety
- All components acid-etched and clear anodized for corrosion resistance
- Made in the USA with a 3-year limited warranty
- Rated for a maximum load of 3500N with 12V DC power
Details
truck_freight: |
No |
oversized: |
No |
