Description
ROTECH STEERING SYSTEM
ROTECH - X10
T71FC - helm
X34 - 90 bezel
M66 - 10' steering cable

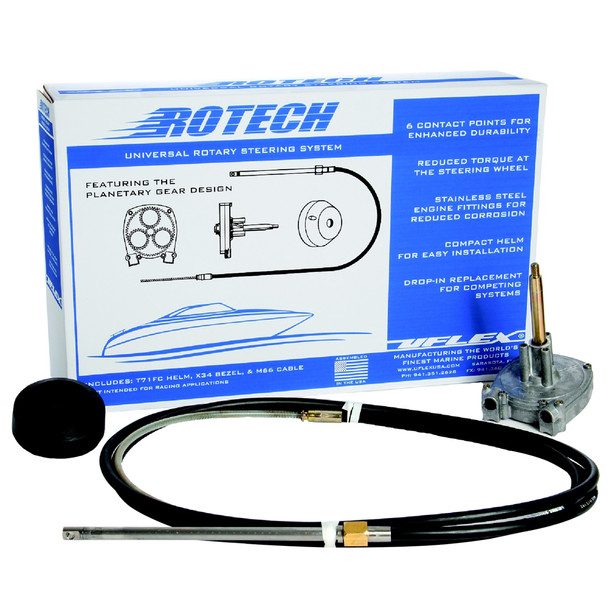

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:
A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.
FEATURES AND TECHNICAL SPECIFICATIONS:
- Fast connect, simple installation
- All stainless steel cable output ends
- Corrosion resistant materials
- Particulary suitable where clearance is limited
- Standard 3/4" tapered shaft
- Lock-to-lock steering wheel turns: approx. 3,8
- Stroke: 9" (228 mm)
- Maximum allowable steering wheel diameter: 16" (406 mm)
- Minimum steering cable bend radius: 7.9" (200 mm)
- Minimal feedback
- Compact for mounting
- T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat
- For boats faster than 50 mph the twin cable steering system T72FC is recommended
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
**The wheel is not included
The UFlex Rotech 10' Rotary Steering System package offers a comprehensive solution for replacing or installing a new steering setup on your boat. This kit includes a durable helm, a corrosion-resistant bezel, and a 10-foot steering cable, providing everything needed for a straightforward installation. Designed with ease of use in mind, the system features a fast connect mechanism that simplifies mounting and adjustment, making it suitable for both DIY enthusiasts and professional installers.
Constructed with high-quality materials, the UFlex Rotech system utilizes stainless steel cable output ends and corrosion-resistant components, ensuring longevity and reliable performance even in harsh marine environments. Its compact design allows for flexible mounting options, especially in boats with limited clearance. The system accommodates standard 3/4-inch tapered shafts, with a steering stroke of 9 inches and approximately 3.8 lock-to-lock turns of the steering wheel. It supports steering wheels up to 16 inches in diameter, making it versatile for various boat sizes and configurations.
This rotary steering package is suitable for boats traveling up to 50 mph, although for higher speeds, the twin cable T72FC system is recommended. The T71FC system exceeds both EN 28848 and ABYC P17 safety standards, ensuring a safe and reliable operation. Its minimal feedback and smooth steering response make maneuvering easier, whether navigating tight turns or high-speed cruising. It is important to note that the steering wheel is not included with the package, allowing you to select a wheel that best matches your boat's style and size. Overall, this kit provides a robust, easy-to-install solution that enhances your vessel's steering performance and safety.
Features:
- Fast connect mechanism for simple installation
- All stainless steel cable output ends for durability
- Corrosion-resistant materials suitable for marine environments
- Compact design ideal for boats with limited clearance
- Standard 3/4-inch tapered shaft compatibility
- Steering wheel lock-to-lock turns: approximately 3.8
- Steering stroke: 9 inches (228 mm)
- Supports steering wheels up to 16 inches in diameter
- Minimum cable bend radius of 7.9 inches (200 mm)
- Minimal feedback for smooth steering
- Suitable for boats up to 50 mph, with higher speed systems recommended for faster vessels
- Exceeds EN 28848 and ABYC P17 safety standards
