Description

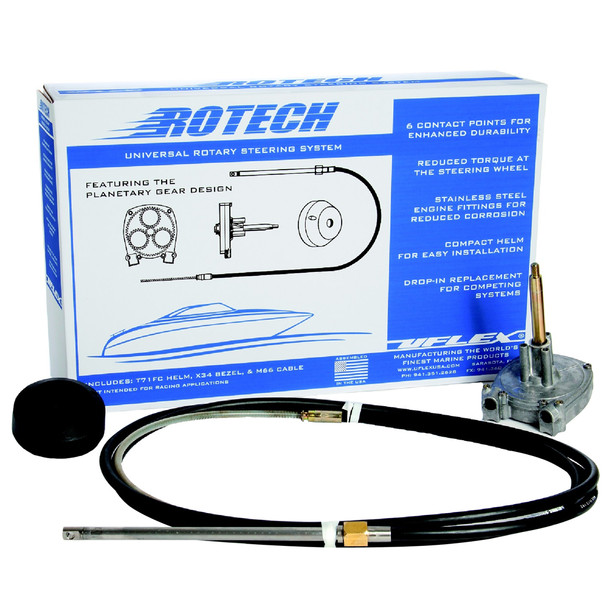

ROTECH STEERING SYSTEM
ROTECH - X18
T71FC - helm
X34 - 90 bezel
M66 - 18' steering cable
UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:
A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.
FEATURES AND TECHNICAL SPECIFICATIONS:
- Fast connect, simple installation
- All stainless steel cable output ends
- Corrosion resistant materials
- Particulary suitable where clearance is limited
- Standard 3/4" tapered shaft
- Lock-to-lock steering wheel turns: approx. 3,8
- Stroke: 9" (228 mm)
- Maximum allowable steering wheel diameter: 16" (406 mm)
- Minimum steering cable bend radius: 7.9" (200 mm)
- Minimal feedback
- Compact for mounting
- T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat
- For boats faster than 50 mph the twin cable steering system T72FC is recommended
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
**The wheel is not included
The UFlex Rotech 18' Rotary Steering System is a comprehensive kit designed for reliable and efficient boat steering. It includes a T71FC helm, X34 bezel, and M66 18-foot steering cable, providing a complete replacement solution for your vessel. The system features a fast connect design for quick and straightforward installation, making it suitable for both professional and DIY boat maintenance projects. Constructed with corrosion-resistant materials and all stainless steel cable output ends, this steering system is built to withstand harsh marine environments. Its compact design allows for easy mounting even in boats with limited space, and the standard 3/4" tapered shaft ensures compatibility with a wide range of boat configurations. The system offers lock-to-lock steering wheel turns of approximately 3.8, a stroke of 9 inches (228 mm), and is compatible with steering wheels up to 16 inches (406 mm) in diameter. Designed with minimal feedback, it provides smooth and responsive steering control for a safer boating experience. The UFlex Rotech 18' Rotary Steering System exceeds both EN 28848 and ABYC P17 safety standards, ensuring quality and safety in marine applications. Please note that the steering wheel is not included with this package. This system is ideal for boats traveling up to 50 mph, though for higher speeds, the twin cable T72FC system is recommended. Suitable for boats with a maximum horsepower that aligns with the system's specifications, this package delivers durability, ease of installation, and reliable performance for your marine steering needs.
Features:
- Fast connect design for simple, quick installation
- All stainless steel cable output ends for enhanced durability
- Corrosion-resistant materials suitable for marine environments
- Compact design for limited mounting space
- Standard 3/4 inch tapered shaft compatibility
- Lock-to-lock steering wheel turns approximately 3.8
- Stroke measures 9 inches (228 mm)
- Supports steering wheels up to 16 inches (406 mm) in diameter
- Minimal feedback for smooth steering
- Exceeds EN 28848 and ABYC P17 safety standards
