Description
ROTECH STEERING SYSTEM
ROTECH - X09
T71FC - helm
X34 - 90 bezel
M66 - 9' steering cable

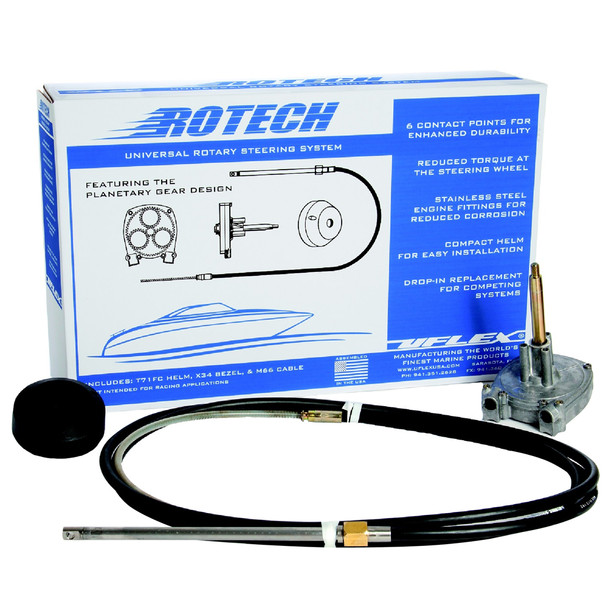

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:
A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.
FEATURES AND TECHNICAL SPECIFICATIONS:
- Fast connect, simple installation
- All stainless steel cable output ends
- Corrosion resistant materials
- Particulary suitable where clearance is limited
- Standard 3/4" tapered shaft
- Lock-to-lock steering wheel turns: approx. 3,8
- Stroke: 9" (228 mm)
- Maximum allowable steering wheel diameter: 16" (406 mm)
- Minimum steering cable bend radius: 7.9" (200 mm)
- Minimal feedback
- Compact for mounting
- T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat
- For boats faster than 50 mph the twin cable steering system T72FC is recommended
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
**The wheel is not included
The UFlex Rotech 9' rotary steering system offers a comprehensive solution for replacement steering in boats up to 50 mph. This kit includes a high-quality helm, bezel, and a durable 9-inch steering cable, providing a reliable and straightforward installation for marine applications. Designed with corrosion-resistant materials, the system ensures longevity and consistent performance in harsh marine environments. Its fast connect feature simplifies installation, making it accessible for both professional installers and experienced boat owners.
The Rotech X09 system is optimized for limited clearance spaces, featuring a compact design that maintains minimal feedback and smooth steering action. The standard 3/4-inch tapered shaft accommodates most steering wheels up to 16 inches in diameter, ensuring versatility across various boat models. The system’s stroke measures 9 inches, and it supports a lock-to-lock steering wheel turn of approximately 3.8 turns, providing precise control. Additionally, the steering cable has a minimum bend radius of 7.9 inches, reducing stress on components and enhancing durability.
This rotary steering package exceeds safety standards such as EN 28848 and ABYC P17, ensuring a safe and reliable marine steering experience. It is particularly suitable for boats where engine horsepower does not exceed established limits, and for faster vessels exceeding 50 mph, a twin cable system like the T72FC is recommended. The entire assembly is built to withstand marine conditions, with stainless steel output ends and corrosion-resistant materials, ensuring long-lasting performance in saltwater environments. Whether replacing an existing system or installing new steering on a compatible boat, this kit provides everything necessary for a secure and efficient upgrade, backed by UFlex USA’s reputation for quality and safety.
Features:
- Fast connect, simple installation for quick setup
- All stainless steel cable output ends for corrosion resistance
- Corrosion-resistant materials suitable for marine environments
- Compact design ideal for limited clearance spaces
- Standard 3/4-inch tapered shaft compatible with various steering wheels
- Lock-to-lock steering wheel turns approximately 3.8 turns for precise control
- Stroke length of 9 inches (228 mm) for responsive steering
- Supports steering wheels up to 16 inches (406 mm) in diameter
- Minimum bend radius of 7.9 inches (200 mm) reduces stress on components
- Minimal feedback for comfortable steering
- Exceeds EN 28848 and ABYC P17 safety standards
- Recommended for boats with engines not exceeding maximum horsepower ratings
- Suitable for boats traveling faster than 50 mph with twin cable systems
