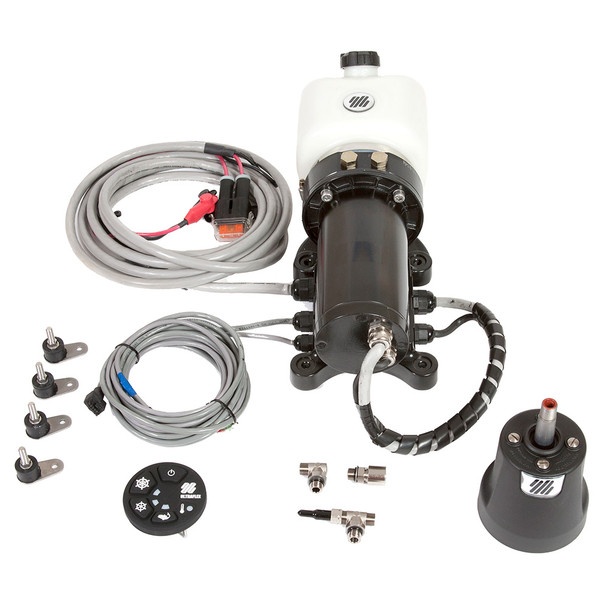

Uflex USA MasterDrive MD40-FM Single Station Hydraulic Steering Retrofit Kit with Helm, Interface, and Power Unit

MasterDrive Single Station Retrofit Kit MD40-FM Includes Helm, Interface, MasterDrive, Power Unit

Features:

• Eliminates torque at the steering wheel


• Three different selectable levels of power give the boater the desired feeling on the wheel (PATENTED)


• Automatically reverts to manual mode in case of power loss


• High efficiency, low AMP draw


• The system is always running permits immediate control in any sea conditions


• Equipped with a safety switch ON/OFF (SMART BUTTON)


• Can be used on dual-station installations


• Suitable for use with an autopilot


• Low noise


• Voltage: 12VDC


• CE marked in conformity with ABYC P21, ISO 10592 safety standards


• Ignition protected (SAE J-1171 and UNI EN 28846)

Whats In The Box System Components 1 single packaged KIT MD40FM Dual Cylinder containing:

• 1 UH40-F Front Mount Master Helm


• 1 UPMD Power Unit, 15 (4,5 m) wiring harness included


• 1 UCMD User Interface

This is a standard Inboard kit that does not include Cylinders, Hose Kits, or Steering wheels. Please indicate what Cylinder model is needed. You will also need to order Hose Kits (Not Included) and a Steering Wheel if required.

Optional Second Station Kit Not included with the above-listed MD Kit:

• 1 KIT MD2: for dual station


• Flexible hydraulic hoses


• 1 Tilt mechanism X66-40613 M suitable for Tilt Mount Helm. Tilt range of 48 and five locking positions.


• 1 Dual cylinder application Tie Bar: See Selection (Outboard Application Only)


• 1 Steering Wheel: See Selection


• 1 Instruction manual

Note: The MasterDrive helms (both the UH Master and the UHD slave for a dual station), the UPMD Power Unit and the UCMD User Interface are the same products shown on the outboard MasterDrive system.

The Uflex USA MasterDrive MD40-FM Single Station Retrofit Kit offers a comprehensive hydraulic steering solution designed for inboard boats. Featuring an integrated helm, interface, master drive, and power unit, this kit provides smooth and responsive steering control. The system eliminates torque at the steering wheel, enhancing maneuverability and reducing fatigue during long cruises. It offers three selectable power levels, allowing boaters to customize the steering feel to their preference, thanks to the patented technology. In case of power failure, the system automatically reverts to manual mode, ensuring continuous control under any sea conditions. This high-efficiency setup draws low amperage, making it suitable for extended use without significant power drain. The system's design allows for immediate control at all times and is equipped with a safety ON/OFF switch (SMART BUTTON), providing additional operational security. Compatible with dual-station installations and autopilot systems, the MD40-FM is versatile and adaptable to various vessel configurations. Its low noise operation contributes to a quieter boating experience, and the 12VDC voltage requirement makes it easy to integrate with standard boat electrical systems. The kit is CE marked in conformity with ABYC P21 and ISO 10592 safety standards, and it is ignition protected according to SAE J-1171 and UNI EN 28846 standards, ensuring safety and reliability. Included in the package are the UH40-F front mount master helm, UPMD power unit with a 15-foot wiring harness, and UCMD user interface. Please note that the kit does not include cylinders, hose kits, or steering wheels, which must be ordered separately based on your specific vessel requirements. An optional dual-station kit is available for boats with multiple control points, including flexible hydraulic hoses, tilt mechanisms, tie bars, and steering wheels. This retrofit kit is an ideal choice for boaters seeking a dependable, efficient hydraulic steering upgrade that integrates seamlessly with existing systems and enhances overall vessel control.

Features:

• Eliminates torque at the steering wheel for easier handling

• Three selectable power levels for customized steering feel (PATENTED)

• Automatically reverts to manual mode during power loss for safety

• High efficiency with low amperage draw for extended use

• Always active system provides immediate control in any sea conditions

• Equipped with a safety ON/OFF SMART BUTTON for operational security

• Suitable for dual-station installation, enhancing vessel control options

• Compatible with autopilot systems for automated navigation

• Low noise operation for a quieter boating experience

• Designed to meet CE, ABYC P21, ISO 10592, SAE J-1171, and UNI EN 28846 standards for safety and reliability
