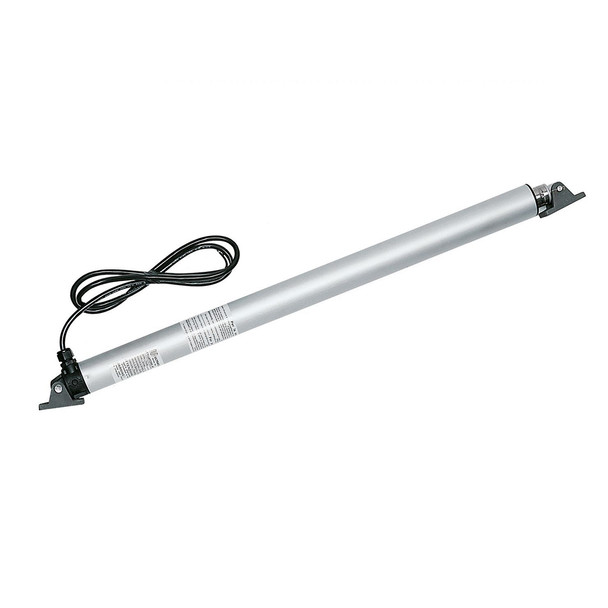

Uflex USA Mechanical Hatchlifter 12" STK Fast - Marine Electric Hatch Lift System

Mechanical Hatchlifter 12" STK Fast

The AV hatch lifters are electromechanical products, especially designed for marine use on pleasure boats. They allow full or partial opening and closing of heavy engine hatches, peak tanks, hatch beams etc. By activating a switch, it is possible to lift the hatch to any desired position from closed to full open; an internal self-locking mechanism will maintain the position preventing any accidental hatch closing. In case of a power failure, an emergency device allows for manual opening.

The Uflex AV hatch lifters do not require any maintenance, are easy to install, and are made of materials resistant.

Features:

• According to the load required, the AV hatch lifter can be mounted individually, or in twin-cylinder installations for heavier loads. It is also possible to install more than two AV actuators in multiple applications.


• Maximum load for single installations: 1200N (120 kg - 265 lbs)


• Maximum load for dual installations: 2400N (240 kg - 529 lbs)


• Maximum load is recommended not to be exceeded.


• Supplied with all mounting hardware.


• Stainless steel telescopic ram for manual operation in case of emergency.


• Available on request without a manual emergency opening device for high-performance boats.


• Circuit breaker to stop accidental overloading of the system and electronic stop at the closed or fully open position.


• IP 65 protection rated


• Speed: 25mm/sec no load applied, 17 mm/sec maximum load


• Current absorption in single installations: 10A at 12V, 5A at 24V


• Current absorption in dual installations: 20A at 12V, 10A at 24V


• AV 12VDC models are Ignition Protected. UL1500 - ISO8846 approved.

Specifications:

• Volt: 12V DC


• Stroke: 300mm (12")


• Length A (full closed actuator): 677 mm (26.6")


• External: 48 mm (1.9")

The Uflex USA Mechanical Hatchlifter model AV3012 is a reliable and high-performance electromechanical solution designed specifically for marine applications on pleasure boats. This 12-inch hatch lifter allows users to easily open and close heavy engine hatches, peak tanks, and hatch beams with minimal effort. Its intuitive switch activation enables full or partial opening to any desired position, while an internal self-locking mechanism ensures the hatch remains securely in place during operation. An emergency manual operation feature, including a stainless steel telescopic ram, provides peace of mind in case of power failure, allowing for safe manual opening of the hatch.
Constructed from durable, corrosion-resistant materials, the AV3012 requires no maintenance and is simple to install. Its versatile mounting options support individual or twin-cylinder configurations, making it suitable for a range of load requirements. The system's maximum load capacity is 1200N (about 120 kg or 265 lbs) for single installations and up to 2400N (approximately 240 kg or 529 lbs) when dual cylinders are used. To prevent overloading, the system includes a circuit breaker that automatically stops operation if the load exceeds safety limits, and electronic stops are integrated to prevent over-travel at fully open or closed positions.
The hatch lifter features a speed of 25mm/sec without load and a maximum of 17mm/sec under load, with current absorption of 10A at 12V or 5A at 24V for single installations, and doubled for dual setups. It is rated IP65 for protection against dust and water ingress and is UL1500 and ISO8846 approved, making it suitable for demanding marine environments. The actuator has an external length of 26.6 inches when fully closed, with a stroke of 12 inches, and a compact external diameter of 1.9 inches, ensuring compatibility with various hatch sizes and configurations.

Features:

• Supports single or twin-cylinder configurations for different load capacities

• Maximum load of 1200N (120 kg / 265 lbs) for single installation

• Maximum load of 2400N (240 kg / 529 lbs) for dual installations

• Includes all mounting hardware for easy installation

• Stainless steel telescopic ram for manual emergency operation

• Option for high-performance boats without manual emergency device available upon request

• Integrated circuit breaker to prevent overloading

• Electronic stops at fully open and closed positions for safety

• IP65 rated for dust and water resistance

• Operating speed: 25mm/sec no load, 17mm/sec under load

• Current absorption: 10A at 12V, 5A at 24V for single units; doubled for dual units

• UL1500 and ISO8846 approved for marine safety and reliability

• External length of 26.6 inches with a 12-inch stroke
