Description
ROTECH STEERING SYSTEM
ROTECH - X20
T71FC - helm
X34 - 90 bezel
M66 - 20' steering cable

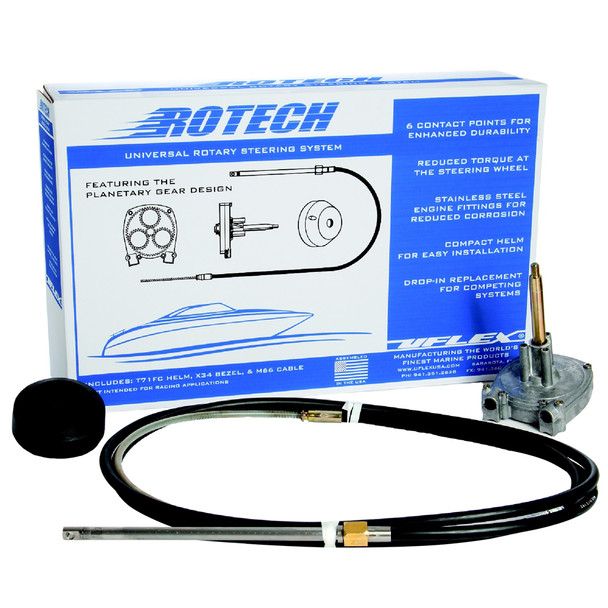

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:
A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.
FEATURES AND TECHNICAL SPECIFICATIONS:
- Fast connect, simple installation
- All stainless steel cable output ends
- Corrosion resistant materials
- Particulary suitable where clearance is limited
- Standard 3/4" tapered shaft
- Lock-to-lock steering wheel turns: approx. 3,8
- Stroke: 9" (228 mm)
- Maximum allowable steering wheel diameter: 16" (406 mm)
- Minimum steering cable bend radius: 7.9" (200 mm)
- Minimal feedback
- Compact for mounting
- T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat
- For boats faster than 50 mph the twin cable steering system T72FC is recommended
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
**The wheel is not included
The UFlex USA Rotech 20' Rotary Steering System is a comprehensive kit designed for efficient and reliable boat steering. This package includes a T71FC helm, X34 90-degree bezel, and a M66 20-foot steering cable, making it an ideal replacement or upgrade for your existing steering setup. The system features a fast connect mechanism for quick and straightforward installation, reducing downtime and simplifying maintenance. Constructed with corrosion-resistant materials, this system is suitable for marine environments and ensures durability over time. The all stainless steel cable output ends provide secure connections, and the compact design allows for easy mounting in limited clearance spaces. With a standard 3/4
