Description

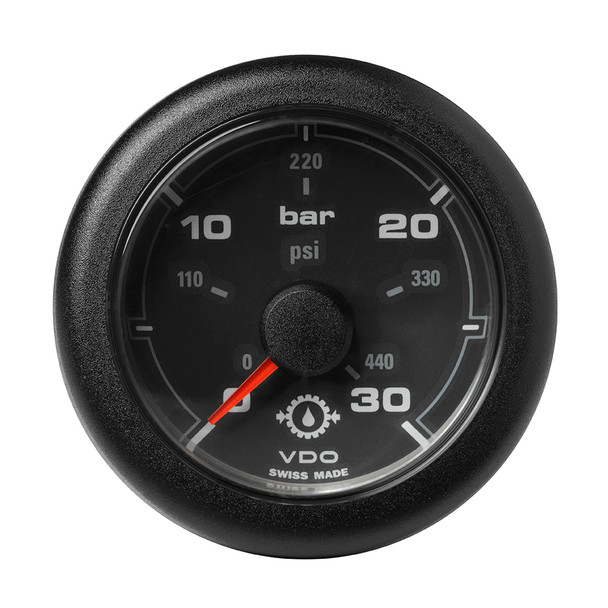

52MM (2-1/16") OceanLink Transmission Oil Pressure Gauge - 30 Bar/440 PSI - Black Dial Bezel
OceanLink 52 mm Vessel Status Gauges are connected directly to any OceanLink Master unit using the patented EasyLink serial bus connection. Up to 16 EasyLink gauges for each Tachometer or GPS Speedometer can be daisy-chained together.
Interchangeable bezel option.
Features:
- AMP Superseal Easylink
- 270 pointer deflection angle
- Reverse polarity protection
- Anti-fog double lens
- Front rear protection rating IPX5
- Operating temperature range -20 C / +70 C
- Nominal voltage - 12/24V
- Hole diameter - 52MM
In the Box:
- Gauge
- Bezel
- Rubber Seal
- Spinlock
- Installation Instructions
- Safety Instructions
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Veratron 52mm OceanLink Transmission Oil Pressure Gauge offers reliable monitoring for marine and vehicle applications, featuring a durable black dial and bezel for clear visibility. Designed for seamless integration, this gauge connects directly to any OceanLink Master unit via the patented EasyLink serial bus, allowing up to 16 gauges to be daisy-chained for comprehensive system monitoring. Its compact 52 mm (2-1/16 inch) size fits standard dashboard openings for easy installation and maintenance. The gauge's robust construction includes an anti-fog double lens and reverse polarity protection, ensuring consistent performance in harsh conditions. The operating temperature range from -20°C to +70°C supports use in diverse environments, while the IPX5 front and rear protection rating safeguards against water ingress, making it suitable for marine and outdoor applications. The gauge features a 270-degree pointer deflection angle for precise readings and is powered by a nominal 12/24V voltage supply, compatible with most vehicle electrical systems. In the box, you will find the gauge, an interchangeable bezel, rubber seal, spinlock, installation instructions, and safety guidelines, ensuring a straightforward setup process. This product is sold individually and designed to meet demanding operational standards, providing accurate oil pressure readings essential for maintaining engine health and safety. Please note, this product contains chemicals including lead, which are recognized to cause health risks, and proper handling and disposal are recommended according to local regulations.
Features:
- AMP Superseal Easylink connection for simple daisy-chaining of up to 16 gauges
- 270-degree pointer deflection angle for accurate readings
- Reverse polarity protection to prevent damage during installation
- Anti-fog double lens for clear visibility in various conditions
- Front and rear protection rating IPX5 for water resistance
- Operates within a temperature range of -20°C to +70°C
- Compatible with 12V and 24V electrical systems
- Standard 52mm (2-1/16 inch) mounting diameter for easy installation
