Veratron Deep-Pipe Level Sender - 260mm - 0 to 180 OHM for Fuel and Water Tanks

Deep-Pipe Level Sender - 260mm - 0 to 180 OHM

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel


• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water


• Length: 260 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67


• Operating Temp.: -25C to 65C or -13F to 149F


• Operating Voltage: 6 to 24 VDC


• Compensation chamber


• Flange: 5-Hole SAE Flange 54mm PA66 GF30


• Wiring harness with length of 200 mm


• Signal ranges: 0 to 180 OHM


• IP67 protection rating


• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor


• Installation Kit


• Safety Instructions


• Installation Instructions

*Sold as an Individual

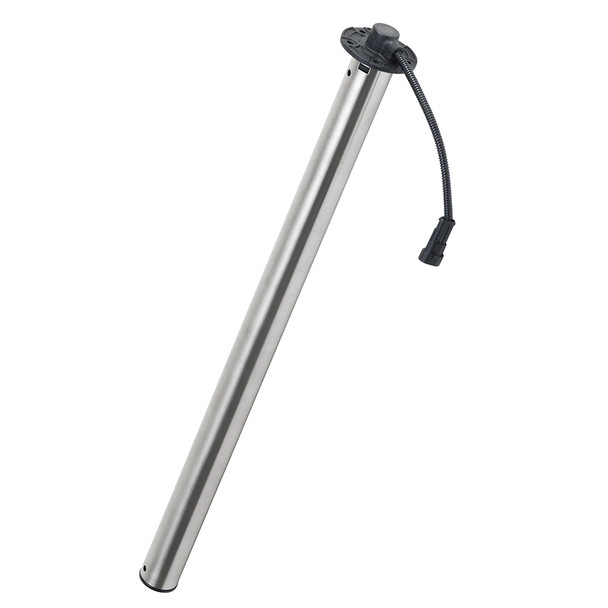

The Veratron Deep-Pipe Level Sender (Part No. A2C1744250001) is a reliable and precise sensor designed for measuring liquid levels in fuel tanks, including gasoline, diesel, and petroleum, as well as water tanks. Its 260 mm tubular stainless steel construction offers durability and resistance to harsh environments. The sensor features a float mechanism inside a 38 mm diameter vertical tube, which accurately detects liquid levels while minimizing fuel sloshing effects through small top and bottom holes that act as baffles. This design ensures stable readings even in dynamic sea conditions. The sensor's compatibility with various liquids and its robust construction make it suitable for marine, industrial, and commercial applications. It includes a 5-hole SAE flange with a 54 mm pitch and a wiring harness extending 8 inches, simplifying installation and integration into existing systems. The sensor operates on a voltage range of 6 to 24 VDC and provides an analog signal output from 0 to 180 OHM, enabling seamless compatibility with standard monitoring equipment. Its IP67 rating guarantees protection against dust and water ingress, ensuring reliable performance in challenging environments. The sensor's operating temperature span from -25°C to 65°C (-13°F to 149°F) provides flexibility for various climatic conditions, while the TE Superseal 2-Pole connector ensures secure and waterproof electrical connections. The product includes an installation kit, safety instructions, and detailed installation guidelines, making setup straightforward for qualified technicians. Designed with a compensation chamber for accurate readings, the Veratron Deep-Pipe Level Sender is an essential component for precise liquid level monitoring in demanding applications, delivering consistent performance and longevity. Please ensure that the sensor length is at least 4 mm greater than the distance from the base of your fuel tank once installed to guarantee optimal operation. This product is sold individually and may not be returned to the original point of purchase; contact the manufacturer directly for support or concerns.

Features:

• Tubular stainless steel construction for durability

• Suitable for fuel (petroleum, diesel, gasoline) and water

• 260 mm length for versatile installation

• Designed with small holes to prevent fuel sloshing

• Includes 5-hole SAE flange with 54 mm pitch

• Wiring harness with 8-inch length for easy connection

• Operates on 6 to 24 VDC power supply

• Provides an analog signal output from 0 to 180 OHM

• IP67 rated for dust and water resistance

• Temperature range: -25°C to 65°C (-13°F to 149°F)
