Veratron Deep-Pipe Level Sender - 310mm, 90 to 4 Ohm for Fuel and Water Tanks

Deep-Pipe Level Sender - 310mm - 90 to 4 OHM

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel


• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water


• Length: 310 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67


• Operating Temp.: -25C to 65C or -13F to 149F


• Operating Voltage: 6 to 24 VDC


• Compensation chamber


• Flange: 5-Hole SAE Flange 54mm PA66 GF30


• Wiring harness with length of 200 mm


• Signal ranges: 904 OHM


• IP67 protection rating


• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor


• Installation Kit


• Safety Instructions


• Installation Instructions

*Sold as an Individual

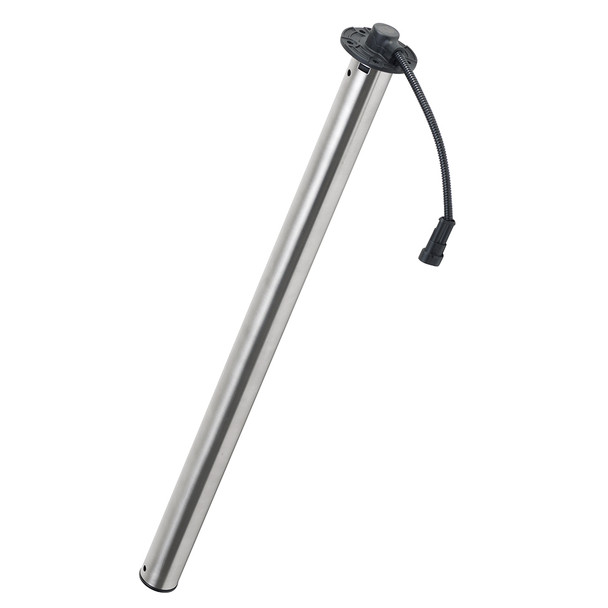

The Veratron Deep-Pipe Level Sender (Part Number: A2C1750250001) is a reliable sensor designed for precise liquid level measurement in fuel and water tanks. Its 310 mm stainless steel tubular construction ensures durability and resistance to harsh environments, making it suitable for various applications including diesel, gasoline, petroleum, and water containment. The sensor features a float mechanism within a 38 mm diameter tube, with small top and bottom baffles to prevent fuel sloshing, ensuring accurate readings even in turbulent sea conditions. This design maintains stable float positioning, which is critical for consistent level detection in mobile or stationary tanks.

The sensor employs a 2-pole TE Superseal connector rated IP67, providing a secure and waterproof connection. Operating within a temperature range of -25°C to 65°C (-13°F to 149°F), it is compatible with voltages from 6 to 24 VDC. The inclusion of a compensation chamber improves measurement stability, while the 5-hole SAE flange (54 mm) allows for straightforward installation. A wiring harness of 200 mm length simplifies setup, and the sensor's analog signal output ensures compatibility with various monitoring systems. The sensor's signal range of 904 ohms offers precise level indication, making it ideal for integration into fuel management systems.

This product is sold individually and includes an installation kit, safety instructions, and detailed installation guidelines. It is designed to be mounted with a minimum clearance of 4 mm from the base of the tank once installed. The Veratron Deep-Pipe Level Sender is built to withstand demanding conditions, providing consistent and accurate liquid level readings essential for fuel monitoring and water management applications.

Features:

• Tubular sensor made of stainless steel for durability and corrosion resistance

• Suitable for measuring levels in fuel (oil, petroleum, diesel, gasoline) and water tanks

• Length: 310 mm ensures compatibility with various tank sizes

• TE Superseal 2-pole connector with IP67 rating for waterproof connection

• Operating temperature range from -25°C to 65°C (-13°F to 149°F)

• Voltage range of 6 to 24 VDC for versatile power supply options

• Includes a compensation chamber for measurement stability

• 54 mm SAE flange with 5 holes facilitates easy installation

• Wiring harness length of 200 mm for flexible setup

• Analog signal output with a 904 ohm signal range for precise level measurement
