Veratron Deep-Pipe Level Sender 420mm - 0 to 180 Ohm for Fuel Tanks

Deep-Pipe Level Sender - 420mm - 0 to 180 OHM

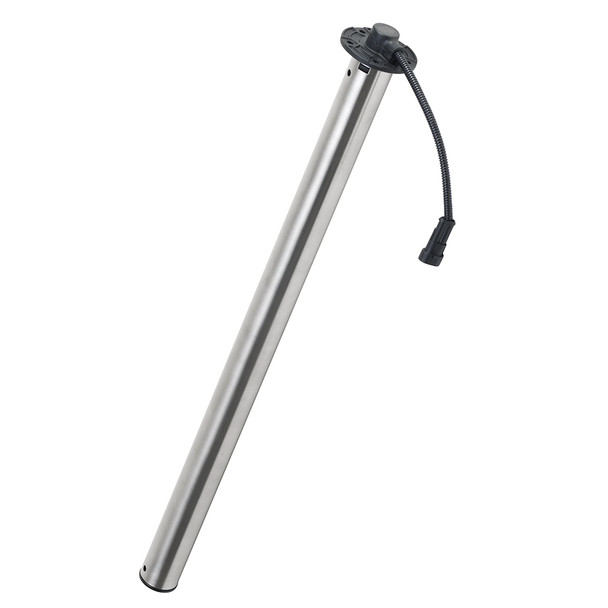

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel


• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water


• Length: 420 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67


• Operating Temp.: -25C to 65C or -13F to 149F


• Operating Voltage: 6 to 24 VDC


• Compensation chamber


• Flange: 5-Hole SAE Flange 54mm PA66 GF30


• Wiring harness with length of 200 mm


• Signal ranges: 0 to 180 OHM


• IP67 protection rating


• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor


• Installation Kit


• Safety Instructions


• Installation Instructions

*Sold as an Individual

The Veratron Deep-Pipe Level Sender (Part Number A2C1744430001) is designed for precise liquid level measurement in fuel tanks and water containers. Its 420 mm long stainless steel tubular sensor features a float mechanism inside a 38 mm diameter vertical tube, providing accurate level readings even in challenging conditions. The inclusion of small holes at the top and bottom of the tube acts as a baffle to minimize fuel sloshing, ensuring stable measurements regardless of sea state or vehicle movement.
Constructed from durable stainless steel, this sensor is suitable for use with various liquids including gasoline, diesel, petroleum, and water. Its robust design incorporates a TE Superseal 2-Pole IP67 connector, enabling reliable performance in harsh environments. The sensor operates within a temperature range of -25°C to 65°C (-13°F to 149°F) and supports an operating voltage of 6 to 24 VDC. The built-in compensation chamber helps maintain accuracy over temperature variations, while the 5-hole SAE flange (54mm, PA66 GF30) facilitates secure mounting. The wiring harness, measuring 200 mm in length, ensures straightforward installation.
The signal output is an analog resistance range from 0 to 180 Ohms, which can be integrated with vehicle or tank monitoring systems for real-time level readings. The sensor's IP67 protection rating guarantees resistance to dust and water ingress, making it suitable for outdoor and marine applications. Included in the package are the Deep-Pipe Level Sensor, installation kit, safety instructions, and detailed installation guidance. Please ensure the sensor length is selected to be at least 4 mm above the tank base once installed for optimal performance. This product is sold individually and is not eligible for return to the point of purchase; contact the manufacturer directly for support or concerns.

Features:

• Tubular stainless steel sensor for durability and corrosion resistance

• Suitable for fuel (petroleum, gasoline, diesel) and water applications

• 420 mm length ensuring compatibility with various tank depths

• Includes a 2-pole TE Superseal IP67 connector for reliable wiring

• Operates within a temperature range of -25°C to 65°C (-13°F to 149°F)

• Supports 6 to 24 VDC operating voltage

• s a 5-hole SAE flange (54 mm, PA66 GF30) for secure mounting

• Wiring harness length of 200 mm for straightforward installation

• Analog signal output with resistance range from 0 to 180 Ohms

• IP67 rated for dust and water resistance
