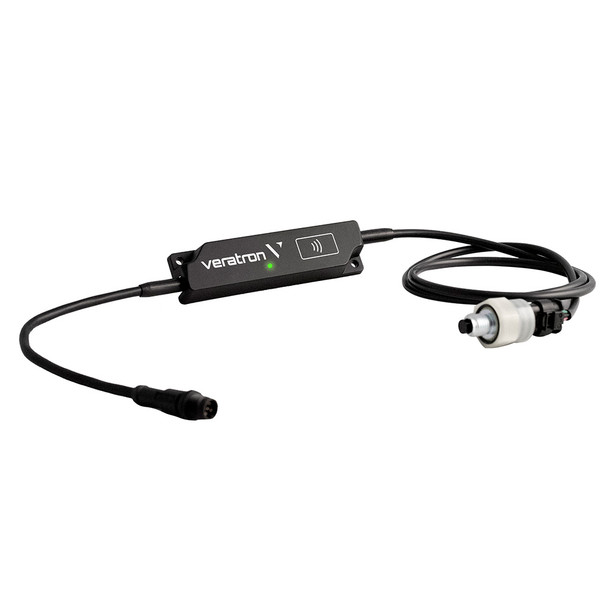

Veratron LinkUp B00070501 Intelligent Engine Oil Temperature & Pressure Sensor

LinkUp Intelligent Temperature Pressure

This Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000 standard.

Features:

• Interface to the new electronic 2-in-1 sensor


• Oil Temperature and Pressure in a single sensor


• Rugged and reliable design derived from the automotive field


• ASIC-controlled sensor


• PWM (Pulse Width Modulated) output to transmit both pressure and temperature

Technical Specifications:

• M12 mounting thread


• IP 69/K protection class


• 5V power feed provided by the LinkUp


• Temperature accuracy 1K in the 135 C 160 C range


• Pressure accuracy 0.2 bar (range 0.5 3 bar), 0.1 bar below and 0.3 bar above


• Temperature range: -40 C + 160 C


• Pressure range: 0.5 to 10.5 bar


• 1M cable length

The Veratron LinkUp B00070501 is a sophisticated sensor designed to monitor engine oil temperature and pressure simultaneously, providing critical data for vehicle management systems. This compact, automotive-grade sensor transmits information via PWM output, compatible with the NMEA 2000 standard, ensuring seamless integration with marine and vehicle networks. Its rugged construction and reliable performance make it an ideal choice for demanding environments where accurate engine monitoring is essential. The sensor features an M12 mounting thread for secure installation and is IP69/K rated for protection against dust and water ingress, making it suitable for challenging conditions. With a 5V power supply provided by the LinkUp system, it offers high-precision measurements: temperature accuracy within 1K in the 135°C to 160°C range, and pressure accuracy of 0.2 bar within a 0.5 to 3 bar range, with slightly higher precision below and above this range. The device supports a temperature range from -40°C to +160°C and a pressure range from 0.5 to 10.5 bar, ensuring comprehensive engine monitoring capabilities. The sensor includes a 1-meter cable for flexible installation options, enabling easy integration into existing systems. Its robust ASIC-controlled design guarantees consistent performance, while the dual measurement capability reduces the need for multiple sensors, simplifying maintenance and installation. Please note that this product may not be returned to the point of purchase; for any issues or concerns, contact Veratron directly for support. The LinkUp B00070501 is an essential component for fleet operators, vehicle technicians, and marine professionals seeking reliable engine data in a compact, durable package.

Features:

• Interface to the new electronic 2-in-1 sensor

• Oil Temperature and Pressure in a single sensor

• Rugged and reliable design derived from the automotive field

• ASIC-controlled sensor for consistent performance

• PWM (Pulse Width Modulated) output transmits both pressure and temperature
