Description

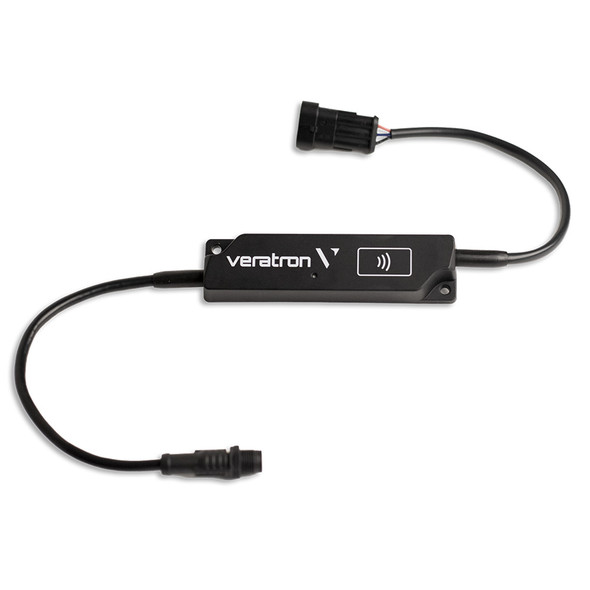

LinkUp - Pyrometer Kit
The system includes a Veratron LinkUp Gateway Module that enables the Pyrometer Sensor to be connected to and compatible with the NMEA 2000 network. Its internal galvanic isolation decouples the backbone power from the LinkUp power supply, per NMEA requirement.
Configuring a LinkUp gateway is simple using a mobile device and the companion Veratron app available from the App Store and Google Play. Each module has a built-in passive wireless antenna. The parameters of the sensor are configured to type, instance and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.
Alternatively, LinkUp devices can be configured via NMEA 2000 with the PC Configuration Tool. This method additionally allows for real-time reading of the analog signal. An LED on the device will illuminate, notifying the user that the LinkUp is being configured.
*Includes sensor and Link Up Gateway.
Features:
- NMEA 2000 certified
- Wireless configuration through companion mobile App
- Status LED
- Plug-and-Play installation and configuration
- Input Signal - LIN bus
- Nominal Voltage - 12V
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.The Veratron LinkUp Pyrometer Kit provides a comprehensive solution for temperature measurement integration with NMEA 2000 networks. The kit includes a Veratron LinkUp Gateway Module and a pyrometer sensor, enabling seamless wireless connection and data communication. The Gateway Module features galvanic isolation, which ensures the backbone power remains decoupled from the LinkUp power supply, adhering to NMEA 2000 standards. This design enhances system reliability and safety, making it suitable for marine and industrial applications. The system's plug-and-play nature simplifies installation, allowing users to quickly set up and calibrate the sensor using a mobile device with the Veratron app, available on both the App Store and Google Play. Configuration involves selecting sensor parameters such as type, instance, and warning thresholds, which can be transferred wirelessly to the device for instant data access. Alternatively, the Gateway can be configured via NMEA 2000 with a PC configuration tool, providing real-time analog signal readings and status updates via an integrated LED indicator. The device's input signal is compatible with LIN bus, and it operates on a nominal 12V supply, ensuring compatibility with standard vessel power systems. The kit is ideal for applications requiring precise temperature monitoring with minimal setup effort and reliable wireless connectivity, supporting efficient system management and troubleshooting. The package is sold as an individual unit, and detailed installation instructions are available through the included owner’s manual link. The LinkUp Pyrometer Kit is designed for professional use, ensuring compatibility and ease of use in demanding environments. Please note, this product is non-returnable to the original point of purchase; contact Veratron directly for support or warranty concerns.
Features:
- NMEA 2000 certified for seamless marine network integration
- Wireless configuration via Veratron mobile app for quick setup
- Status LED indicator for real-time device status monitoring
- Plug-and-play installation simplifies setup process
- Input Signal: LIN bus for versatile sensor integration
- Operational voltage: 12V nominal ensuring compatibility with most systems
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/87402OM.pdf |
