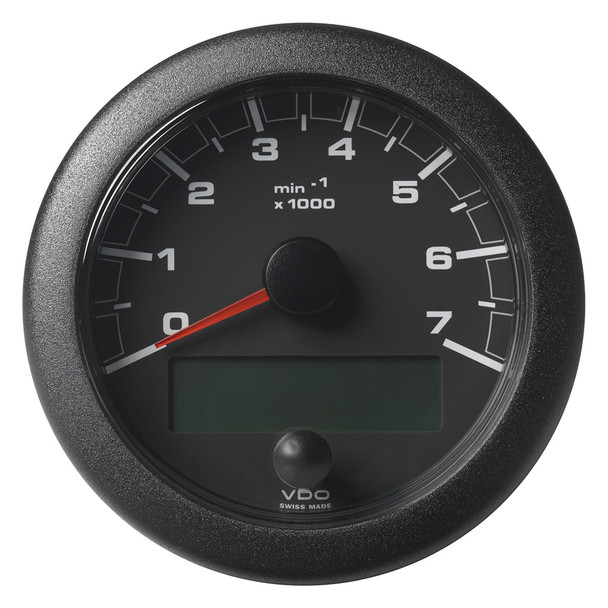

Veratron OceanLink 3-3/8" (85mm) NMEA 2000 Tachometer with Black Dial and Bezel - 7000 RPM

3-3/8" (85MM) OceanLink NMEA 2000 Tachometer - 7000 RPM - Black Dial Bezel

The new OceanLink Tachometer automatically presents all the key data ranging from oil pressure and fuel consumption to operating hours on a generously proportioned inverted dot matrix digital display. Besides a CAN interface with NMEA 2000 certified and SAE J1939 data protocol it features two inputs for analog sensors. The innovative EasyLink data connection makes the installation easy and cost effective. Satellite instruments for further dynamic measurement values receive updates from the central instrument every 20 msec

Ocean Link Technical Information:

• 1x NMEA 2000 input


• 1x J1939 and analog input


• Reverse polarity protection


• Protection rating IPX5


• Operating temperature range -20 C / +70 C


• 12/24V

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Veratron OceanLink Tachometer offers precise engine performance monitoring with a large 3-3/8 inch (85mm) digital display, providing critical data such as RPM, oil pressure, fuel consumption, and operating hours. Its inverted dot matrix digital screen ensures clear visibility in various lighting conditions, making it an essential instrument for marine and industrial applications.

Designed for easy integration, the OceanLink Tachometer features a CAN interface with NMEA 2000 certification and supports SAE J1939 data protocols. It includes two inputs for analog sensors, allowing users to connect additional measurement devices seamlessly. The innovative EasyLink data connection simplifies installation, reducing setup time and costs. The instrument updates satellite instruments every 20 milliseconds, ensuring real-time data accuracy for dynamic measurement values.

Built with durability in mind, this tachometer has reverse polarity protection and an IPX5 protection rating, making it resistant to water and environmental contaminants. It operates within a temperature range of -20°C to +70°C and supports both 12V and 24V power systems, making it versatile for various marine and vehicle applications. Its sleek black dial and bezel design provide a professional appearance suitable for modern dashboards and control panels.

Note that this product complies with safety standards but may contain chemicals such as lead, which are known to cause health issues. Proper handling and disposal are recommended. For support or warranty inquiries, contact the manufacturer directly, as returns to the original point of purchase may not be accepted.

Features:

• Large 3-3/8 inch (85mm) digital display for clear readability

• Supports NMEA 2000 and SAE J1939 data protocols for easy integration

• Two analog sensor inputs for additional measurement options

• EasyLink data connection simplifies installation process

• Real-time updates every 20 milliseconds for accurate data monitoring

• Reverse polarity protection ensures reliable operation

• Water-resistant with IPX5 rating for durability in marine environments

• Operates within a wide temperature range from -20°C to +70°C

• Supports both 12V and 24V power systems for versatile use
