Description

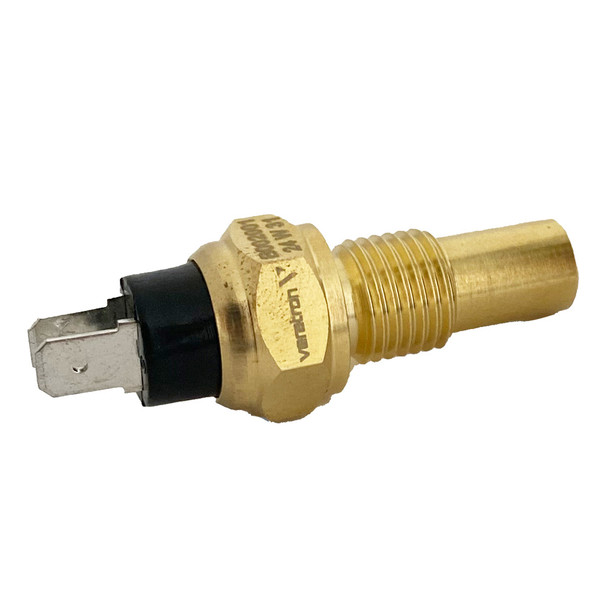

Water Temperature Sensor - 1/4-18NPT Thread - 120C Temp Range
These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.
Features:
- Function - Oil temperature, coolant temperature
- Length - 28.5mm (1-1/8)
- Thread - 1/4-18NPT
- Calibration - 120C
- Measurement Range - 120C
- Output Signals - Resistive
- IP67
- Insulated ground pin
The Veratron Water Temperature Sensor B002000 is designed for accurate temperature measurement in various industrial and automotive applications. Encased in a durable brass housing, this resistive sensor features a 1/4-18NPT thread for secure installation in fluid systems. It supports temperature monitoring up to 120°C (248°F), making it suitable for oil and coolant temperature detection. The sensor's output is resistive, providing reliable signals for temperature control systems. Its compact length of approximately 1.1 inches allows for flexible placement in tight spaces. The inclusion of an insulated ground pin ensures signal integrity and reduces interference. Certified with an IP67 rating, the sensor is dust-tight and water-resistant, suitable for harsh environments. Easy to install and compatible with a wide range of systems, this sensor is an essential component for maintaining optimal operating conditions in mechanical and automotive systems. Whether used for monitoring engine coolant or oil temperature, the Veratron B002000 provides precise data essential for system performance and safety.
Features:
- Function: Oil temperature, coolant temperature
- Housing Material: Brass
- Thread Size: 1/4-18NPT
- Measurement Range: Up to 120°C (248°F)
- Calibration: 120°C
- Sensor Length: Approximately 1.1 inches
- Output Signal: Resistive
- Ingress Protection: IP67
- Ground Pin: Insulated for signal stability
