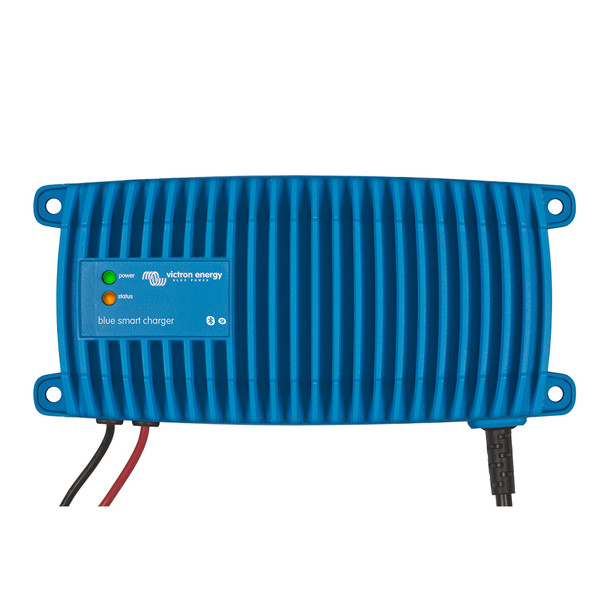

Victron BlueSmart IP67 12V DC 7A Charger - Wireless Bluetooth Monitoring and Adaptive Charging

BlueSmart IP67 Charger - 12 VDC - 7AMP

Features:

• Bluetooth Smart enabled The Blue Smart IP67 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available. With Bluetooth, the functionality of the IP67 charger is enhanced and is similar to that of our IP22 and IP65 chargers.


• Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Blue Smart IP67 Charger. The casing is made of cast aluminium and the electronics are moulded in resin.


• The highest efficiency ever! Setting a new industry standard: with 92% efficiency or better, these chargers waste three to four times less heat. And once the battery is fully charged, power consumption reduces to less than a Watt, some five to ten times better than the industry standard.


• Adaptive 5-stage charge algorithm: bulk absorption recondition float storage The Blue Smart Charger features a microprocessor controlled adaptive battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.


• Storage Mode: Less maintenance and aging when the battery is not in use The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to equalize the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.


• Also charges Li-ion batteries and LiFePO4 batteries are charged with a simple bulk absorption float algorithm.


• Protected against overheating Can be used in a hot environment such as a machine room. Output current will reduce as temperature increases up to 60C, but the charger will not fail.


• Two LEDs for status indication Yellow LED: bulk charge (blinking fast), absorption (blinking slow), float (solid), storage (off) Green LED: power on

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron BlueSmart IP67 Charger is a robust and highly efficient 12V DC power solution designed for demanding environments. Featuring Bluetooth Smart connectivity, this charger allows for seamless wireless monitoring of voltage and current, enabling users to modify settings and perform firmware updates remotely. Its waterproof, shockproof, and ignition-protected casing, made of cast aluminum with resin-molded electronics, ensures reliable operation in harsh conditions such as water exposure, oil, and dirt. The advanced design enhances safety and durability, making it suitable for various industrial and marine applications.
Built with industry-leading efficiency, the BlueSmart IP67 Charger achieves over 92% efficiency, significantly reducing heat generation and power waste. Once the battery reaches full charge, power consumption drops to less than one watt, which is about five to ten times better than standard chargers. Its microprocessor-controlled adaptive five-stage charging algorithm optimizes the charging process according to the battery's usage, ensuring fast, safe, and complete charging cycles. This algorithm includes bulk, absorption, reconditioning, float, and storage modes, helping to extend battery life and performance.
In storage mode, the charger minimizes battery aging by reducing float voltage when the battery remains undischarged for over 24 hours. It periodically recharges to prevent electrolyte stratification and sulfation, common culprits of early battery failure. Compatible with lithium-ion and LiFePO4 batteries, the charger employs a simple bulk, absorption, and float charging sequence for these chemistries, providing versatile and reliable support for different battery types.
Designed with safety in mind, the charger is protected against overheating, with output current decreasing in high-temperature environments up to 60°C, ensuring continuous operation without failure. Status indicators include two LEDs: a yellow LED shows charging states (blinking fast during bulk, blinking slow during absorption, solid during float, and off during storage), while a green LED indicates power status. This visual feedback simplifies monitoring and troubleshooting. Overall, the Victron BlueSmart IP67 Charger offers a durable, efficient, and smart charging solution for various applications requiring reliable power management in challenging environments.

Features:

• Bluetooth Smart enabled for wireless voltage, current monitoring, and firmware updates

• Completely encapsulated for waterproof, shockproof, and ignition protection

• Industry-leading efficiency of over 92%, reducing heat and power waste

• Adaptive 5-stage charging algorithm: bulk, absorption, reconditioning, float, and storage

• Storage mode minimizes battery aging during periods of non-use

• Compatible with Li-ion and LiFePO4 batteries, utilizing simple bulk, absorption, and float charging

• Overheat protection with output current reduction up to 60°C

• Status LEDs indicating charging states and power status
