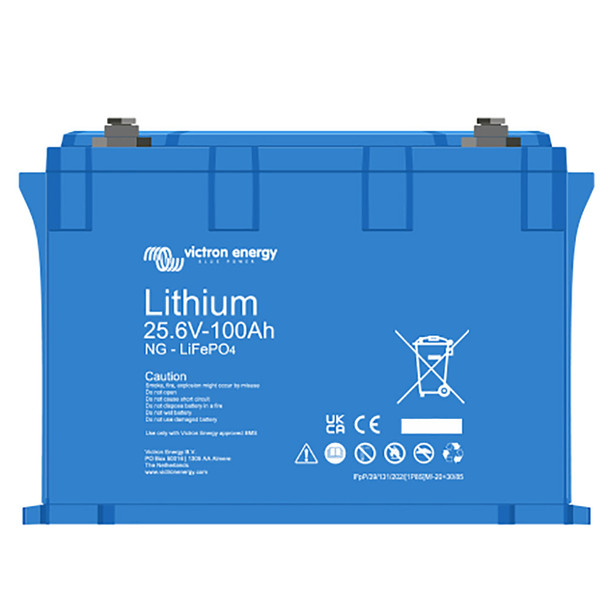

Victron Energy 24VDC 100Ah Lithium NG Smart LifePO4 Battery - Reliable Power Storage

Lithium Battery 24VDC 100Ah NG Smart LifePO4

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures


• Maximum single bank size increased to 385kWh


• Modules available in 12, 24 and 48V


• Protection class IP65


• Bracket mounting and strap mounting

The Victron Energy 24VDC 100Ah Lithium NG Smart LifePO4 Battery is an advanced energy storage solution designed for demanding applications. Built on the next-generation NG series platform, this battery offers significant improvements over previous models, including enhanced monitoring capabilities and increased capacity. Its robust construction and sophisticated management system make it ideal for both residential and commercial energy systems, ensuring dependable performance and long-term durability. The lithium iron phosphate (LiFePO4) chemistry provides a safe, stable, and environmentally friendly power source with a low self-discharge rate, supporting reliable operation over years of use. This battery can be integrated into versatile configurations by connecting multiple units in series or parallel, enabling system voltages of 12V, 24V, or 48V, and accommodating large-scale energy needs up to 385kWh per bank in 24V systems. Its IP65-rated enclosure ensures protection against dust and low-pressure water jets, making it suitable for outdoor and challenging environments. Equipped with an integrated shunt, the battery transmits real-time data such as voltage, current, and temperature to the BMS, which evaluates the state of charge and health status. Monitoring and control are simplified through the VictronConnect app, GX communication centers, or the VRM portal, providing users with instant access to critical parameters like cell voltages and temperatures. The system's automatic setup detects the configuration and system voltage, streamlining installation and operation. Easy-to-mount brackets facilitate secure installation, while the sealed design ensures safety and longevity even in dusty or moist environments. With a maximum monthly self-discharge rate of only 2%, this battery maintains high performance and readiness over extended periods of inactivity. Suitable for large-scale energy storage projects, the Victron Lithium NG battery combines innovative features with reliable operation, making it an excellent investment for sustainable energy systems. Please contact your dealer for support, repairs, or returns related to this product. For detailed installation and operation instructions, refer to the available owners manual at the provided link.

Features:

• Enhanced monitoring with read-out of cell voltages and temperatures

• Increased single bank capacity up to 385 kWh in 24V configurations

• Available in 12V, 24V, and 48V modules for flexible system design

• IP65-rated enclosure for protection against dust and water jets

• Easy mounting brackets for secure installation

• Low self-discharge rate of up to 2% per month for long-term reliability

• Integrated shunt for real-time data transmission to BMS

• Automatic system detection and configuration via VictronConnect app or GX device

• Supported by VictronConnect, GX communication center, and VRM portal for remote monitoring

• Robust LiFePO4 chemistry ensuring safety and environmental benefits
