Description

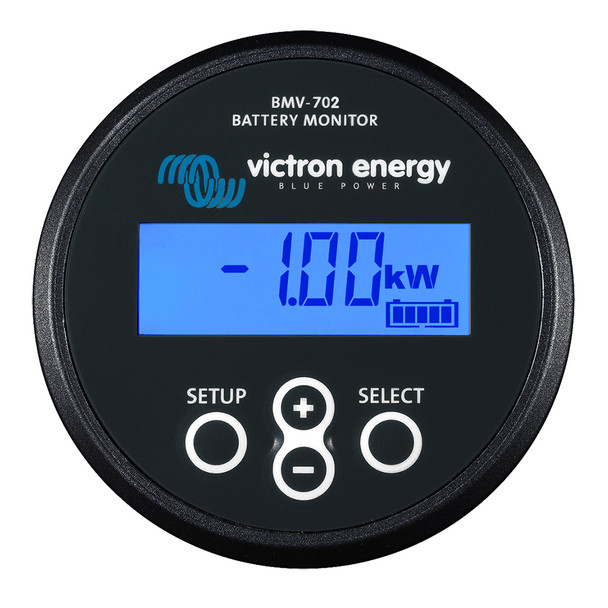

Battery Monitor - BMV-702 - Black
Features:
- Battery fuel gauge, time-to-go indicator, and much more The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts. The BMV-702 features an additional input which can be programmed to measure the voltage (of a second battery), battery temperature or midpoint voltage (see below).
- Bluetooth Smart Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.
- Easy to install All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed. Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.
- Easy to program (with your smartphone!) A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings. Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)
- Standard features - Battery voltage, current, power, ampere-hours consumed and state of charge - Remaining time at the current rate of discharge - Programmable visual and audible alarm - Programmable relay, to turn off non critical loads or to run a generator when needed - 500 Amp quick connect shunt and connection kit - Shunt selection capability up to 10.000 Amps - VE.Direct communication port - Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health - Wide input voltage range: 6,5 95V - High current measurement resolution: 10 mA (0,01A) - Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Victron Energy BMV-702 Battery Monitor provides comprehensive real-time data for your battery system, ensuring optimal performance and longevity. This high-precision device displays essential parameters such as voltage, current, ampere-hours consumed, and state of charge, allowing you to monitor your battery's health accurately. Its advanced software algorithms account for variables like discharge current, temperature, and battery age, giving you precise remaining capacity and estimated time to go based on current usage. The BMV-702 also offers an additional programmable input, which can measure voltage, temperature, or midpoint voltage, providing flexibility for various battery configurations and monitoring needs. Its user-friendly interface includes a quick install menu and detailed setup options accessible via a smartphone app with Bluetooth Smart technology, simplifying configuration and real-time monitoring.
Features:
- Battery fuel gauge, time-to-go indicator, and detailed capacity metrics to optimize battery usage
- Bluetooth Smart compatibility allows monitoring via Apple or Android devices with the dedicated app
- Simple installation with quick connect PCB, RJ12 cable, and included mounting hardware
- Intuitive setup with on-screen menus and smartphone app assistance for quick configuration
- Standard features include voltage, current, power, ampere-hours consumed, and state of charge display
- Remaining discharge time estimation and programmable visual and audible alarms for proactive management
- Programmable relay for load management or generator control to prevent over-discharge
- Includes a 500 Amp quick connect shunt with the capacity to measure up to 10,000 Amps
- VE.Direct communication port for seamless data integration and logging
- Historical event storage for analyzing usage patterns and monitoring battery health over time
- Wide input voltage range from 6.5V to 95V, suitable for various battery systems
- High current measurement resolution of 10 mA for precise readings
- Low power consumption of approximately 3-4 mA, ensuring minimal drain on your power source
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/82420OM.pdf |
