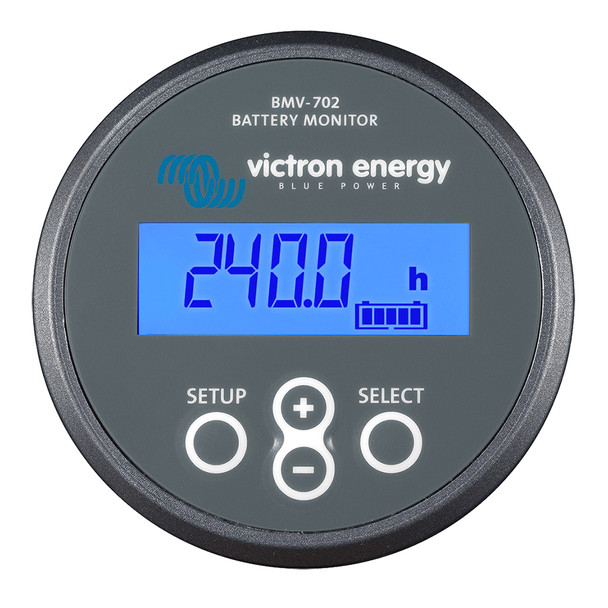

Victron Energy BMV-702 Battery Monitor - Grey for Advanced Battery Management

Battery Monitor - BMV-702 - Grey

Features:

• Battery fuel gauge, time-to-go indicator, and much more The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts. The BMV-702 features an additional input which can be programmed to measure the voltage (of a second battery), battery temperature or midpoint voltage (see below).


• Bluetooth Smart Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.


• Easy to install All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed. Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.


• Easy to program (with your smartphone!) A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings. Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)


• Standard features - Battery voltage, current, power, ampere-hours consumed and state of charge - Remaining time at the current rate of discharge - Programmable visual and audible alarm - Programmable relay, to turn off non critical loads or to run a generator when needed - 500 Amp quick connect shunt and connection kit - Shunt selection capability up to 10.000 Amps - VE.Direct communication port - Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health - Wide input voltage range: 6,5 95V - High current measurement resolution: 10 mA (0,01A) - Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy BMV-702 Battery Monitor in grey provides comprehensive real-time insights into your battery system’s performance and health. Featuring a battery fuel gauge, state of charge, time-to-go indicator, and power consumption in Watts, this monitor helps you optimize your energy usage efficiently. It accounts for variables such as ampere-hours consumed, discharge current, temperature, and battery age through sophisticated software algorithms, ensuring accurate capacity readings. In addition to standard metrics like voltage, current, and ampere-hours, the BMV-702 includes a programmable input that can measure the voltage of a second battery, battery temperature, or midpoint voltage, offering versatile monitoring tailored to your setup.

Features:

• Battery fuel gauge, state of charge, time-to-go indicator, and power consumption in Watts for comprehensive battery management

• Additional input programmable for measuring second battery voltage, temperature, or midpoint voltage for enhanced versatility

• Bluetooth Smart capability with optional dongle for remote monitoring via Apple and Android smartphones, tablets, and other devices

• Simple installation with quick connect PCB and standard RJ12 cable, including a 10-meter connection cable and a 2-meter battery cable with fuse

• User-friendly programming through smartphone app or quick install menu, with detailed setup options and scrolling texts for easy configuration

• Standard features include measurement of voltage, current, power, ampere-hours, and state of charge, along with remaining discharge time

• Programmable visual and audible alarms to alert you of critical battery conditions

• Programmable relay to disconnect non-critical loads or activate a generator when necessary

• Supports high current measurement with shunt options up to 10,000 amps and a 500-amp quick connect shunt

• VE.Direct communication port for data integration and monitoring

• Stores historical data to evaluate battery usage patterns and health

• Wide input voltage range from 6.5V to 95V, suitable for various systems

• High measurement resolution of 10 mA (0.01A) for precise readings

• Low power consumption at approximately 2.9 Ah per month at 12V and 2.2 Ah at 24V, ensuring minimal drain on your battery

• Compact design with included mounting bezel, securing ring, and screws for versatile installation
