Victron Energy BMV-710H Smart High Voltage Battery Monitor (60-385VDC)

BMV-710H Smart High Voltage Battery Monitor (60-385VDC)

The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

This battery monitor can calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.

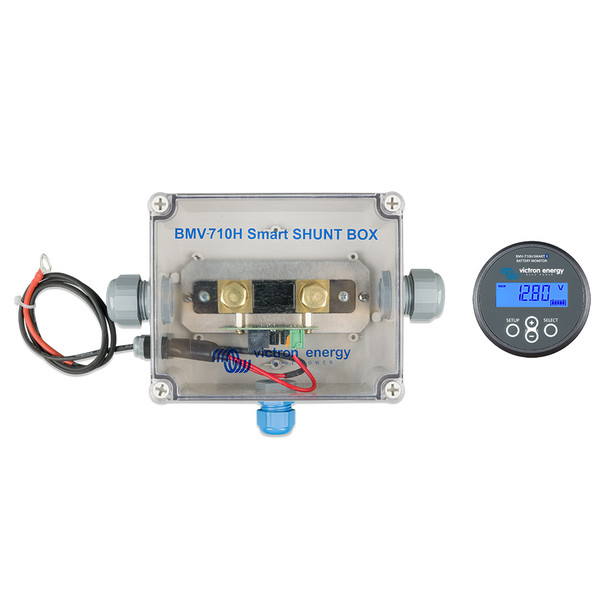

The monitor comes with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500 A/50 mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.

Battery fuel gauge, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, and temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.

Bluetooth Smart

Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, Macbooks and other devices.

Easy to Install

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); No other components are needed.

Also included are a separate front bezel for a square or round display appearance and a securing ring for the rear mounting and screws for the front mounting.

Easy to Program (with your smartphone!)

A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.

Alternatively, choose the fast and easy solution: Download the smartphone app (Bluetooth Smart Dongle needed)

Features:

• Battery voltage, current, power, ampere-hours consumed, and state of charge


• Remaining time at the current rate of discharge


• Programmable visual and audible alarm


• Programmable relay, to turn off non critical loads or run a generator when needed


• 500 Amp quick connect shunt and connection kit


• Shunt selection capability up to 10,000 amps


• VE.Direct communication port


• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health


• Wide input voltage range: 6.5 95V


• High current measurement resolution: 10 mA (0.01A)


• Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V

BMV-710H Specifications:

• Supply Voltage Range: 60 385 VDC


• Current Draw, Back Light Off: < 4mA


• Input Voltage Range, Auxiliary Battery: n. a.


• Battery Capacity (Ah): 1 - 9999 Ah


• Operating Temperature Range: -40 +50C (-40 - 120F)


• Measures Voltage of Second Battery, or Temperature, or Midpoint: No


• Temperature Measurement Range: n. a.


• VE.Direct Communication Port: Yes


• Relay: 60V / 1A normally open (function can be inverted)

Resolution Accuracy (with a 500 A shunt):

• Current: 0.01A


• Voltage: 0.01V


• Amp Hours: 0.1 Ah


• State of Charge: (0 100%) 0.1%


• Time to Go: 1 min


• Temperature: n. a.


• Accuracy of Current Measurement: 0.4%


• Accuracy of Voltage Measurement: 0.3%

Installations Dimensions:

• Installation: Flush mount


• Front: 63mm diameter


• Front Bezel: 69 x 69 mm (2.7 x 2.7 inch)


• Shunt Connection Bolts: M10 (0.3937 inch)


• Body Diameter and Depth: 52 mm (2.0 inch) and 31 mm (1.2 inch)


• Protection Category: IP55 (not intended for outdoor use)

Standards:

• Safety: EN 60335-1


• Emission / Immunity: EN 55014-1 / EN 55014-2


• Automotive: ECE R10-4 / EN 50498

Accessories:

• Shunt (included): 500A / 50mV


• Cables (included): 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for + connection


• Temperature Sensor: Optional (ASS000100000)


• Please contact your dealer for any returns, repairs or support issues related to this product.

The Victron Energy BMV-710H Smart High Voltage Battery Monitor is an advanced device designed for precise battery management in high-voltage applications ranging from 60V to 385VDC. This monitor features Bluetooth connectivity, allowing seamless wireless communication with smartphones or tablets via the VictronConnect App. Users can easily access real-time battery parameters such as state of charge, remaining runtime, historical data, and power consumption metrics, providing comprehensive insight into battery health and performance.

Equipped with a 500 Amp/50 mV shunt housed in a dedicated enclosure for high voltage safety, the BMV-710H integrates complex software algorithms to accurately calculate the state of charge by monitoring ampere-hours consumed, discharge rate, temperature, and battery age. The device displays voltage, current, power in watts, and ampere-hours directly on the monitor, with additional features like programmable alarms and relays to automate load management or generator operation based on user-defined thresholds.

Installation is straightforward, utilizing a quick connect PCB and standard RJ12 cables, with included mounting rings, bezels, and fuse protection to ensure secure setup. The monitor supports VE.Direct communication for integration with other systems and stores extensive historical data to analyze usage patterns and assess battery longevity. Its wide input voltage range and high current measurement resolution make it suitable for diverse high-voltage battery systems, from marine to off-grid renewable energy setups.

The BMV-710H’s compact design features a 63mm diameter front panel with IP55 protection, suitable for indoor use in demanding environments. Its low power consumption and compliance with international safety standards ensure reliable, long-term operation. Whether for monitoring large battery banks or critical power systems, the Victron Energy BMV-710H offers precise, user-friendly, and scalable battery management tailored to high-voltage applications.

Features:

• Battery voltage, current, power, ampere-hours consumed, and state of charge display

• Remaining time calculation at current discharge rate

• Programmable visual and audible alarms for critical conditions

• Programmable relay to disconnect non-critical loads or activate a generator

• Includes 500 Amp/50 mV quick connect shunt with connection kit

• Supports shunt selection up to 10,000 amps for larger systems

• VE.Direct communication port for system integration

• Stores extensive historical event data for analysis

• Wide input voltage range from 60V to 385VDC

• High-resolution current measurement at 10 mA (0.01A)

• Low power consumption of approximately 2.9Ah per month at 12V

• Compact flush mount installation with IP55 protection
