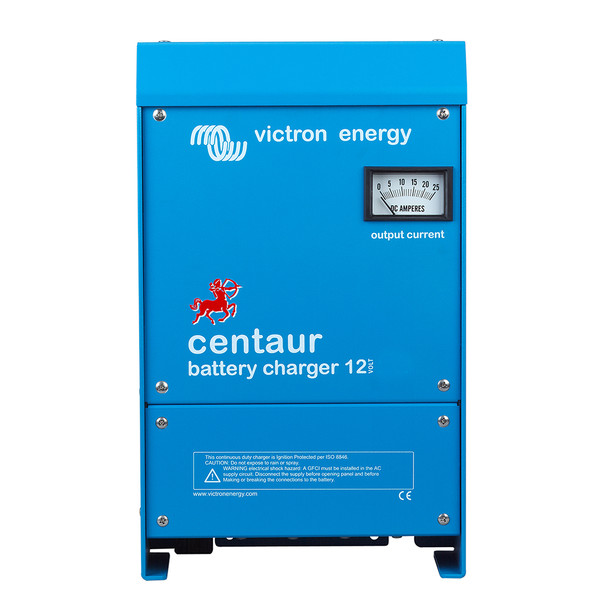

Victron Energy Centaur Charger 12 VDC 80 Amp 3-Bank Model CCH012080000

Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.


• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.


• The chargers also accept a 90-400 V DC supply.


• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.


• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with 2 mV/C ( 1 mV/F) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Centaur Charger Model CCH012080000 is a versatile and durable 12 VDC battery charger designed for demanding environments. Featuring an aluminium epoxy powder-coated case with a drip shield and stainless steel fixings, this charger withstands harsh conditions such as heat, humidity, and salt air. Its acrylic-coated circuit boards provide maximum corrosion resistance, ensuring reliable operation over time. Integrated temperature sensors monitor environmental conditions, automatically adjusting output current to protect internal components and optimize charging efficiency. The charger supports a wide input voltage range from 90 to 265 volts AC, accommodating both 50Hz and 60Hz frequencies, and can also accept a 90 to 400 V DC supply, making it suitable for various power sources.
With three isolated outputs, each capable of supplying the full rated current of 80 amps, this model can simultaneously charge three separate battery banks. Its three-stage charging process includes bulk, absorption, and float phases, with built-in temperature compensation of 2 mV per cell per degree Celsius. An adjustable DIP switch allows users to select optimal charge and float voltages tailored for flooded lead-acid, gel, or AGM batteries. The charger also incorporates a four-hour timer during the absorption phase, ensuring thorough and safe charging. Designed for reliability and adaptability, the Victron Centaur is ideal for marine, RV, and off-grid applications where robust performance is essential. For further details, consult the owner’s manual linked here: Owner's Manual.Note: This product may expose users to chemicals known to cause reproductive harm in California. For more information, visit P65Warnings.ca.gov. For support, returns, or repairs, please contact your dealer.Warranty information is available at Warranty Details.

Features:

• Durable aluminium epoxy powder-coated case with drip shield and stainless steel fixings for harsh environments

• Acrylic-coated circuit boards for maximum corrosion resistance

• Temperature sensors for automatic current reduction under extreme conditions

• Universal input voltage compatibility from 90 to 265 VAC and 90 to 400 VDC

• Supports both AC and DC power sources without adjustment

• Three isolated outputs capable of delivering full 80 amp current simultaneously

• Three-stage charging process with adjustable float and charge voltages

• Temperature compensation of 2 mV per cell per degree Celsius

• Four-hour timer during absorption phase for complete charging

• Suitable for flooded lead-acid, gel, and AGM batteries
