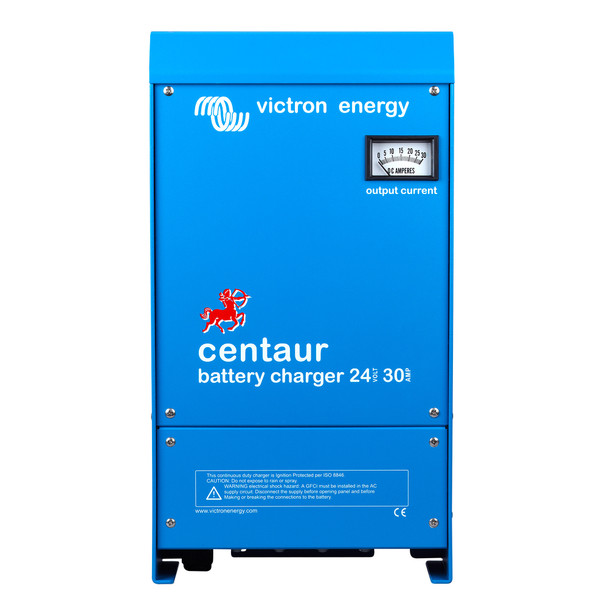

Victron Energy Centaur Charger 24 VDC, 30Amp, 3-Bank, 120-240VAC

Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.


• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.


• The chargers also accept a 90-400 V DC supply.


• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.


• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with 2 mV/C ( 1 mV/F) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Centaur Charger model CCH024030000 delivers reliable, high-performance charging for multiple battery banks in demanding environments. Designed with an aluminum epoxy powder-coated case, drip shield, and stainless steel fixings, this charger withstands harsh conditions such as heat, humidity, and salt air, making it suitable for marine, RV, and industrial applications. The circuit boards are protected with an acrylic coating for maximum corrosion resistance, while integrated temperature sensors ensure optimal operation by automatically reducing output current under extreme environmental conditions.

Featuring a universal input voltage range of 90-265V AC and compatibility with DC supplies from 90V to 400V, the Centaur Charger offers versatile power options without requiring adjustments, whether operating on 50Hz or 60Hz power sources. It includes three isolated outputs, each capable of delivering the full rated current, enabling simultaneous charging of three separate battery banks. This makes it ideal for complex systems requiring multiple battery setups, such as off-grid solar installations, marine vessels, or large RV systems.

The charger employs a sophisticated three-stage charging process with temperature compensation, ensuring batteries are charged efficiently and safely. It begins with a bulk charge until the output reduces to 70% of the rated amperage, then transitions to a float rate after a four-hour timer. The internal temperature sensor adjusts the charge voltage by 2 mV per degree Celsius or 1 mV per degree Fahrenheit per cell, optimizing charging for Flooded Lead-acid, Gel, or AGM batteries, with a DIP switch available to select the appropriate voltage settings. This precise control extends battery life and enhances overall system reliability.

For detailed warranty information, please visit Victron Energy Warranty. Please note that this product may contain chemicals known to cause reproductive harm according to California's Proposition 65; more information can be found at P65Warnings.ca.gov. For support, repairs, or returns, contact your dealer. Additional resources, including the owner’s manual, are available at this link.

Features:

• Durable aluminum epoxy powder-coated case with drip shield and stainless steel fixings for harsh environments

• Acrylic coating on circuit boards for maximum corrosion resistance

• Temperature sensors for automatic current reduction under extreme conditions

• Universal input voltage range of 90-265V AC and compatible with 90-400V DC supply

• Three isolated outputs capable of full rated current for charging multiple battery banks simultaneously

• Three-stage charging process with temperature compensation for optimal battery health

• Bulk, absorption, and float charge modes, with adjustable voltages for different battery types
