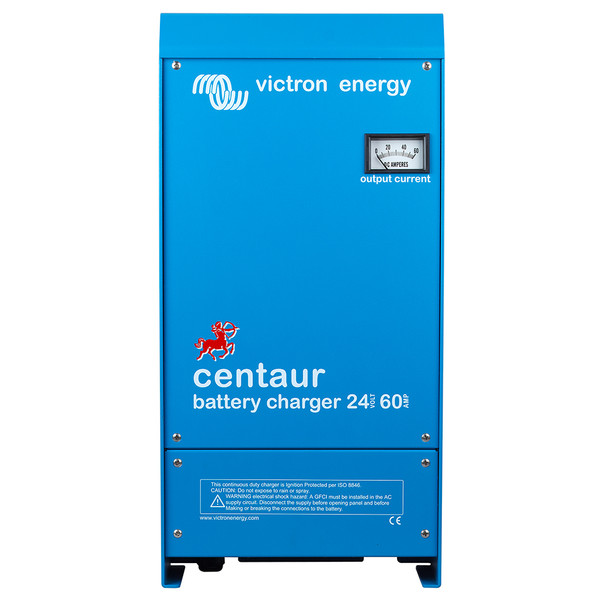

Victron Energy Centaur Charger 24 VDC 60AMP 3-Bank with Universal AC/DC Input

Centaur Charger - 24 VDC - 60AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.


• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.


• The chargers also accept a 90-400 V DC supply.


• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.


• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with 2 mV/C ( 1 mV/F) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Centaur Charger model CCH024060000 is designed for reliable and efficient battery charging in demanding environments. Featuring a robust aluminium epoxy powder-coated case with a drip shield and stainless steel fixings, this charger withstands heat, humidity, and salt air exposure, making it suitable for marine, RV, and industrial applications. The internal circuit boards are protected with an acrylic coating to maximize corrosion resistance, ensuring long-term durability. Advanced temperature sensors monitor operating conditions, automatically reducing output current when necessary to prevent overheating and ensure consistent performance. The charger supports a wide input voltage range from 90 to 265 volts AC, compatible with both 50 Hz and 60 Hz power supplies, and can also operate with DC input voltages from 90 to 400 volts, providing versatile power options for various setups. It features three independently isolated outputs, each capable of delivering the full rated current of 60 amps, allowing simultaneous charging of three separate battery banks without interference. The three-stage charging process includes bulk, absorption, and float phases, with temperature compensation to optimize charging across different battery types such as flooded lead-acid, gel, or AGM. An internal temperature sensor adjusts the charge voltage by 2 mV per degree Celsius per cell, maintaining battery health and longevity. A DIP switch allows users to select the most appropriate voltage settings for different battery chemistries, enhancing versatility and ease of use. The charger is engineered to provide consistent, safe, and efficient power delivery, supported by a comprehensive warranty. For detailed operation instructions, refer to the owner’s manual available online. Please note, this product may contain chemicals known to cause reproductive harm in California; more information is available at P65Warnings.ca.gov. For support, repairs, or returns, contact your dealer directly.

Features:

• Durable aluminium epoxy powder-coated case with drip shield and stainless steel fixings for harsh environments

• Acrylic-coated circuit boards for maximum corrosion resistance

• Temperature sensors for automatic current reduction under extreme conditions

• Universal input voltage range from 90 to 265 volts AC, compatible with 50 Hz and 60 Hz

• Accepts 90-400 V DC supply for versatile power options

• Three isolated outputs capable of delivering full rated current for simultaneous charging of three batteries

• Three-stage charging with temperature compensation for optimal battery health

• Selectable charge and float voltages for different battery chemistries (Flooded Lead-acid, Gel, AGM)
