Victron Energy GX LTE 4G-A Cellular Modem for GX Devices – North America

GX LTE 4G-A Cellular Modem for GX Devices - North America Only

The GX LTE 4G is an accessory for GX devices. It is a cellular modem that supports 2G, 3G, and 4G technologies. It provides mobile internet for the system and a connection to the Victron Remote Management (VRM) portal.

Built-in GPS Receiver

The GX LTE 4G includes a built-in GPS receiver. When the optional active GPS antenna is installed, the system can be tracked as well as geo-fenced on the VRM Portal.

The required accessory part number is GSM900200100 - Active GPS Antenna for GX GSM.

GX Compatibility

The GX LTE 4G can be used with any of the GX devices and requires Venus OS v2.60 or newer to be installed on the GX device.

SIM Card

It requires a SIM card in the Mini-SIM format.

When to Use a Mobile Router Instead

The GX LTE 4G provides an internet connection for the GX device only. There is no option to share the internet with laptops, phones, or other devices. For installations where more devices need internet, such as a yacht or RV, consider installing a mobile router instead.

Antennas and Accessories

A small indoor LTE antenna is included. Optionally, Victron sells an outdoor LTE antenna, which increases the range.

Part number GSM900100400 - Outdoor 4G GSM Antenna.

Specifications:

• Region: For North America


• Used Module: SIMCom, SIM7600A


• Supported LTE Bands: 2, 4, 12


• Supply Voltage Range: 8 - 70VDC


• Power Draw: 2.5W while 2G/3G/4G data transfer / <1.0W in idle mode / +0.4W if GPS is enabled


• Operating Temperature Range: -40 +50C (-40 - 120F)


• Power Cable (Included): 1.4m cable with inline fuse holder, terminal block, and 10mm ring terminals


• Inline Fuse (included): T3.15A250V

Communication Specifications:

• USB Communication Port: Fixed 1.0m cable with USB-A connector (connects to the GX device)


• LTE Antenna Connector: Type SMA Female (optional 4G outdoor antenna GSM900100400)


• GPS Antenna Connector: Type SMA Female (optional GPS antenna GSM900200100)


• GNSS: GPS/Beidou/GLONASS/GALILEO/QZSS


• SIM Card: Regular Mini SIM (supports both 1.8V and 3V)


• Data Transmission (max. Download/Upload) LTE Cat-1: 10 Mbps / 5 Mbps


• Data Transmission (max. Download/Upload) 3G (HSPA+): 42 Mbps / 5.76 Mbps


• Data Transmission (max. Download/Upload) 2G (EDGE): 236.8 Kbps / 236.8 Kbps


• Data Transmission (max. Download/Upload) 2G (GPRS): 85.6 Kbps / 85.6 Kbps


• Status Indicator: Blue LED

Installation Dimensions:

• Dimensions (l x w x h): 106 42.5 22mm


• Weight: 0.08kg (0.177lbs)


• Wire Gauge (power cable): 0.5..1.5mm2 / AWG 28..16 or use supplied power cable


• Recommended Fuse Size: 500mA @ 12V / 250mA @ 24V / 100mA @ 48V or use supplied inline fuse

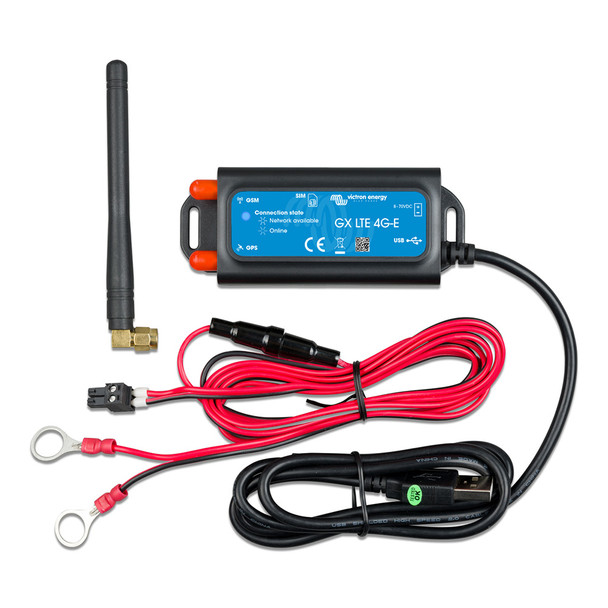

In the Box:

• GX LTE 4G (with integrated USB cable)


• GSM 2G/3G/4G mini-rod antenna (for indoor use)


• DC power cable (with inline fuse and terminal block)

Standrads:

• Safety: EN 60335-1 / EN 60335-2-29 / EN 62368-1


• Emission / Immunity: ECE R10-5


• QM: EN 9001:2015

The Victron Energy GX LTE 4G-A Cellular Modem is a versatile accessory designed to provide reliable mobile internet connectivity for GX series devices in North America. Supporting 2G, 3G, and 4G LTE technologies, this modem ensures your system stays connected via cellular networks, enabling remote monitoring and management through the Victron Remote Management (VRM) portal. Its compact form factor and integrated components make it suitable for various installation environments, including remote or off-grid applications.

Equipped with a built-in GPS receiver, the GX LTE 4G-A allows for precise location tracking and geo-fencing when paired with the optional active GPS antenna (part number GSM900200100). This feature enhances asset management and security by providing real-time location data accessible through the VRM portal. The modem requires a standard Mini-SIM card (supporting 1.8V and 3V) for operation and connects seamlessly via a USB port with a fixed 1-meter cable, ensuring straightforward integration with your GX device.

Designed exclusively for North American regions, the GX LTE 4G-A operates within LTE bands 2, 4, and 12, delivering download speeds up to 10 Mbps and upload speeds up to 5 Mbps under LTE Cat-1 standards. It also supports fallback to 3G (HSPA+) and 2G networks, providing flexibility in areas with varying coverage. The device is powered through a wide voltage range of 8 to 70 VDC, with low power consumption and stable operation across temperatures from -40°C to +50°C (-40°F to +120°F). Included with the device is a compact indoor LTE antenna, with an optional outdoor antenna available to extend range and improve signal quality in challenging environments.

Installation is straightforward, with dimensions optimized for space-constrained setups. The device includes a power cable with inline fuse, terminal block, and ring terminals for secure connections. Its status indicator features a blue LED to monitor operational status, while the device's robust design adheres to safety and emission standards such as EN 60335-1, EN 62368-1, and ECE R10-5, ensuring compliance and safety during use. Whether used in remote solar setups, off-grid power systems, or mobile applications, the Victron GX LTE 4G-A provides dependable cellular connectivity tailored for GX systems in North America.

Features:

• Supports 2G, 3G, and 4G LTE networks for versatile connectivity

• Built-in GPS receiver with optional active GPS antenna for location tracking and geo-fencing

• Compatible with GX devices running Venus OS v2.60 or newer

• Requires a standard Mini-SIM card for operation

• Compact design with integrated USB communication port for easy installation

• Operates within a wide voltage range of 8 to 70 VDC and supports temperature extremes from -40°C to +50°C

• Includes indoor LTE antenna; outdoor antenna available for extended range

• Supports LTE bands 2, 4, and 12, with download speeds up to 10 Mbps

• Low power consumption with power draw less than 2.5W during data transfer

• Conforms to safety and emission standards including EN 60335-1 and ECE R10-5
