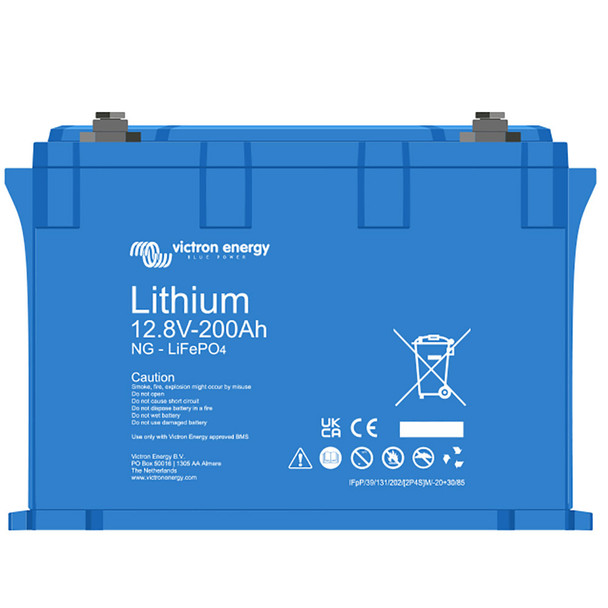

Victron Energy Lithium Battery 12V 200Ah NG Smart LifePO4 - Advanced Energy Storage Solution

Lithium Battery 12VDC 200Ah NG Smart LifePO4

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures


• Maximum single bank size increased to 385kWh


• Modules available in 12, 24 and 48V


• Protection class IP65


• Bracket mounting and strap mounting

The Victron Energy Lithium Battery 12V 200Ah NG Smart LifePO4 offers a reliable and sophisticated energy storage option for demanding applications. Built with Lithium Iron Phosphate (LiFePO4) chemistry, this battery provides a nominal voltage of 12.8V, making it suitable for a variety of off-grid, marine, and RV systems. Its modular design allows connection in series, parallel, or series/parallel configurations, supporting system voltages up to 48V and a maximum energy storage capacity of 385kWh, ideal for large-scale energy projects. The robust construction and intelligent management system ensure optimal performance, safety, and longevity in diverse environments.

Equipped with an integrated shunt, the battery continuously transmits data such as voltage, current, and temperature to the Battery Management System (BMS). This information is evaluated to determine the state of charge, enhancing system monitoring and control through the VictronConnect app, GX devices, or VRM Portal. The BMS automatically detects system configuration, making installation straightforward and reducing setup time. Real-time data on cell status, voltages, and temperatures can be accessed conveniently to maintain optimal operation and troubleshoot issues quickly. Firmware updates are handled automatically, ensuring the battery remains up-to-date with the latest features and safety protocols.

The battery features easy-to-mount brackets and straps for secure installation, reducing the risk of slipping or tipping. Its high ingress protection rating (IP65) ensures resistance to dust and low-pressure water jets, making it suitable for outdoor and harsh environments. The low self-discharge rate, limited to 2% per month, extends the battery's lifespan and preserves charge during periods of inactivity. This combination of durability, intelligent features, and ease of installation makes the Victron Energy Lithium NG series an excellent choice for those seeking dependable, scalable energy storage solutions.For additional support or warranty inquiries, please contact your dealer. Comprehensive owner’s manual and documentation are available online for detailed installation and operation instructions.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures

• Maximum single bank size increased to 385kWh

• Modules available in 12V, 24V, and 48V configurations

• Protection class IP65 for outdoor and rugged environments

• Bracket mounting and strap mounting for secure installation

• Integrated shunt for real-time data transmission and system monitoring

• Automatic system detection and configuration via BMS

• Bluetooth connectivity for easy monitoring with VictronConnect app

• Automatic firmware updates for enhanced safety and functionality

• Low self-discharge rate of up to 2% per month, ensuring longevity
