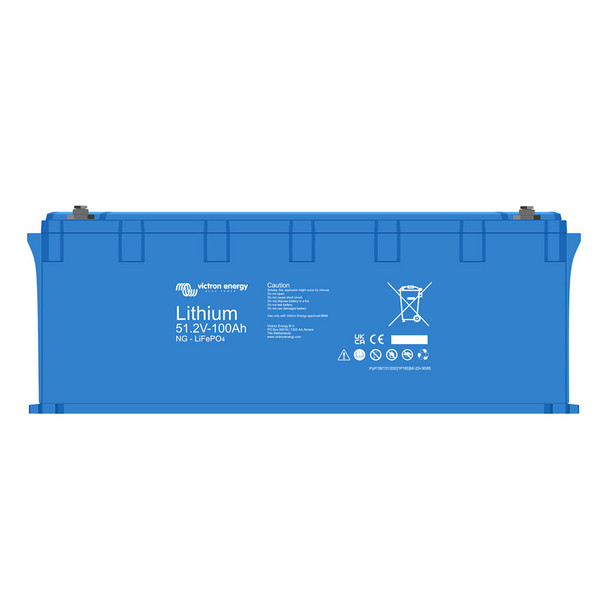

Lithium Battery 48VDC 100Ah NG Smart LifePO4
The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.
Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.
Integrated shunt
The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.
Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal
All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.
Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.
Easy bracket mounting
Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.
Increased ingress protection (IP-rating)
The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.
Low self-discharge rate
The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.
Features:
- Multiple improvements including added read-out of cell voltages and temperatures
- Maximum single bank size increased to 385kWh
- Modules available in 12, 24 and 48V
- Protection class IP65
- Bracket mounting and strap mounting
The Victron Energy Lithium Battery 48V 100Ah NG Smart LifePO4 is an advanced energy storage solution designed for demanding applications requiring high performance and dependability. Part of the Next Generation (NG) series, this lithium iron phosphate (LiFePO4) battery builds upon the successful Lithium Smart Series, incorporating significant enhancements such as improved cell monitoring and increased capacity. Engineered for versatility, the NG series batteries can be connected in series, parallel, or series/parallel configurations to create a customizable power bank suitable for 12V, 24V, or 48V systems. With a maximum system capacity of up to 385kWh, this battery provides substantial energy storage for diverse off-grid and backup power applications. It features a robust IP65 ingress protection rating, making it resistant to dust and low-pressure water jets, suitable for outdoor or challenging environments. The integrated shunt transmits real-time voltage, current, and temperature data to the BMS, enabling precise monitoring and control through the VictronConnect app, a GX device, or the VRM Portal. The BMS automatically detects system configurations, simplifying installation and ensuring optimal operation. Mounting brackets facilitate secure installation and prevent slipping or tipping, while the low self-discharge rate of 2% per month enhances longevity and reliability. This battery's firmware updates automatically, maintaining optimal performance over time. Designed with user convenience and safety in mind, the Victron Lithium NG battery offers an innovative solution for those seeking a sophisticated, scalable, and durable energy storage system. Whether used for solar, RV, marine, or backup power, this product ensures dependable operation and seamless integration into existing setups. Please consult your dealer for support, repairs, or returns related to this product.
Features:
- Enhanced cell monitoring with read-out of voltages and temperatures for improved safety and maintenance
- Maximum single bank size increased to 385 kWh for larger energy storage needs
- Available in 12V, 24V, and 48V modules to suit various system requirements
- Robust IP65 protection rating, suitable for outdoor and dusty environments
- Easy mounting brackets for secure and straightforward installation
- Automatic system detection for simplified setup and management
- Integrated Bluetooth for real-time monitoring via VictronConnect app
- Supports series, parallel, and series/parallel configurations for flexible system design
- Low self-discharge rate of 2% per month for enhanced longevity
- Automatic firmware updates ensure optimal performance over time
