Lynx Power-In Class-T M10 Terminals

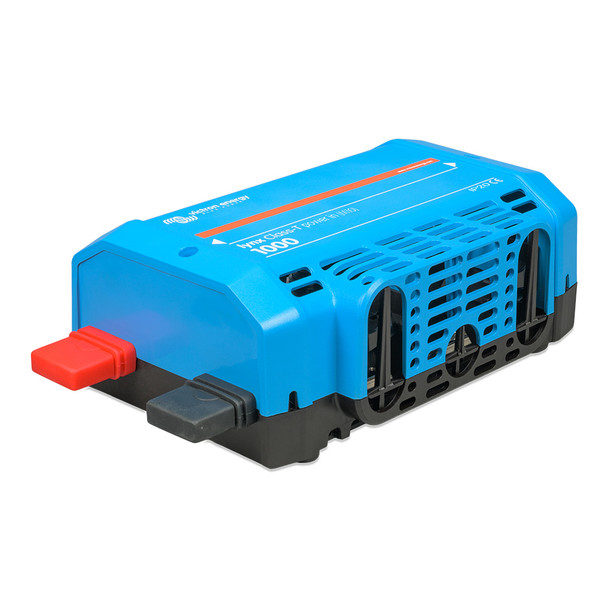

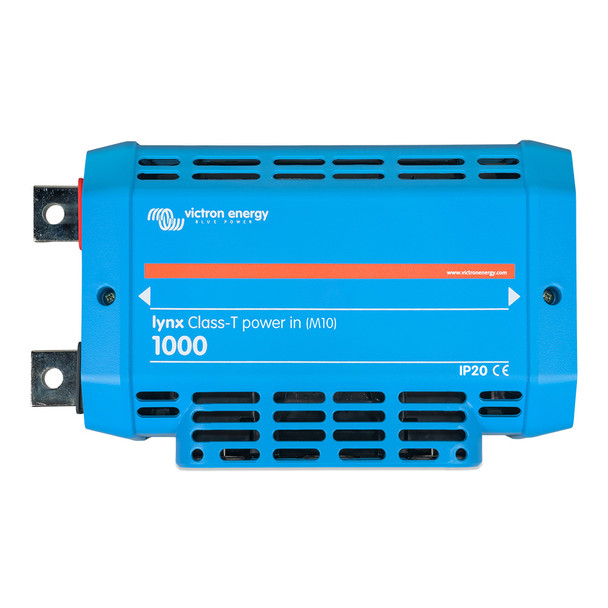

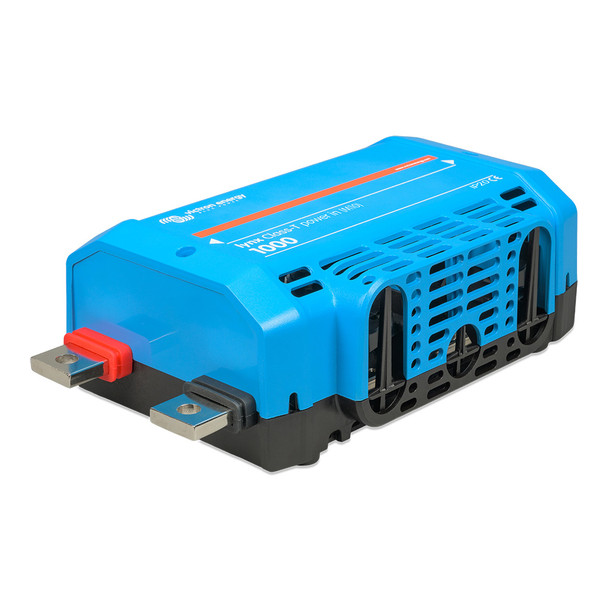

The Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).

For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.

The Lynx Distribution System Consists of the Following Parts

Lynx Power In

A positive and negative busbar with four batteries or DC equipment connections.

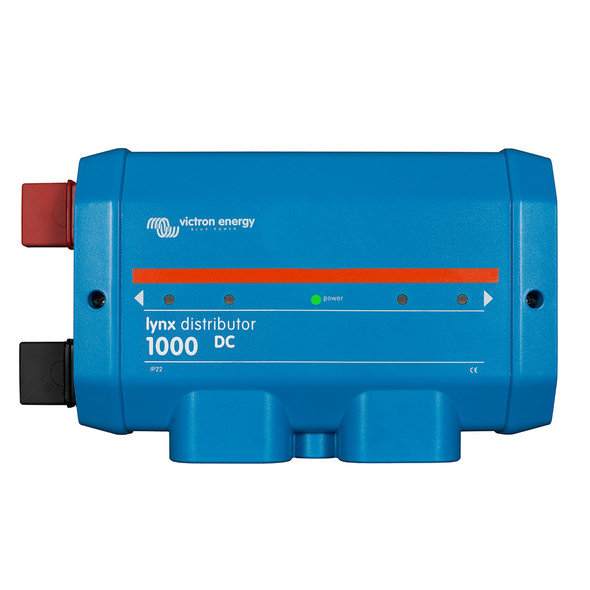

Lynx Distributor

A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.

Lynx Shunt VE.Can

A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

Lynx Smart BMS

For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.

It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.

Specifications

Power:

• Voltage Range: 9 - 60Vdc


• Current Rating: 1000Adc continuous


• Connections: M10


• Busbar: 3/8

Physical:

• Enclosure Material: ABS


• Enclosure Dimensions (H x W x D): 279 x 169 x 97mm


• Unit Weight: 2.1 kg


• Busbar Material: Tinned copper


• Busbar Dimensions (H x W): 8 x 30mm

Environmental:

• Operating Temperature Range: -40C to +60


• Storage Temperature Range: -40C to +60


• Humidity: Max. 95% (non-condensing)


• Protection Class: IP20

The Victron Energy Lynx Power-In Class-T M10 Terminals are essential components for integrating and managing multiple lithium battery strings within your DC system. Designed with high-current capacity and robust construction, these terminals facilitate seamless connection and fusing of up to two battery strings, ensuring reliable power distribution. Featuring positive and negative busbars, connection points for two Class-T fuses (sold separately), and a grounding connection, the Lynx Power-In simplifies complex battery configurations and enhances system safety. Its compatibility with the broader Lynx Distribution System makes it a versatile choice for expanding or upgrading energy setups. Constructed from durable ABS with tinned copper busbars, the unit is built to withstand demanding environments, with an IP20 protection rating suitable for indoor applications. The compact design and lightweight profile make installation straightforward, while the versatile voltage range from 9 to 60V DC supports a variety of lithium battery chemistries. The Lynx Power-In is also compatible with multiple Lynx modules, allowing for scalable and modular energy management solutions. It integrates effortlessly with Victron's monitoring tools through VE.Can communication, providing real-time insights into system performance via VictronConnect App or GX devices. This product is ideal for advanced off-grid, renewable energy, or battery backup systems requiring reliable, high-current connections with integrated fusing and monitoring. For systems with three or more battery strings, multiple Lynx Power-In modules are recommended to ensure optimal performance. Please consult your Victron dealer for support, repairs, or returns to maintain system integrity and safety.

Features:

• High current capacity: 1000A continuous current rating for demanding lithium battery applications

• Dual busbars: Positive and negative busbars for efficient power distribution

• Fusing connections: Supports two Class-T fuses (sold separately) for enhanced safety and protection

• Grounding: Dedicated connection for system grounding ensuring safety compliance

• Modular compatibility: Seamlessly integrates with the Victron Lynx Distribution System and other Lynx modules

• Durable construction: ABS enclosure and tinned copper busbars for longevity and corrosion resistance

• Compact and lightweight: Easy to install in tight spaces with minimal weight

• Wide voltage range: Supports systems from 9V to 60V DC for versatile battery configurations

• Monitoring capabilities: VE.Can communication for remote monitoring via VictronConnect App and GX devices

• Environmentally resilient: Designed for indoor use with an IP20 rating and operation across -40°C to +60°C
