Description

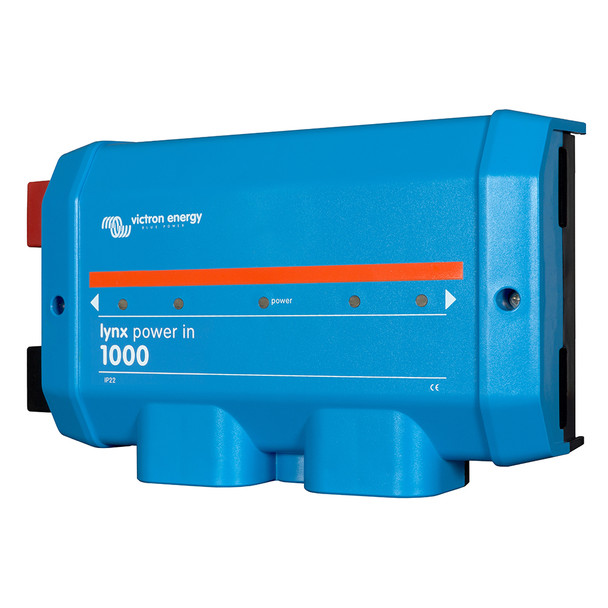

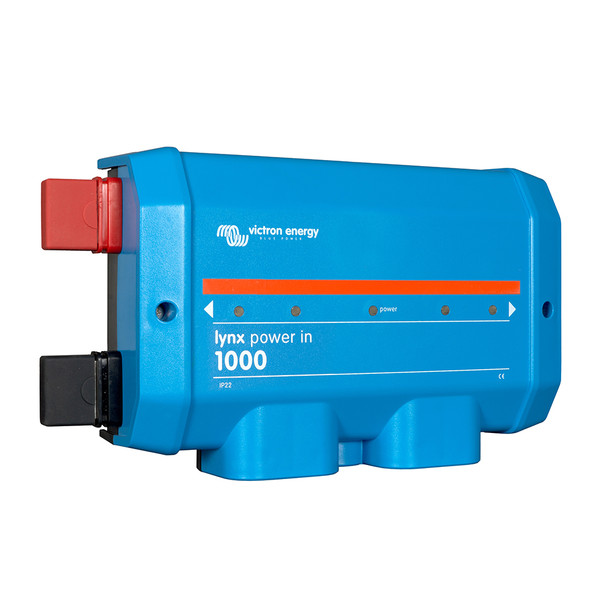

Lynx Power-In
The lynx power in module is used to connect batteries via an external fuse. It can be useful if you have multiple parallel strings. Due to the extremely high short circuit current potential of most battery banks, it is suggested to use an external fuse system with an appropriate fault current interruption rating (such as an NH HRC).

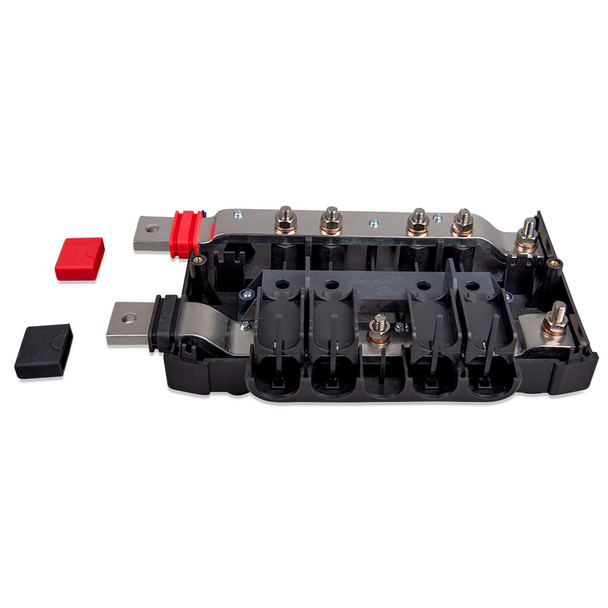

The Power In contains a negative and positive DC bus-bar with M8 bolts in which to connect batteries cables. It can take cables up to 22 mm in diameter through the bottom entry guides, and no limit via the two side connections.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Victron Energy Lynx Power-In module is a versatile and essential component designed to facilitate safe and efficient battery connections in complex power systems. It features both a negative and positive DC bus-bar with M8 bolts, allowing reliable connections for cables up to 0.87 inches in diameter through bottom entry guides, with additional capacity via side connections. This makes it ideal for systems with multiple parallel battery strings, ensuring a secure and organized connection point for your power setup. The module's robust construction and high current handling capabilities make it suitable for demanding applications where safety and reliability are paramount. It is recommended to use an external fuse system with an appropriate fault current interruption rating, such as an NH HRC fuse, to protect against the high short circuit currents typical of large battery banks. Proper fuse protection helps prevent damage and enhances overall system safety, especially during fault conditions. The Lynx Power-In is engineered for ease of installation and maintenance, with clearly accessible connection points that streamline wiring processes. For detailed installation instructions and safety information, refer to the owner’s manual available online. This product is backed by Victron Energy's warranty, ensuring quality and support for your power system. Please note that this product contains chemicals known to the State of California to cause cancer, birth defects, or reproductive harm, and appropriate precautions should be taken during handling and installation. For more information, visit P65Warnings.ca.gov. For any returns, repairs, or support issues related to this product, contact your authorized dealer to ensure proper assistance. Designed to integrate seamlessly into your power system, the Victron Lynx Power-In provides a reliable foundation for battery management and distribution, making it an excellent choice for renewable energy, backup power, and industrial applications.
Features:
- Dual DC bus-bars with M8 bolts for secure battery connections
- Supports cables up to 0.87 inches (22 mm) in diameter through bottom entry guides
- Side connection points for flexible wiring options
- Designed for connecting multiple parallel battery strings
- Requires external fuse system with appropriate fault current interruption rating
- Robust construction suitable for high current applications
- Easy to install and maintain with accessible connection points
- Backed by Victron Energy warranty
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/82842OM.pdf |
