Lynx Shunt VE.Can (M10)

Busbar Integrated Battery Monitoring

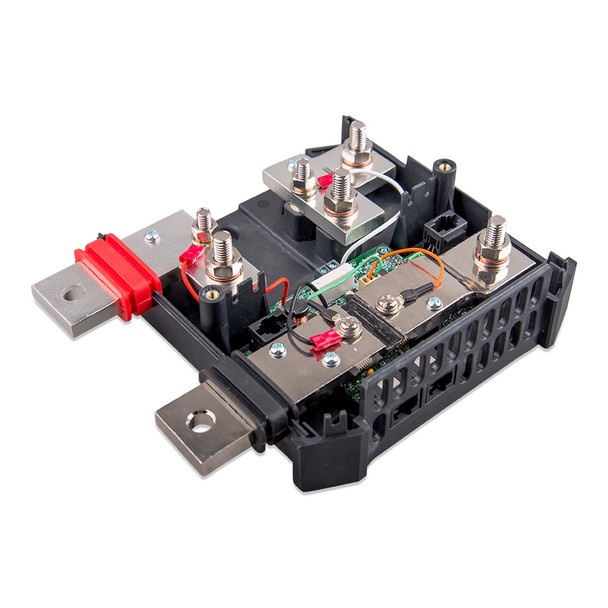

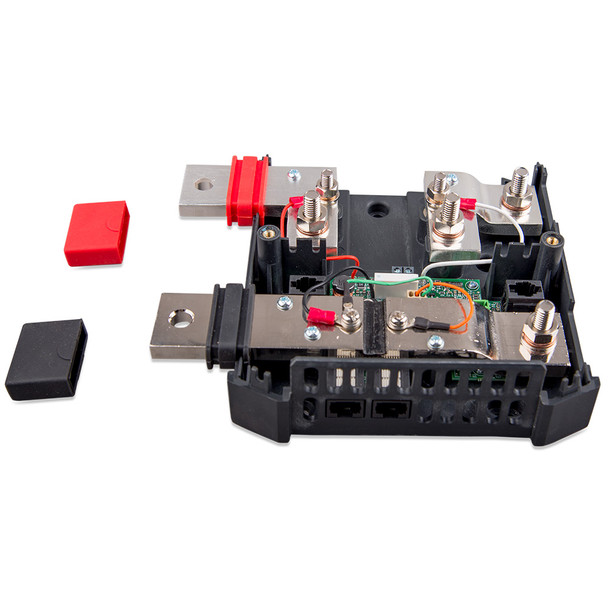

The Lynx Shunt VE.Can contain a positive and negative busbar, a battery monitor, and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED. The Lynx Shunt VE.Can can communicate via VE.Can with a GX device.

The Lynx Shunt VE.Can ship with two RJ45 VE.Can terminators, be used when connecting to a GX device.

The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system incorporating DC connections, distribution, fusing, battery monitoring, and Lithium battery management.

The Lynx Distribution System Consists of the Following Parts:

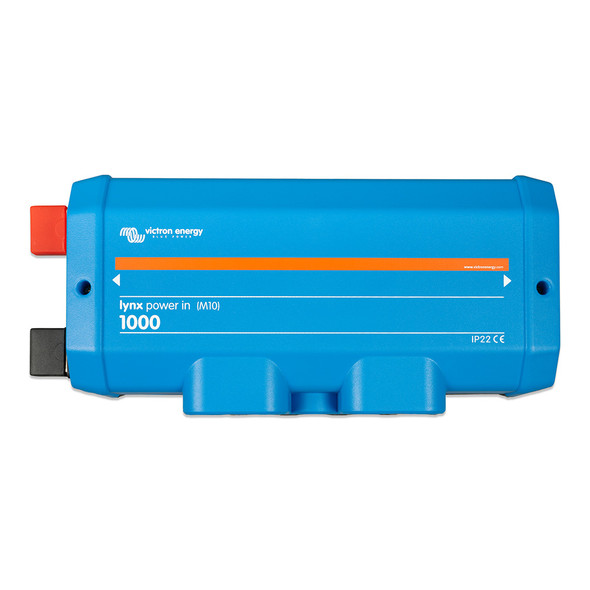

• Lynx Power In - A positive and negative busbar with 4 batteries or DC equipment connections.


• Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring


• Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device

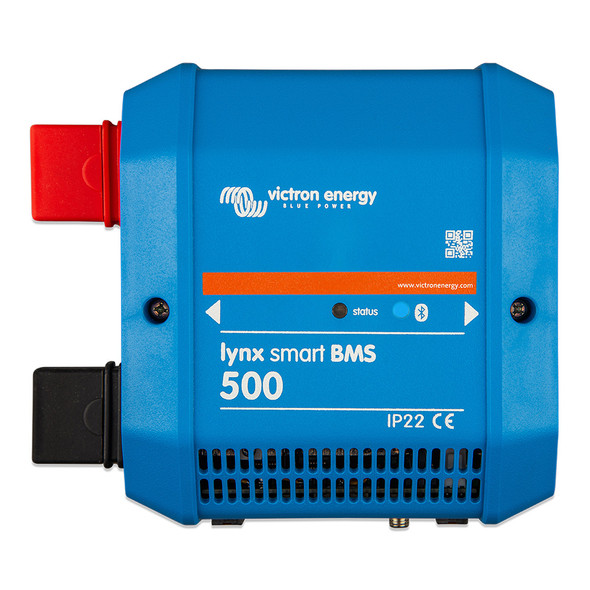

• Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal

Specifications:

Power:

• Supply Voltage Range: 9 - 70 Vdc


• Supported System Voltages: 12, 24 or 48V


• Reverse Polarity Protection: No


• Current Rating: 1000Adc continuous


• Power Consumption: 60mA @ 12V, 33mA @ 24V, 20mA @ 48V


• Potential Free Alarm Contact 3A, 30Vdc, 250Vac

Connections:

• Busbar: M8


• Fuse: M8


• VE.Can: RJ45 and RJ45 terminator


• Power Supply Connection to Lynx Distributor: RJ10 (an RJ10 cable ships with each Lynx Distributor)


• Temperature Sensor: Screw terminal


• Relay: Screw terminal


Physical:

• Enclosure Material: ABS


• Enclosure Dimensions (H x W x D): 190 x 180 x 80 mm


• Unit Weight: 1.4 kg


• Busbar Material: Tinned copper


• Busbar Dimensions (H x W): 8 x 30 mm

Environmental

• Operating Temperature Range: -40C to +60


• Storage Temperature Range: -40C to +60


• Humidity: Max. 95% (non-condensing)


• Protection Class: IP22

Please contact your dealer for any returns, repairs or support issues related to this product.

The Victron Energy Lynx Shunt VE.Can (Part Number: LYN040102110) is an advanced busbar designed for efficient battery management within the Lynx Distribution System. It features a positive and negative busbar, a dedicated battery monitor, and a fuse holder for the main system fuse, enabling seamless integration for DC power systems. The Lynx Shunt VE.Can communicates via VE.Can protocol with GX devices, providing real-time monitoring and setup capabilities. It ships with two RJ45 VE.Can terminators, facilitating straightforward connection to compatible GX controllers, and supports a CNN fuse (sold separately) for system protection. This component is ideal for users seeking a modular and scalable power distribution solution with integrated battery monitoring capabilities.

The Lynx Shunt VE.Can is constructed with high-quality materials, including a tinned copper busbar and durable ABS enclosure. It supports system voltages of 12, 24, or 48 volts DC, with a continuous current rating of 1000 amps, making it suitable for demanding applications. The device features multiple connection points, including M8 busbar and fuse connections, RJ45 for VE.Can communication, and screw terminals for temperature sensors and relays. Its compact design measures approximately 8 inches in height, 7 inches in width, and 3 inches in depth, with a weight of about 1.4 kg, ensuring ease of installation in various settings. The Lynx Shunt VE.Can is built to operate reliably across a wide temperature range from -40°C to +60°C, and it has an IP22 protection rating, making it suitable for indoor environments. Its low power consumption ensures minimal impact on system efficiency, consuming just 60 mA at 12V. This versatile component is essential for anyone assembling or maintaining a modular battery distribution system, offering robust features such as potential-free alarm contacts and compatibility with Victron’s monitoring ecosystem. For detailed installation instructions and additional information, refer to the official owner’s manual available online.

Features:

• Integrated busbar with positive and negative connections for DC systems

• Supports system voltages of 12V, 24V, and 48V with a 1000A continuous current rating

• VE.Can communication protocol for seamless integration with GX devices

• Includes fuse holder and space for a CNN fuse (sold separately) for system protection

• Durable ABS enclosure with tinned copper busbar for corrosion resistance

• Multiple connection options: M8 busbar and fuse connections, RJ45 for VE.Can, screw terminals for sensors and relays

• Compact design with approximately 8 inches in height, 7 inches in width, and 3 inches in depth

• Operational in temperatures from -40°C to +60°C with an IP22 rating for indoor use

• Low power consumption ensuring system efficiency

• Supports potential-free alarm contact up to 3A at 30Vdc or 250Vac
