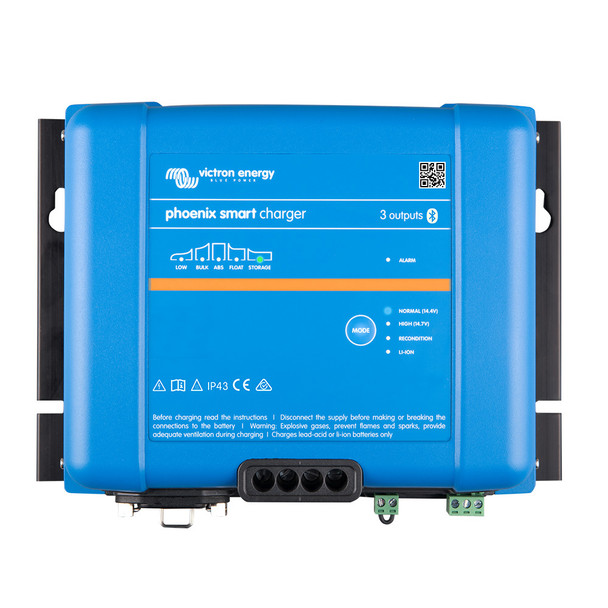

Victron Energy Phoenix Smart IP43 Charger 24/25 (3) 120-240VAC with Bluetooth Monitoring

Phoenix Smart IP43 Charger 24/25 (3) 120-240VAC Requires 5-15P Mains Cord

With boat owners in mind, this adaptive 5-step charger can provide either 30A or 50A of charge to each of the three battery banks. Or the Phoenix 1+1 model provides 3A to the starter battery, the rest to the house bank. 24V models are available with a 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone.

Features:

• Bluetooth Smart built-in: The wireless solution to set up, monitor, update and synchronize Phoenix Smart IP43 Chargers.


• Phoenix Smart (1+1): two outputs to charge 2 battery banks: The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery.


• Phoenix Smart (3): three full current outputs to charge 3 battery banks: Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger.


• Automatic voltage compensation: The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases.


• Adaptive 6-stage charge algorithm: bulk absorption recondition float storage refresh: The Phoenix Smart Charger features our well-known adaptive battery management system that can be preset to suit different types of batteries. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.


• The right amount of charge: variable absorption time: When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery will be fully charged.


• Preventing damage due to excessive gassing: the BatterySafe mode: If in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.


• Less maintenance and aging when the battery is not in use: the Storage Mode: The Storage Mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the Storage Mode, float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to equalize the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.


• Also charges Li-ion (LiFePO4) batteries: Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Alternatively, full control of voltage and current can be achieved with Bluetooth.


• Fully programmable charge algorithm: The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three preprogrammed algorithms can be selected with the mode button.


• Optional external battery voltage and temperature sensing via Bluetooth: A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more Phoenix Smart IP43 Chargers.


• Remote on-off: The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low.


• VE.Direct interface: For a wired data connection to a Color Control panel, PC, or other devices.


• Programmable relay: Can be programmed using the VE.Direct interface or a Bluetooth-enabled device to trip on an alarm or other events.


• Synchronized charging: Pairing two or more Phoenix Smart IP43 Chargers in a VE.Smart Network, enables synchronized charging. This improves the charge efficiency and battery life.

The Victron Energy Phoenix Smart IP43 Charger 24/25 (Part Number: PSC242553095) is a versatile and adaptive multi-stage battery charger designed for marine, RV, and off-grid applications. It features a robust 3-output configuration capable of delivering up to 50A to each of three battery banks, or a combined supply that can be tailored to your specific needs. The charger is compatible with both 12V and 24V battery systems, offering flexible solutions for various power setups. Its built-in Bluetooth Smart technology allows remote monitoring, configuration, and updates via your smartphone, enabling seamless management of your battery system from anywhere.
The Phoenix IP43 includes an intelligent 6-stage charging algorithm that optimizes battery health and longevity. Stages such as bulk, absorption, recondition, float, storage, and refresh work together to ensure batteries are charged efficiently and safely. Features like automatic voltage compensation account for voltage drops in cabling, maintaining consistent charge levels. The adaptive charging process automatically adjusts absorption times based on discharge levels, preventing overcharging during shallow discharges and ensuring full charge after deep discharges. The BatterySafe mode protects batteries from excessive gassing during high current charging, while the Storage Mode minimizes gassing and corrosion when batteries are unused for extended periods.
Compatibility with Lithium-ion (LiFePO4) batteries is integrated, with remote on-off control options and Bluetooth-enabled full voltage and current management. External sensors for voltage and temperature can be connected via Bluetooth, providing real-time data to enhance charging precision. The charger also supports remote switching via dedicated terminals and features a VE.Direct interface for wired communication with control panels or PCs. Multiple units can be synchronized in a VE.Smart Network, improving overall charging efficiency and extending battery life. The compact design includes detailed user manuals and is suitable for a wide range of marine and renewable energy applications, making it a reliable choice for those seeking advanced, customizable battery management solutions. Please refer to the included manual for installation and operation details, and contact your dealer for support or repairs.

Features:

• Bluetooth Smart built-in: Enables wireless setup, monitoring, and firmware updates via smartphone

• Phoenix Smart (1+1): Two outputs to charge 2 battery banks, with a dedicated 3A output for starter batteries

• Phoenix Smart (3): Three full current outputs for three battery banks, with a combined current limit

• Automatic voltage compensation: Maintains consistent charging despite voltage drops

• Adaptive 6-stage charge algorithm: Optimizes charging based on battery type and usage

• Variable absorption time: Adjusts based on discharge depth to prevent overcharging

• BatterySafe mode: Limits gassing during high current charging to protect batteries

• Storage Mode: Reduces float voltage after 24 hours of inactivity to prevent battery damage

• Li-ion (LiFePO4) compatible: Supports lithium batteries with remote control options

• Fully programmable charge algorithms: Customizable via Bluetooth or VE.Direct interface

• External Bluetooth sensors: Monitor voltage and temperature for precise charging

• Remote on-off control: Connect external switches or relays for remote operation

• VE.Direct interface: Wired communication with control panels and PCs

• Programmable relay: Custom alarm and event triggers

• Synchronized charging: Pair multiple chargers in a VE.Smart Network for enhanced performance
