Description

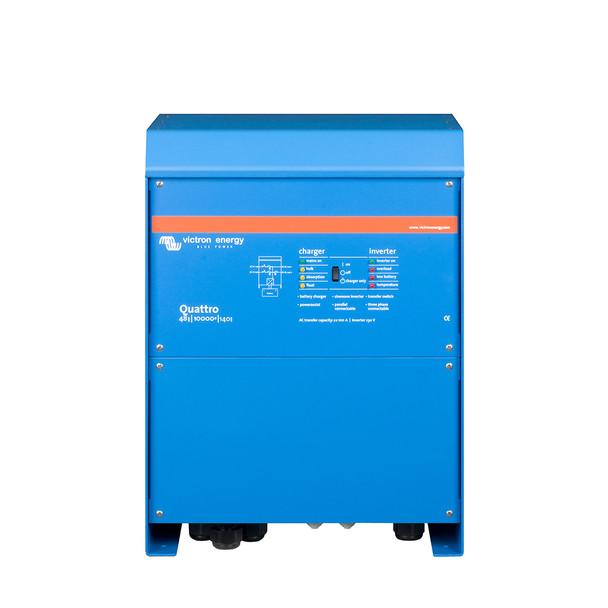

Quattro 48/10000/140-100/100 - 230V - +50A Aux VE.Bus
The Victron Energy Quattro Inverter/Charger has 2 AC inputs with an integrated transfer switch, 2 AC Outputs, a unique PowerAssist feature, and virtually unlimited power thanks to parallel operation. Models range from 3kVA to 15kVA per module.
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple systems integration features such as three or split-phase operation and parallel operation.
Two AC inputs with integrated transfer switch
The Victron Energy Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source.
Two AC Outputs
The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Victron Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique PowerAssist feature
The Victron Energy Quattro will prevent the overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation
Up to 6 Victron Quattros can operate in parallel to achieve higher power output. Three-phase or split phase operation is also possible.
Please contact your dealer for any returns, repairs or support issues related to this product.The Victron Energy Quattro 48/10000/140-100/100 is a versatile and robust inverter/charger designed for demanding power applications. Equipped with two AC inputs featuring an integrated transfer switch, it seamlessly switches between shore power and generator sources, ensuring continuous power supply without interruption.
Its dual AC outputs include a no-break main outlet that automatically supplies power during grid or source failures, providing critical reliability for sensitive electronic equipment. The second output is selectively live, allowing connection to loads that should not drain the battery, such as water heaters or air conditioning units. The true sine wave inverter guarantees clean power for sensitive electronics, while adaptive charging ensures efficient recharging of batteries under various conditions.
The Quattro’s unique PowerAssist feature enhances system capacity by boosting output power from the battery during overload situations, preventing system shutdowns. Additionally, the ability to operate multiple units in parallel or in three-phase configurations allows for scalable power solutions up to six modules, making it suitable for both residential and commercial installations requiring high power levels. Its hybrid technology and system integration features make the Quattro an ideal choice for complex energy setups where reliability and flexibility are essential.
Designed with durability in mind, the Victron Quattro is built to support large-scale operations with ease. Its compatibility with various power sources and expansion options offers a comprehensive solution for off-grid, backup, or hybrid power systems. For detailed installation and operation instructions, refer to the owner’s manual available online.
Features:
- Two AC inputs with integrated transfer switch for automatic source switching
- Dual AC outputs with no-break transfer for continuous power supply
- True sine wave inverter for clean, reliable power
- Adaptive charging for efficient battery management
- PowerAssist technology to prevent overloads and boost power output
- Parallel and three-phase operation capabilities for scalable power solutions
Details
truck_freight: |
Yes |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/96232OM.pdf |
