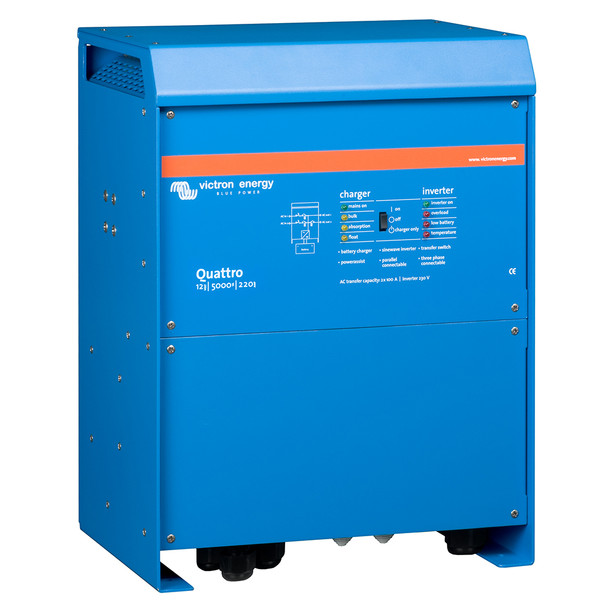

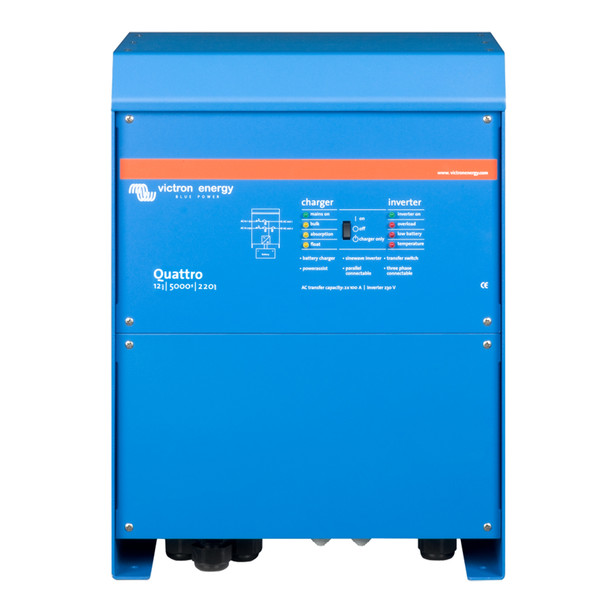

Victron Energy Quattro Inverter/Charger 12 VDC - 5000W with Dual 120VAC Inputs and Auto Transfer Switch

Quattro Inverter/Charger 12 VDC - 5000W - 200AMP Battery Charger - 50AMP Transfer Switch

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Features:

• Two AC Inputs two AC Outputs - The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.


• Unique PowerAssist feature - The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.


• Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.


• Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Quattro Inverter/Charger model QUA125021100 is a versatile and powerful solution designed for reliable energy management in off-grid or backup power systems. With a continuous power output of 5,000 watts and a 200-amp battery charger, this unit ensures your critical loads stay powered even during grid outages. Its dual AC inputs and outputs allow seamless switching between power sources such as shore power and generators, providing uninterrupted service with less than 20 milliseconds transfer time that keeps sensitive electronics running smoothly.

The Quattro features a unique PowerAssist technology that prevents overloads by automatically reducing battery charging during high load conditions and boosting power supply from the battery when needed. This capability enhances system stability and efficiency, especially when operating with limited AC power sources like small generators or shore connections. Additionally, up to six units can be parallel-connected to increase total power capacity, and the system supports three-phase or split-phase configurations for advanced applications.

Remote monitoring and control are simplified through Victron’s VRM platform, accessible via smartphone, tablet, or computer. Using free apps and web portals, users can oversee system performance, adjust settings, or set geofences from anywhere in the world. The unit is compatible with Color Control GX or Venus GX for more detailed system management, making it suitable for complex or large-scale installations. Please note, this product ships via truck freight due to its size and weight, and it does not qualify for shipping promotions. For detailed operation instructions, refer to the owner's manual linked online. As with all electrical equipment, proper handling and installation are crucial for safety and performance.

Features:

• Dual AC Inputs and Outputs: Connect to two independent AC sources with automatic switching for seamless power transfer.

• No-break Transfer: Transfers power in less than 20 milliseconds to protect sensitive electronics during grid or generator failure.

• PowerAssist Technology: Prevents overloads by reducing battery charging and boosting AC output from the battery when necessary.

• Parallel Operation: Supports up to 6 units for increased power capacity, with options for three-phase or split-phase configurations.

• Remote Monitoring and Control: Manage your system remotely via Victron VRM app and portal from any device with internet access.
