Description

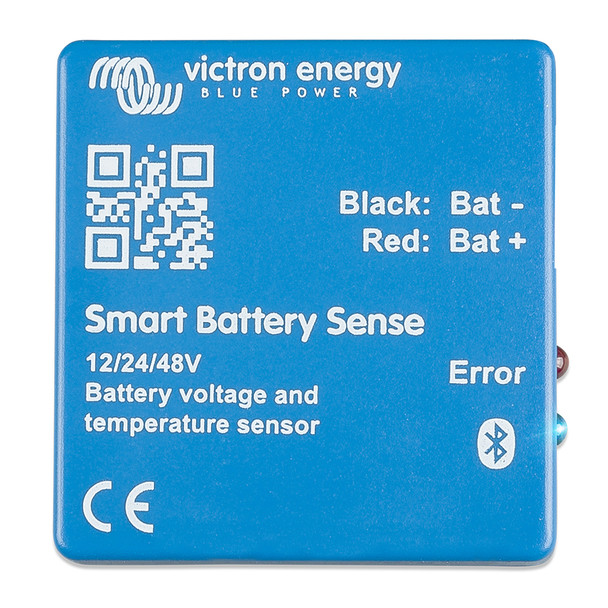

Smart Battery Sense Long Range (Up to 10M)
The VE.Bus Smart dongle is a Bluetooth Smart enabled VE.Bus interface, with battery temperature-and-voltage sensing. It communicates system information straight to your smart phone - using the free-to-use VictronConnect app. When used with Multi- inverter/chargers the dongle provides on-battery temperature and voltage sensing capabilities - allowing compensation for possible cable losses which can occur during charging and discharging. Temperature sensing allows accurate temperature-compensation during battery charge cycles. The dongle is, at present, the only way to add an on-battery sensing capability to the MultiPlus-II models, if they are not also connected to a GX device and CANbus battery.
The dongle can be used in systems with or without a GX device - such as the CCGX. In systems with a GX device, and another source of temperature and voltage data (eg from a CANbus battery), the CCGX data will override temperature and voltage information from the dongle. In this role the dongle will still provide live-information via its VictronConnect interface; and it will provide firmware updates without requiring an internet connection.
When the dongle is used in systems which do not have a GX device, the dongle's voltage and temperature data becomes the primary source of that information, and can be used by other connected devices for voltage compensation.
In systems with a Multiplus-II, dongle and GX device, but no other source of temperature and voltage, the data from the dongle will also be used.
At this time, the VE.Bus Smart dongle cannot send its temperature and voltage data as part of a VE.Smart network.
The VE.Bus Smart dongle is able to sense battery temperature in two ways: The default method is the dongle's on-board temperature sensor. When the dongle is mounted directly onto the battery case (using its adhesive attachment) it will sense the battery temperature directly from the battery casing. The second method - which provides improved battery temperature sensing - is available by using an optional battery-terminal mounted sensor. When this sensor is connected, the default sensor is overridden and the dongle will use this method instead.
What's in the Box
- VE.Bus Smart Dongle
- Red battery (+) connection wire with 10mm eyelet and inline fuse.
- Black battery (-) connection wire with 10mm eyelet
- Connector block with screw terminals
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Victron Energy SBS050150200 Smart Battery Sense Long Range is a Bluetooth Smart-enabled device designed to provide precise battery temperature and voltage monitoring for your energy system. With a communication range of up to 10 meters, it seamlessly transmits real-time system data directly to your smartphone via the free VictronConnect app, offering convenient remote monitoring. This sensor enhances system performance by allowing accurate temperature compensation during charging cycles, which optimizes battery longevity and efficiency. The device is compatible with Multi-inverter/chargers and can be integrated into systems with or without a GX device, such as the CCGX, making it a flexible solution for various installation configurations. When used with a GX device, the Smart Battery Sense works alongside other data sources, with system information taking precedence, while still providing live updates and firmware updates without requiring internet access. In systems without a GX device, the sensor becomes the primary source of voltage and temperature data, enabling connected devices to perform precise voltage compensation for optimal performance. The Smart Battery Sense can measure battery temperature through its onboard sensor or an optional battery-terminal mounted sensor, which offers improved accuracy by sensing temperature directly from the battery case. The package includes the Smart Battery Sense unit, red and black connection wires with eyelets and inline fuse, and a connector block with screw terminals for secure installation. Designed for durability and ease of use, this device is ideal for maintaining battery health and system reliability in various energy setups. For warranty details and support, please refer to the provided link. Please note, this product may contain chemicals that pose health risks in certain regions, and proper handling is advised. Contact your dealer for support, repairs, or returns related to this product.
Features:
- Bluetooth Smart enabled for remote monitoring via VictronConnect app
- Wireless communication range up to 10 meters
- Provides real-time battery temperature and voltage data
- Supports on-battery temperature compensation during charging
- Compatible with Multi-inverter/chargers and various system configurations
- Can be used with or without a GX device, with data override options
- Offers dual temperature sensing methods: onboard sensor and optional terminal-mounted sensor
- Includes connection wires with inline fuse and connector block for easy installation
- Firmware updates available without internet connection
- Designed for durability and ease of integration into energy systems
